Ordering code
Specification
| Model | 3VJZF-10/15 | 3VJZF-20/25 | 3AJZF-10/15 | 3AJZF-20/25 |
| Working Medium | Air | |||
| Operation | Stop Type | |||
| Orifice | 16 mm | 25 mm | 16 mm | 25 mm |
| Port Size | 3/8″, 1/2″ | 3/4″, 1″ | 3/8″, 1/2″ | 3/4″, 1″ |
| Working-pressure | 0～10 Bar | |||
| Max. Test Pressure | 15 Bar | |||
| Operating Voltage Tolerance | ±10% | |||
| Material of Body | Aluminum | |||

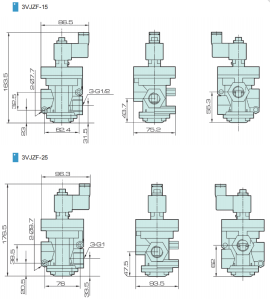

3VJZF Dimension
