ADNGF Series

ADNGF

ADNGF Series

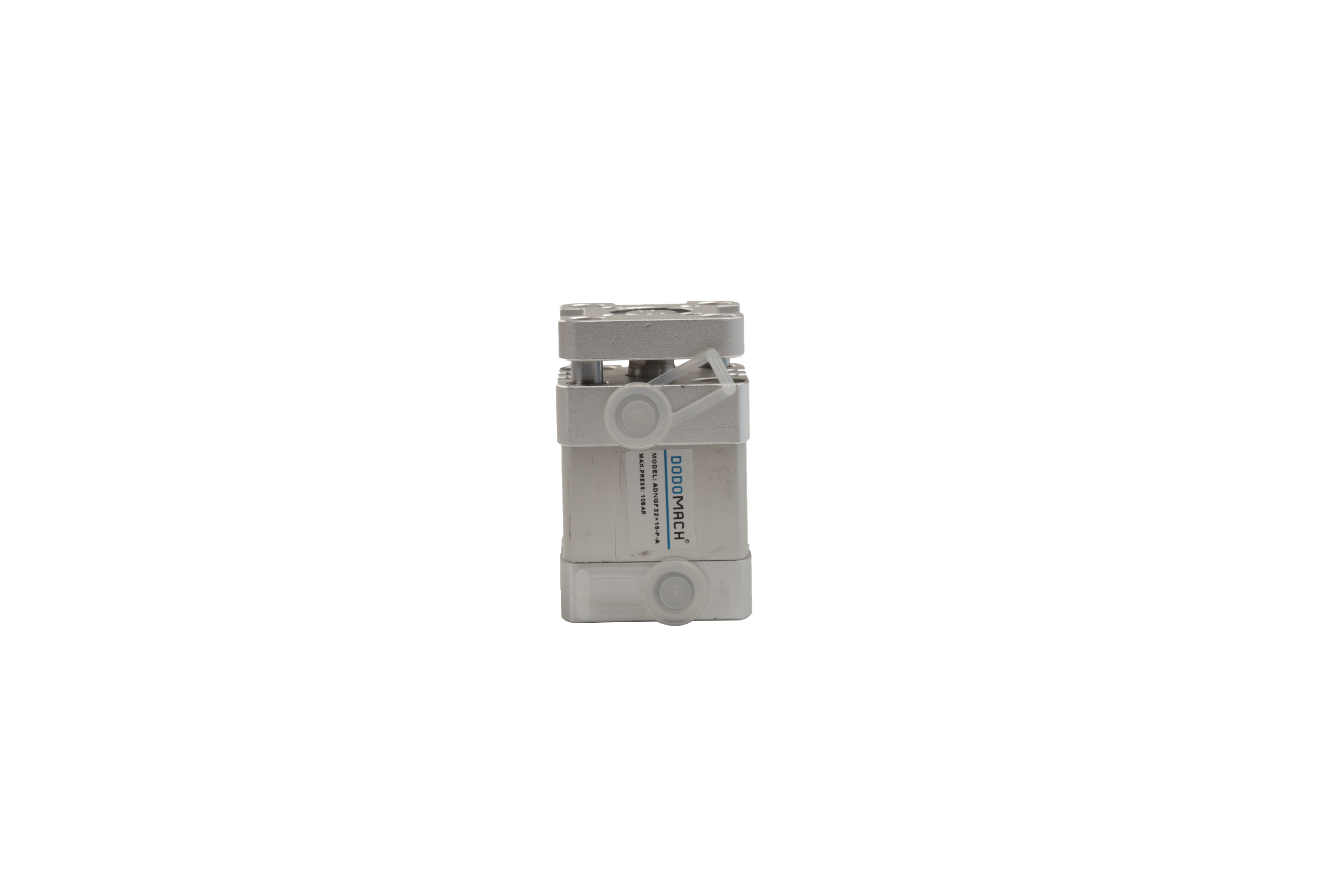

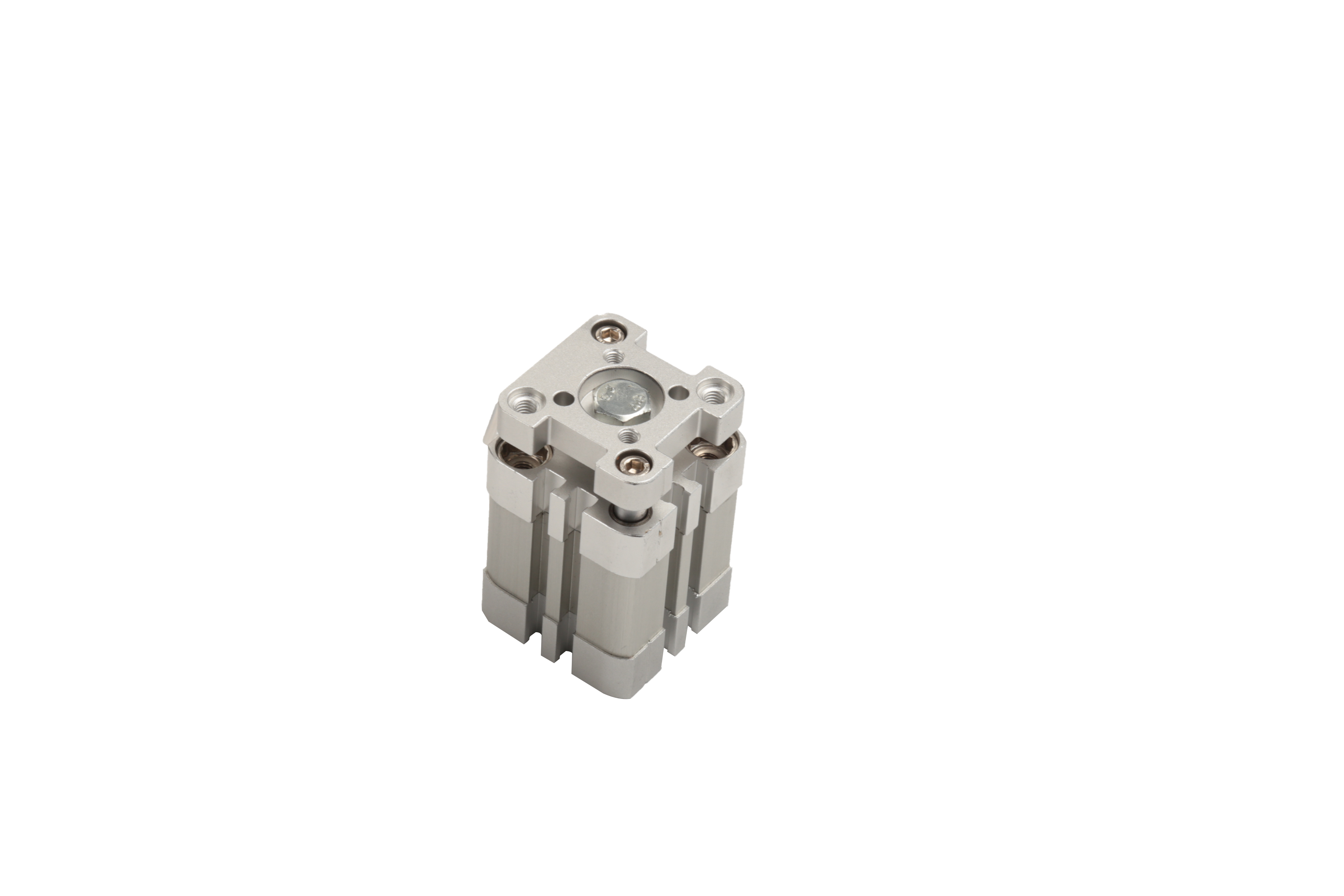

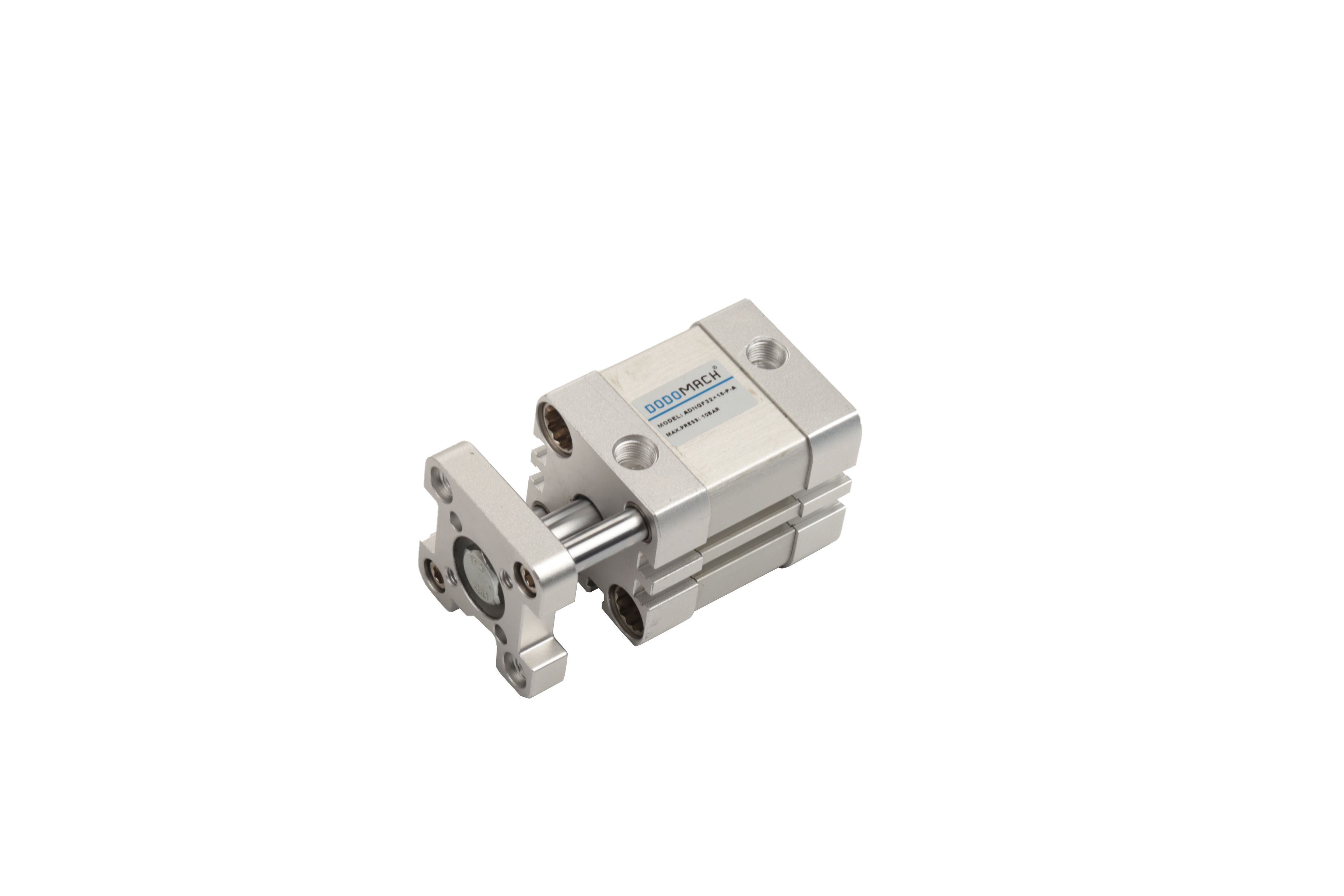

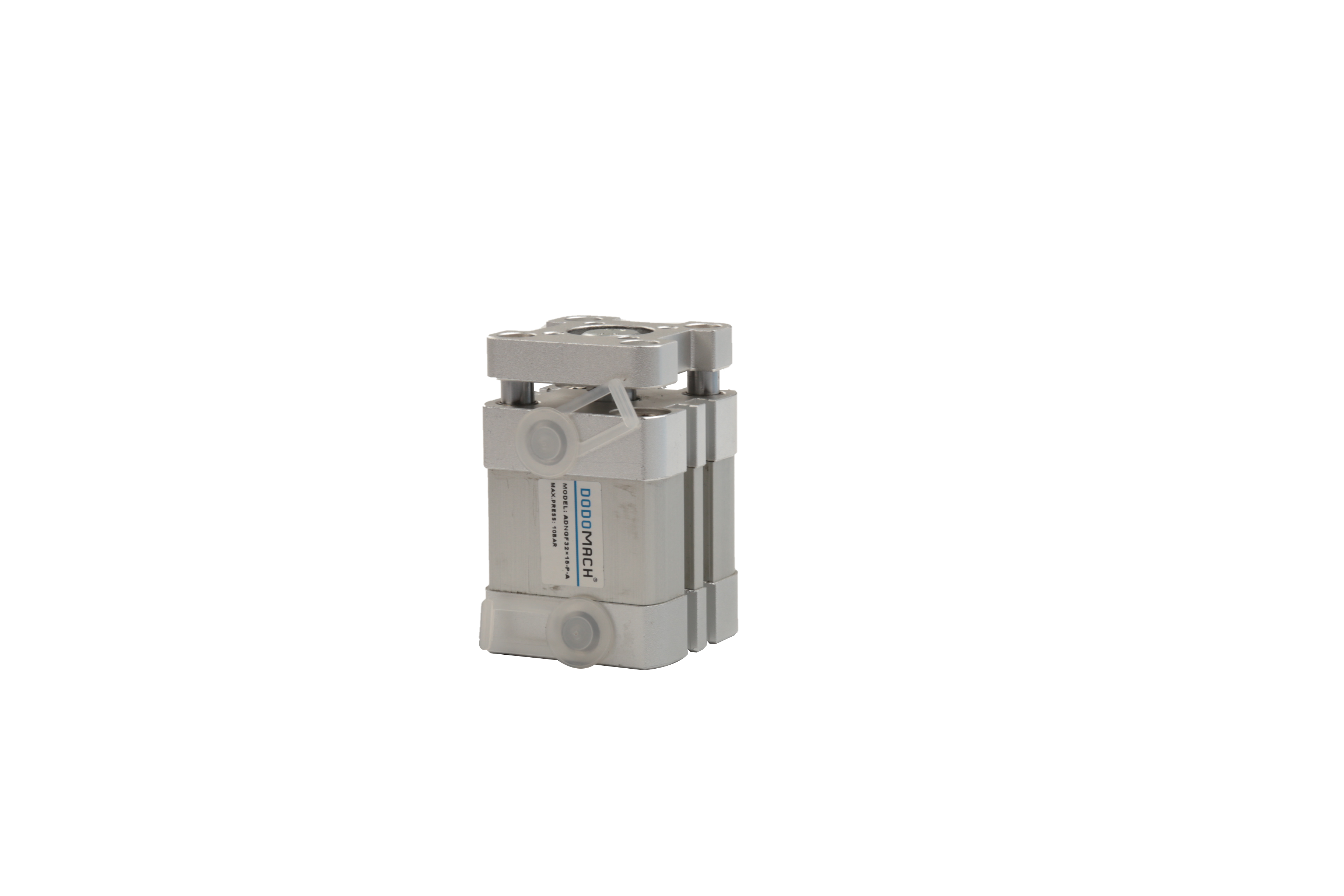

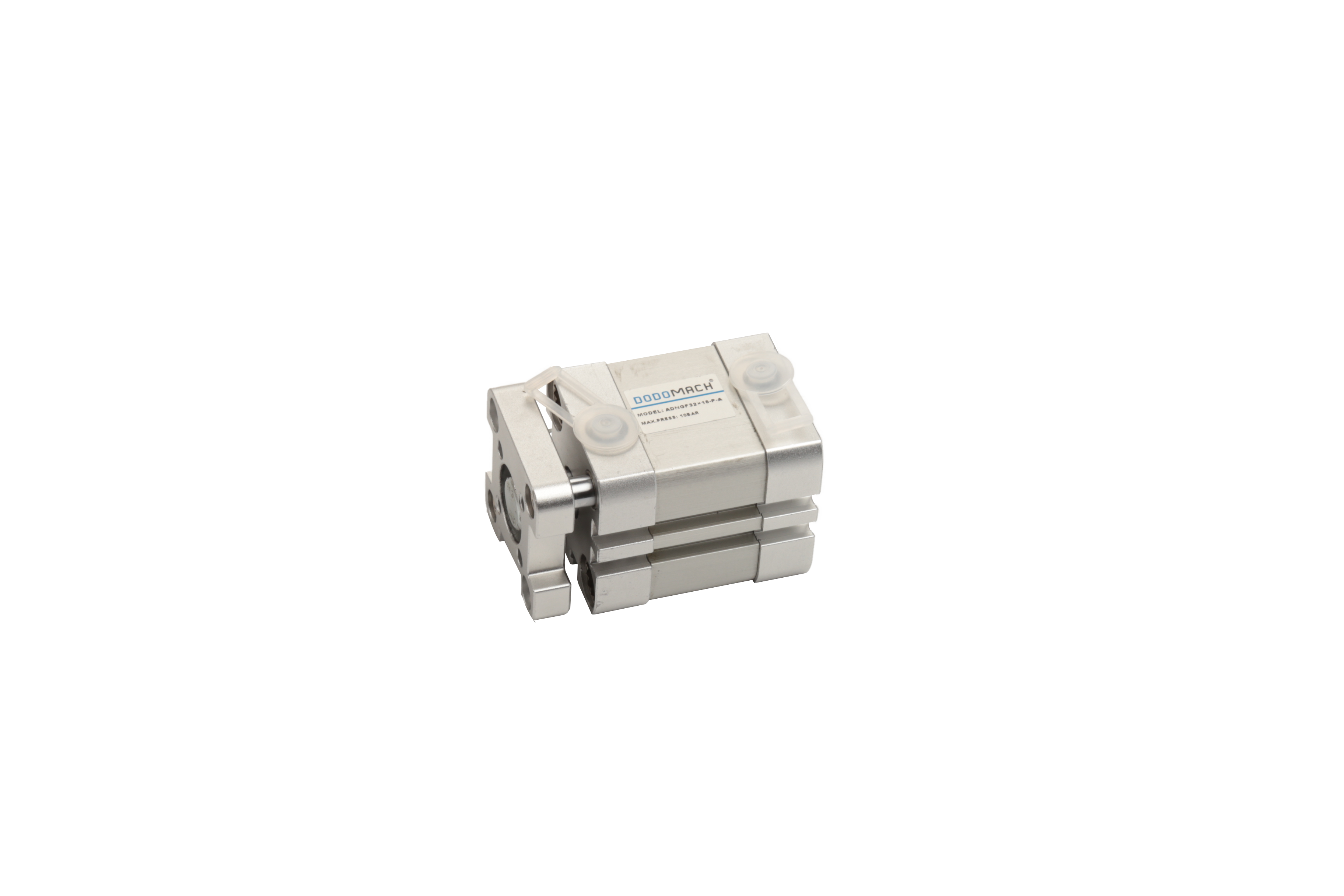

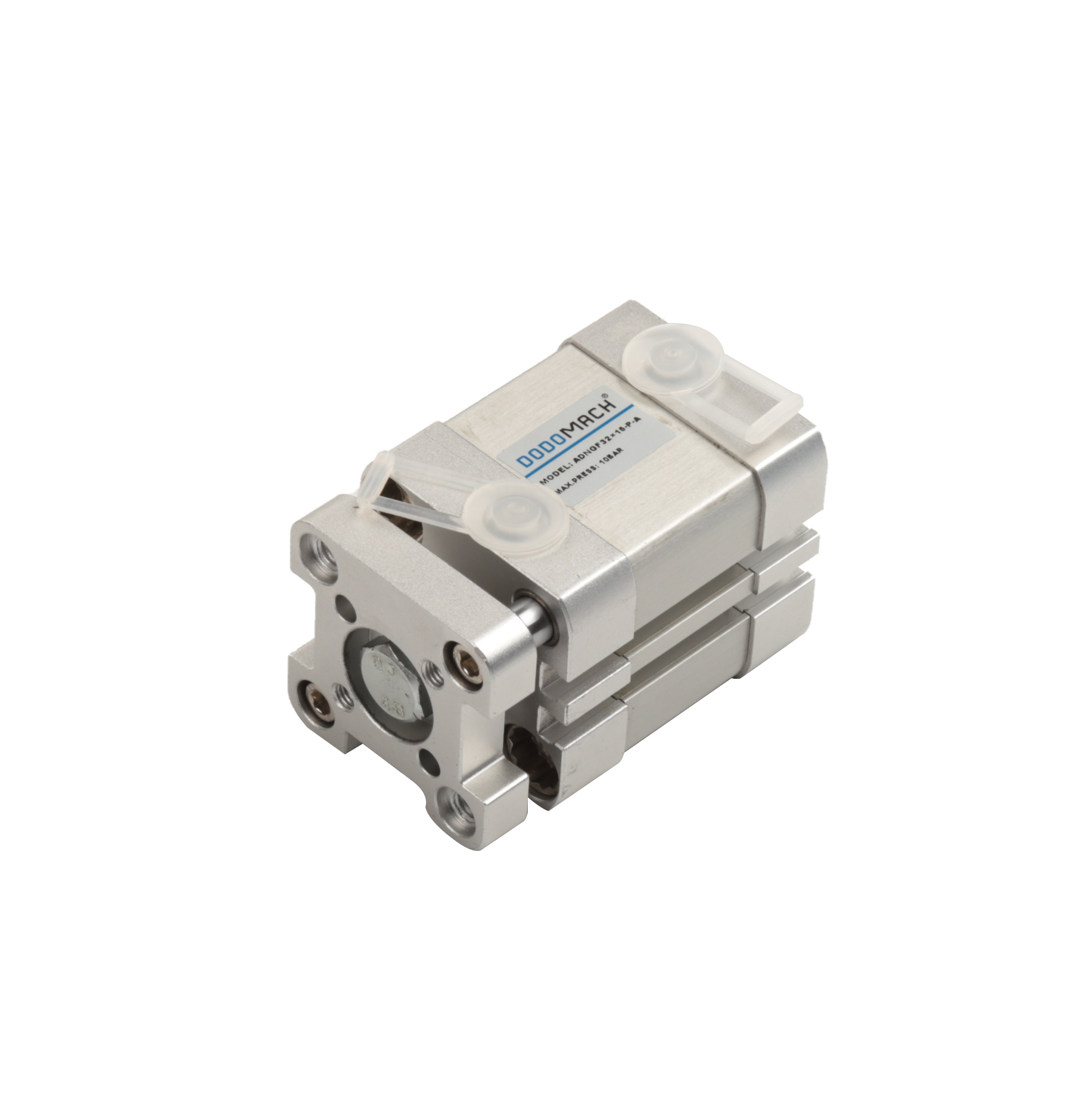

Model: ADNGF

Operating pressure: 1~10 Bar

Category Cylinders

Description
Related Products

Ordering code

ADNGF ordering code

Specification

Bore(mm)	12	16	20	25	32	40	50	63	80	100
Acting type	Double acting
Working Medium	Air (To be filtered by 40μm filter element)
Operating Pressure	1~10 Bar
Proof Pressure	15 Bar
Temperature Range	-20~80℃
Cushion Type
-P	Elastic cushioning rings/ pads at both ends
-PPS	–		Pneumatic cushioning, self-adjusting at both ends
Port size	M5				G1/8

ADNGF Dimension

ADNGF 12~63 dimension

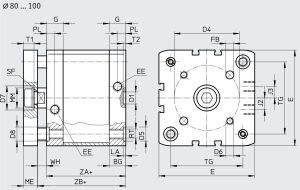

ADNGF 80~100 dimension

Bore	BG min.		D1 Ø H9		D4 ±0.1		D5 Ø		D6		D7 Ø H9		D8		E		EE		FB Ø H8		G		J2		J3
12	17		9		12		6		M3		–		–		27.5+0.3		M5		3		10.5		2		–
16					14										29+0.3						11		2.6
20	19.5				17		9		M4						35.5+0.3				4		12
25					22				M5		14				39.5+0.3				5
32	26				28						17				47+0.3		G1/8				15		6
40					33										54.5+0.3								8
50	27		12		42		12		M6		22				65.5+0.3				6
63					50										75.5+0.3								11.5
80	17				65		15		M8		24		15		95.5+0.6				8		16.5
100	21.5				80				M10						113.5+0.6				10		21.5		20

Bore	LA +0.2	ME		MM Ø H8		PL +0.2		RT		ST H13		T1		T2 +0.1		TG ±0.2		W H				ZA ±0.6		ZB
																		+1.3		PPS +1.4				+1.2		PPS +1.3
12	3.5	6		6		6		M4		5		–		2.1		16		4.2		–		35		39.2		–
16				8						7						18		4.7						39.7
20	5	8		10				M5		9						22		5.5		5.5		37		42.5		42.5
25												5				26				5.5		39		44.5		45.3
32		10		12		8.2		M6		10		6				32.5		6		6.5		44		50		50.6
40																38		6.1		6.6		45		51.1		51.7
50		12		16				M8		13		7.5		2.6		46.5		7.7		8.2				52.7		53.2
63																56.5		7.5		8		49		56.5		57
80	2.6	14		20				M10		17		10.5				72		8.9		9.4		54		62.9		63.4
100						10.5										89		9		9.8		67		76		76.8
