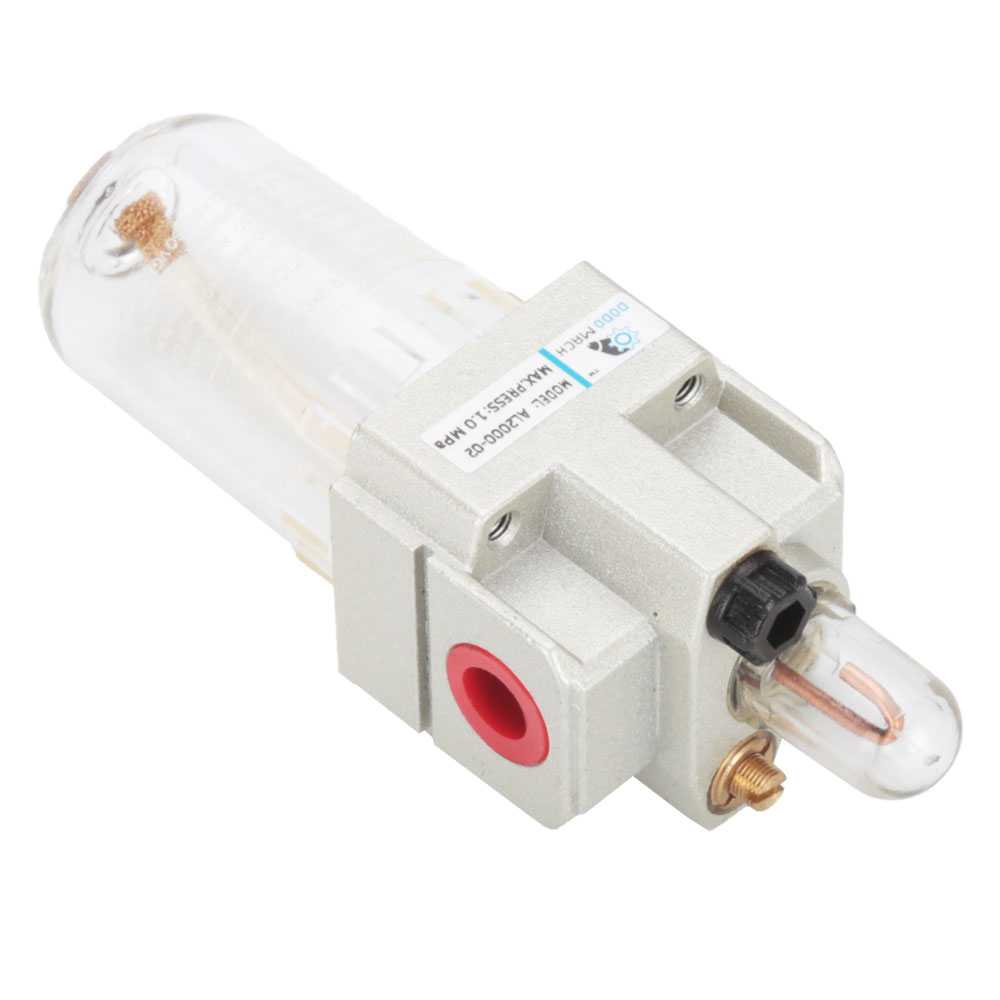

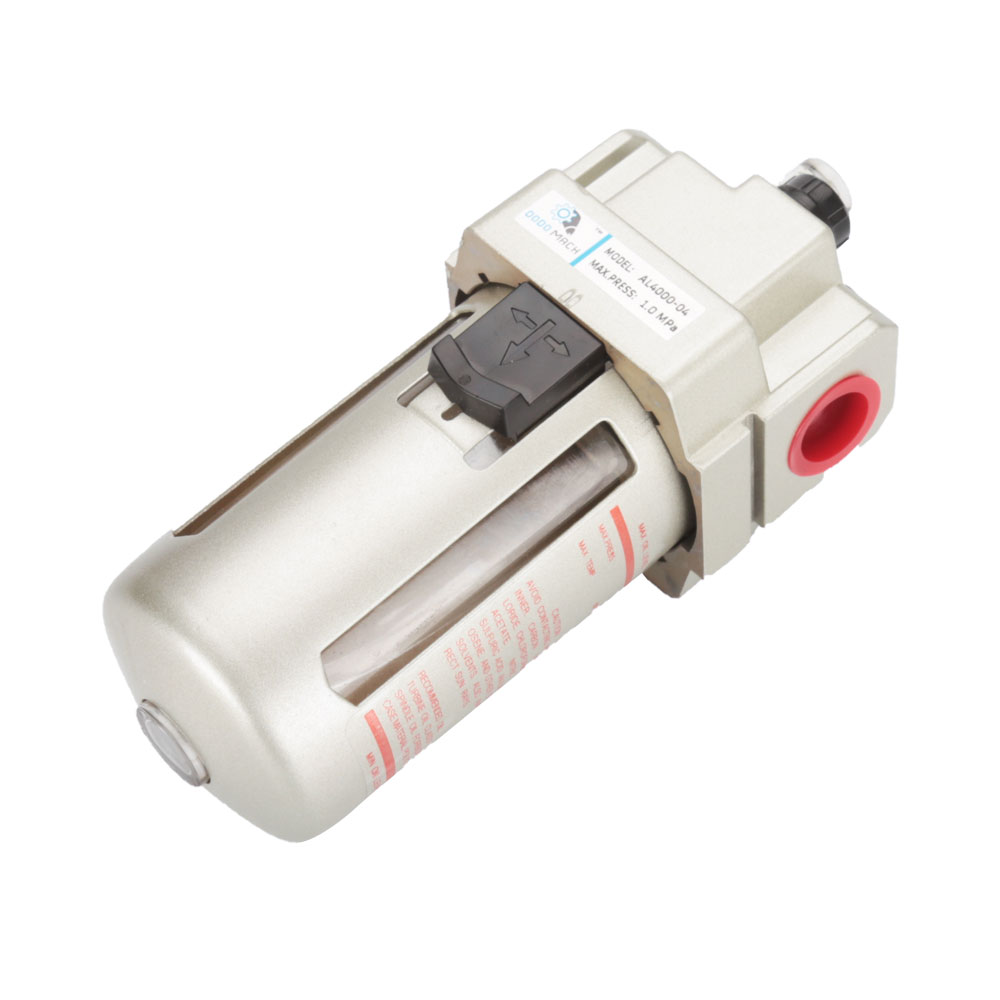

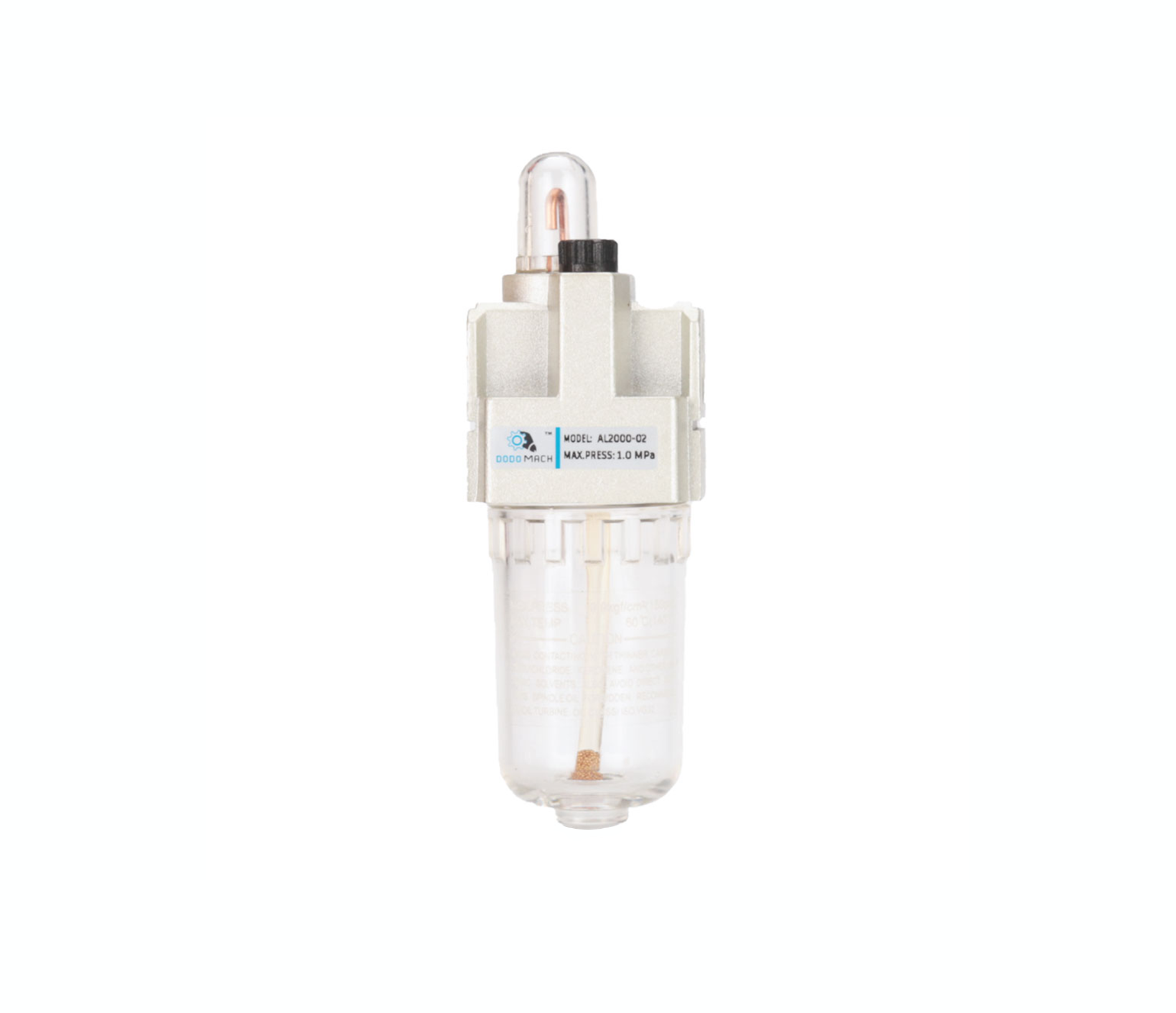

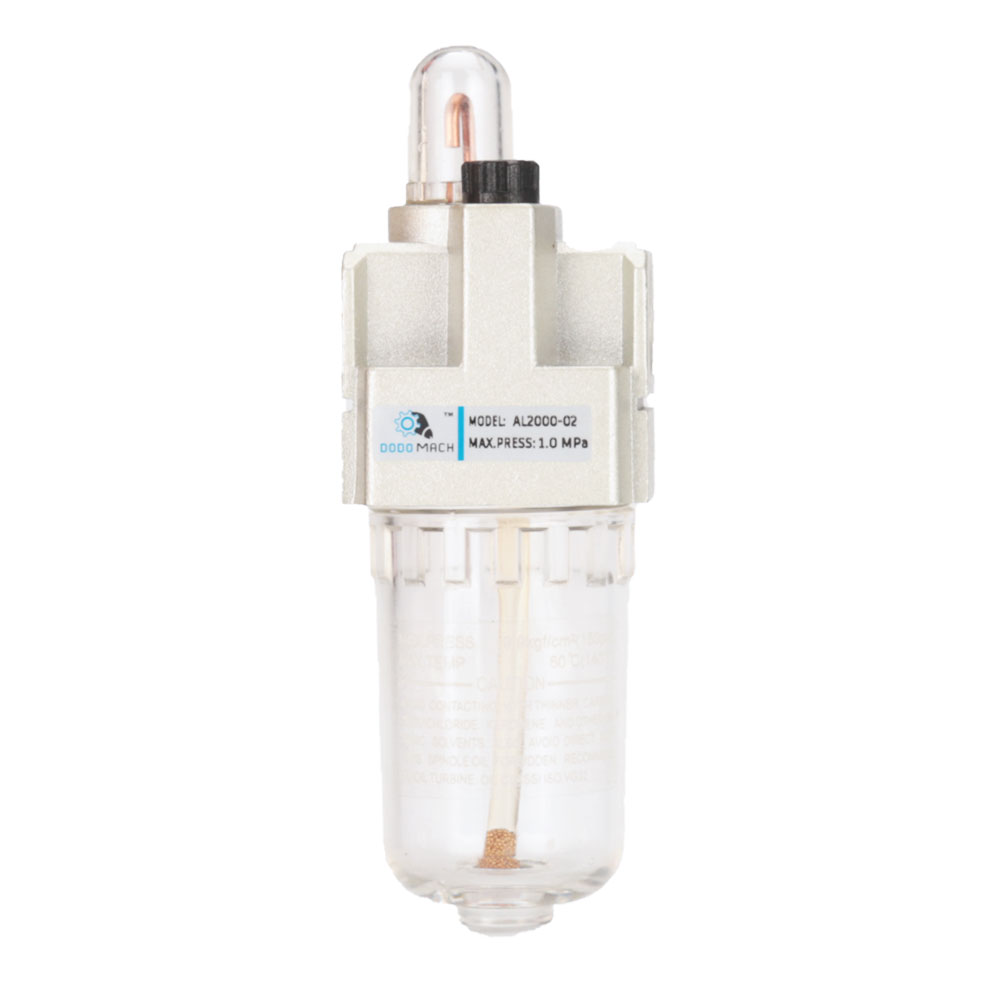

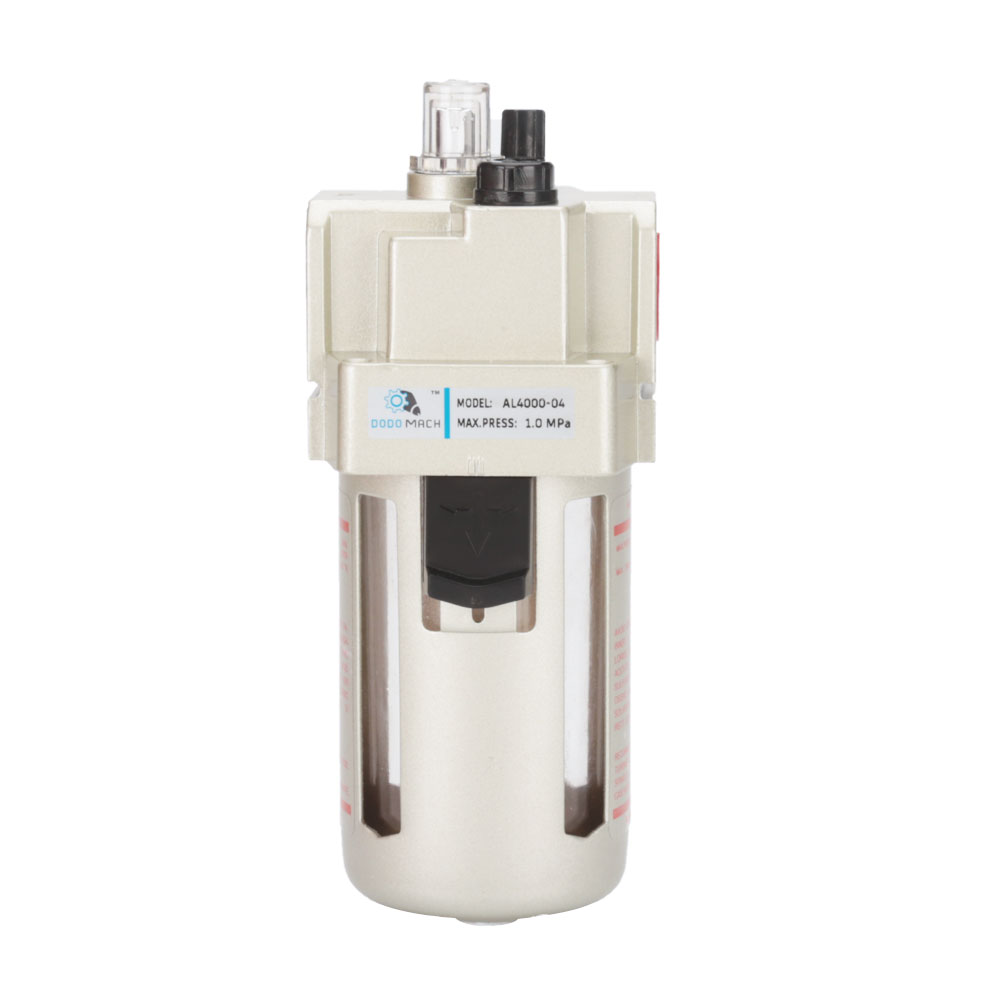

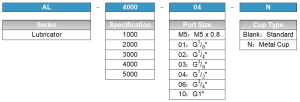

Ordering Code
Specification
| Ensured Pressure Resistance | 1.5MPa（15kgf/cm²） |
| Highest Working Pressure | 1.0MPa（10kgf/cm²） |
| Ambient and Fluid Temperature | 5~60℃ |
| Recommendde Oil Use | Turbine No.1 Oil ISOVG32 |
| Container Material | Polyarbonate |
| Protective Cover | AL2000~5000（Available） |
| Model | Specification | Accessories | ||||
| Min.Flow of Oil Drop （L/min） |
Pate Flow （G） |
Port Size （G） |
Bowl Capacity （cm³） |
Weight （kg） |
Bracket （2） |
|
| AL1000-M5 | 4 | 95 | M5 | 7 | 0.07 | – |
| AL2000-01 | 15 | 800 | 1/8 | 25 | 0.22 | B240 |
| AL2000-02 | 1/4 | |||||
| AL3000-02 | 30 | 1700 | 1/4 | 50 | 0.30 | B340 |
| AL3000-03 | 40 | 3/8 | ||||
| AL4000-03 | 40 | 5000 | 3/8 | 130 | 0.56 | B440 |
| AL4000-04 | 50 | 1/2 | ||||
| AL4000-06 | 50 | 6300 | 3/4 | 130 | 0.58 | B540 |
| AL5000-06 | 190 | 7000 | 3/4 | 130 | 1.08 | B640 |
| AL5000-10 | 1 | |||||

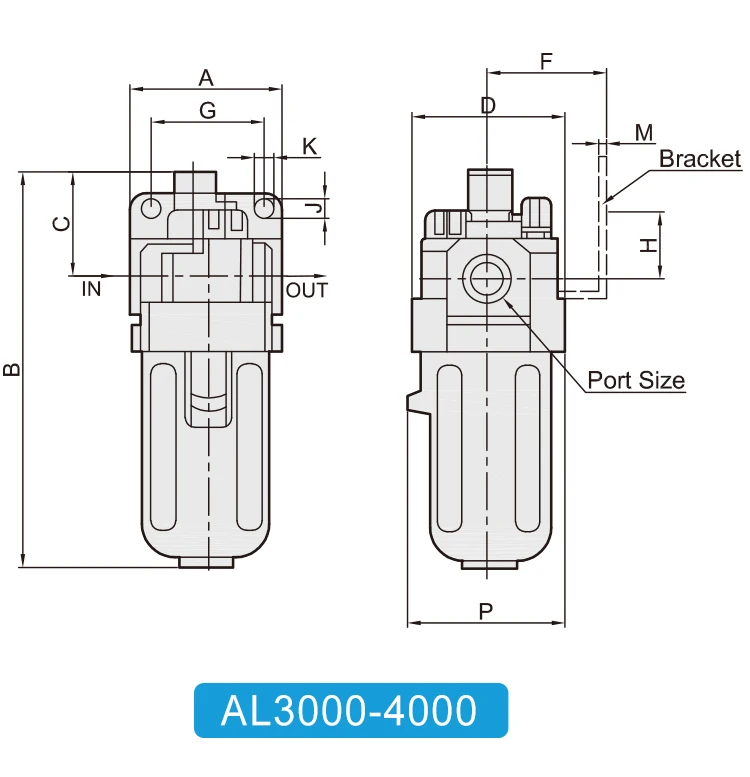

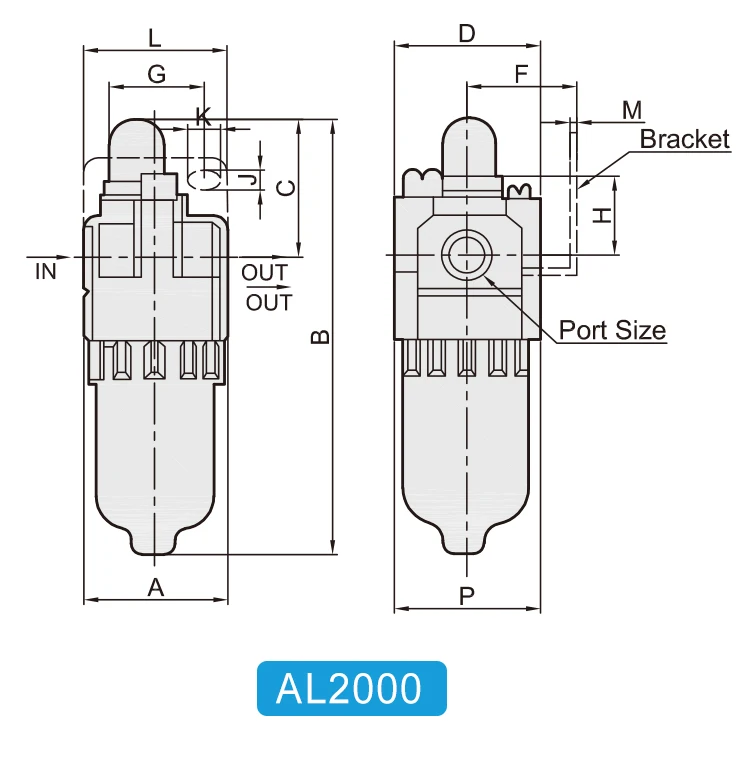

Dimension
| Model | Port Size G |
A | B | C | D | F | G | H | J | K | L | M | P |
| AL1000 | M5 | 25 | 81.5 | 25.5 | 25 | – | – | – | – | – | – | – | 27 |
| AL2000 | 1/8~1/4 | 40 | 122 | 38 | 40 | 30 | 27 | 22 | 5.4 | 8.4 | 40 | 2.3 | 40 |
| AL3000 | 1/4~3/8 | 53 | 142 | 38 | 53 | 41 | 40 | 23 | 6.5 | 8 | 53 | 2.3 | 56 |
| AL4000 | 3/8~1/2 | 70 | 177 | 41 | 70 | 50 | 54 | 26 | 8.5 | 10.5 | 70 | 2.3 | 73 |
| AL4000-06 | 3/4 | 75 | 177 | 39 | 70 | 50 | 54 | 25 | 8.5 | 10.5 | 70 | 2.3 | 73 |
| AL5000 | 3/4~1 | 90 | 254 | 45 | 90 | 66.5 | 66 | 35 | 11 | 13 | 90 | 3.2 | 90 |
