Product Details

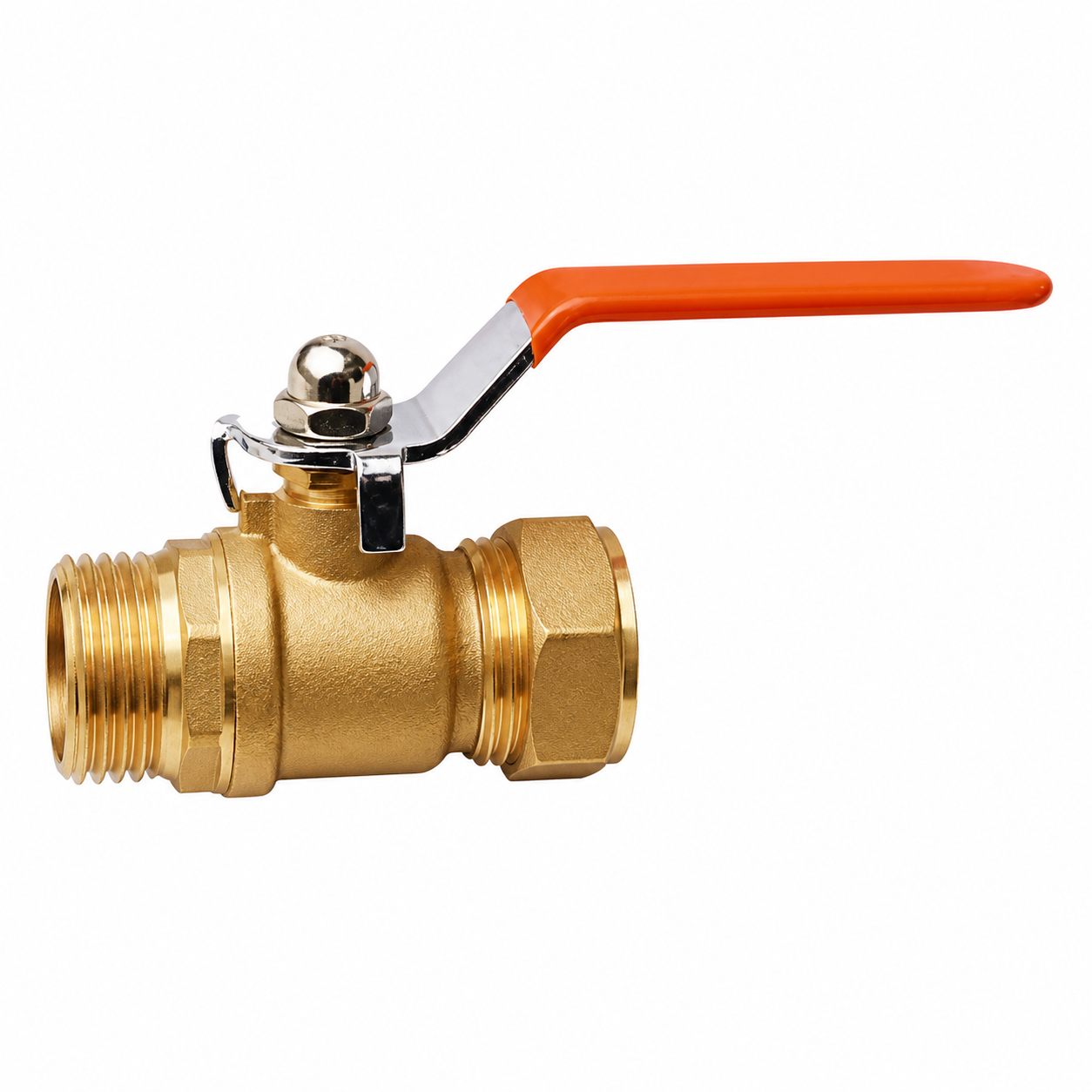

| Product Type | Aluminum plastic pipe brass ball valve |
|---|---|
| Connection | Single cassette connection x male thread |
| Handle Type | Long handle |
| Application | Water, gas, and oil service |
Technical Data
| Normal Pressure | 1.6 MPa |
|---|---|
| Working Medium | Water, gas, oil |
| Working Temperature | -20°C ≤ T ≤ 110°C |
| Thread Standard | ISO 228 |

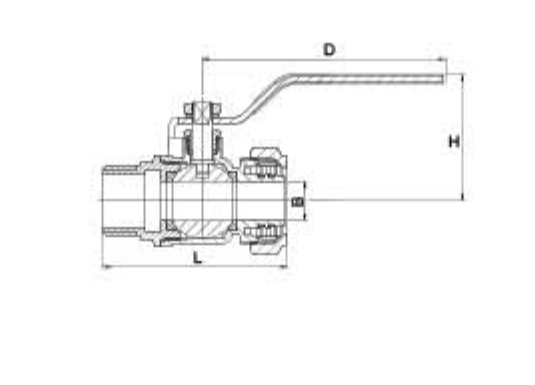

Dimensions
| DN | L | B | H | D |
|---|---|---|---|---|
| 16 x 1/2″ | 55 | 8 | 38 | 75 |
| 18 x 1/2″ | 58 | 8 | 43 | 75 |
| 20 x 1/2″ | 61.5 | 12 | 43 | 75 |
| 25 x 3/4″ | 71.5 | 15 | 48 | 92 |
| 32 x 1″ | 84 | 20 | 56 | 118 |
