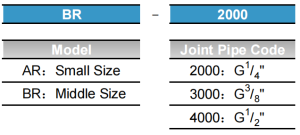

Ordering Code
Specification
| Model | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 | |
| Operating Fluid | Air | |||||
| Joint Pipe Bore | G1/8“ | G1/4“ | G1/4“ | G3/8“ | G1/2“ | |
| Range of Adjustable Pressure | 0.05~0.85MPa | |||||
| Max.Adjustable Pressure | 0.95MPa | |||||
| Ensured Pressure Resistance | 1.5MPa | |||||
| Operating Temperature Range | 5~60℃ | |||||
| Weight | 0.20KG | 0.23KG | ||||
| Material of Body | Aluminum Die-casting Forming | |||||

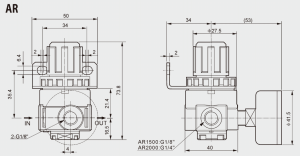

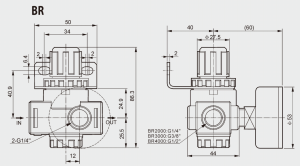

Dimension
