DODOMACH PNEUMATIC

AT Actuator

AT Actuator

AT Actuator

Model: AT32~AT270

Operating pressure: 3~8 Bar

Category Actuators

Description
Related Products

Ordering Code

AT ordering code

Specification

Model	AT32~AT270
Acting type	Double Acting / Single Acting
Material	Aluminum alloy
Temperature	-20 ~ 80 ℃
Pressure range	3~8 Bar
Fluid	Air

Dimension

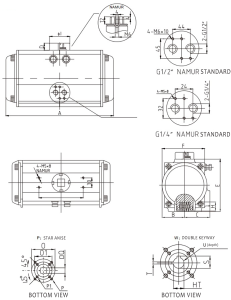

AT dimension

Model	A	B	C	D	E	F	G	H	ØI	ØO	ØO1	P1	P	Q	Z
AT52	147	30	41.5	20	92	65	80	14	40	50	36	M5×8	M5×8	11	G1/4
AT63	168	36	47	20	107.5	72	80	17	40	70	50	M6×10	M6×10	14	G1/4
AT75	184	42	53	20	119.5	81	80	17	40	70	50	M6×10	M6×10	14	G1/4
AT83	210	46	57	20	129	92	80	21	40	70	50	M6×10	M6×10	17	G1/4
AT92	262	50	58.5	20	137	98	80	22	40	70	50	M6×10	M6×10	17	G1/4
AT105	273	58	64	20	153	109.5	80	26	40	102	70	M8×13	M8×13	22	G1/4
AT125	301	68	74	30	175	127	130	26	56	102	70	M8×13	M8×13	22	G1/4
AT140	400	75	77	30	193	137	130	32	56	125	102	M10×16	M10×16	27	G1/4
AT160	458	87	89	30	218	158	130	32	56	125	102	M10×16	M10×16	27	G1/4
AT190	525	103	103	30	260	189	130	40	80	140		M16×25	M16×25	36	G1/4
AT210	535	113	113	30	285	210	130	40	80	140		M16×25	M16×25	36	G1/4
AT240	595	130	130	30	319	245	130	50	80	165		M20×25	M20×25	46	G1/4
AT270	722	147	147	30	356	273	130	50	80	165		M20×25	M20×25	46	G1/2
