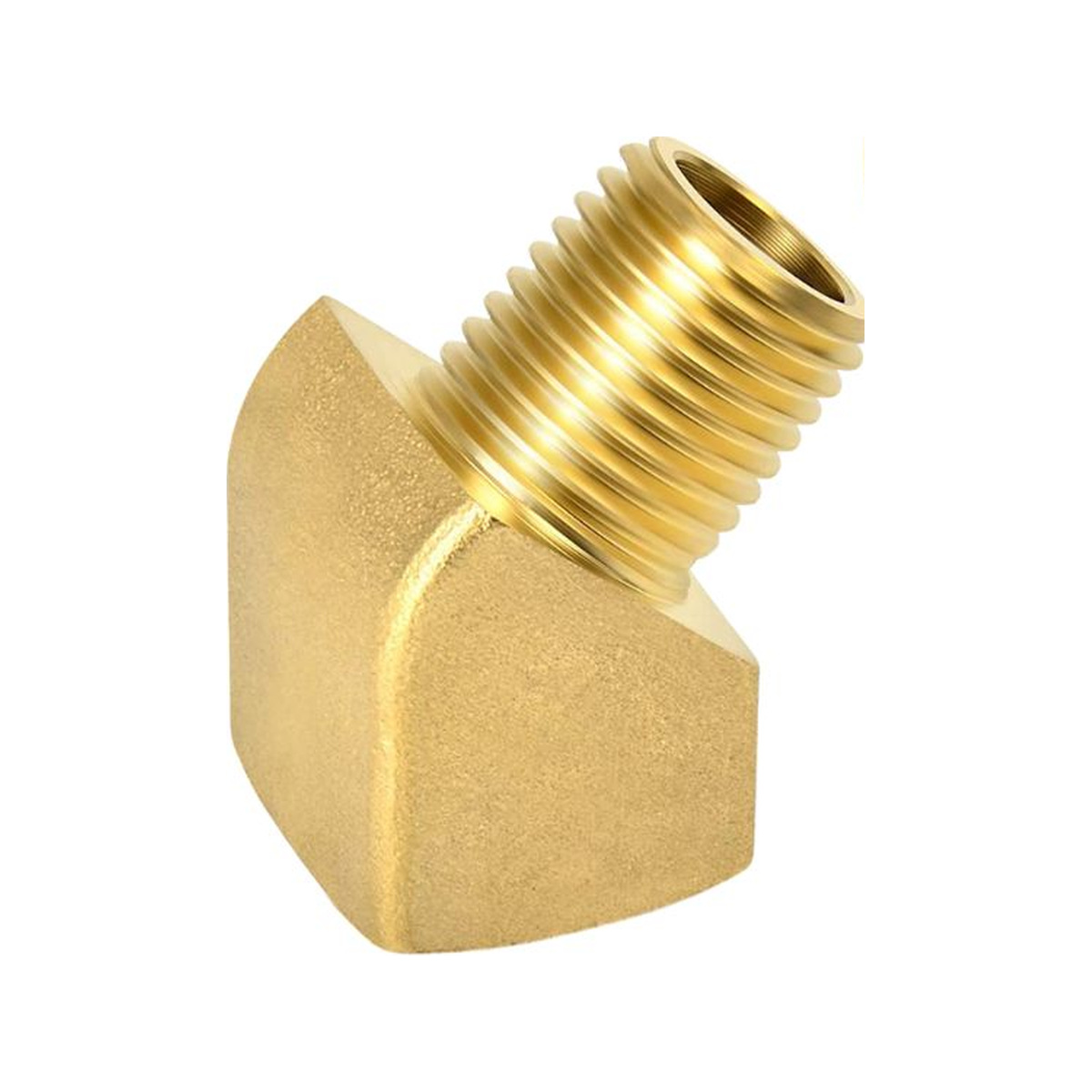

Brass 45 Degree Street Elbow
Brass 45 degree street elbow for angled threaded pipe fitting connections.
Applications and Features
| Item | Details |
|---|---|
| Connection | Female pipe thread x Male pipe thread |
| Application | Changes threaded pipe direction by 45 degrees in compact air, water, and general service pipe fitting assemblies. |
| Feature | Street elbow geometry combines one male thread and one female thread to reduce the need for an extra nipple. |
Specifications
| Part Number | Female Thread | Male Thread |
|---|---|---|
| DX124-A | 1/8 in | 1/8 in |
| DX124-B | 1/4 in | 1/4 in |
| DX124-C | 3/8 in | 3/8 in |
| DX124-D | 1/2 in | 1/2 in |
