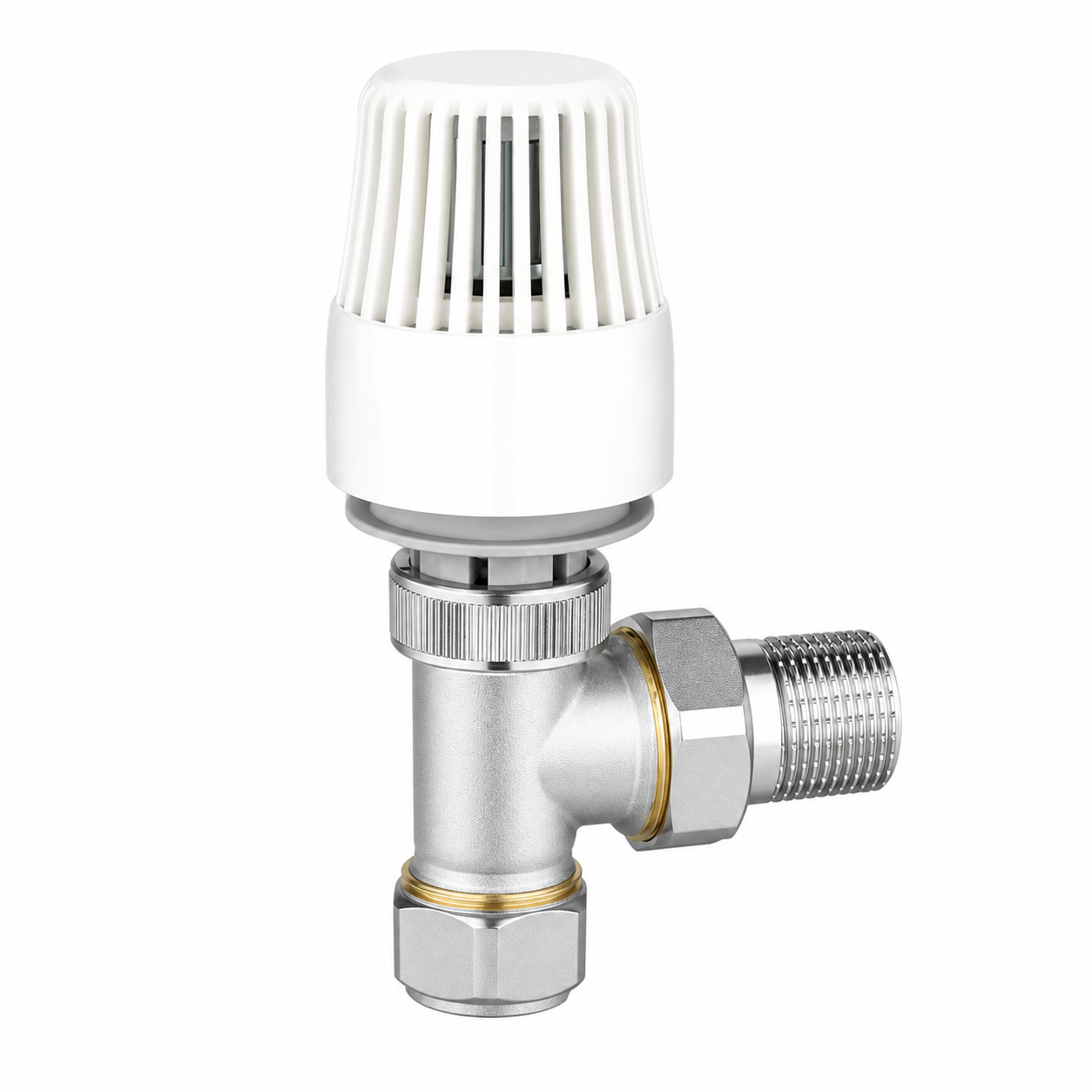

The Brass Aluminum Plastic Angle Temperature Automatic Control Valve is designed for water and heating systems. The angle body layout combines an automatic thermostatic control head with an aluminum-plastic pipe connection structure.

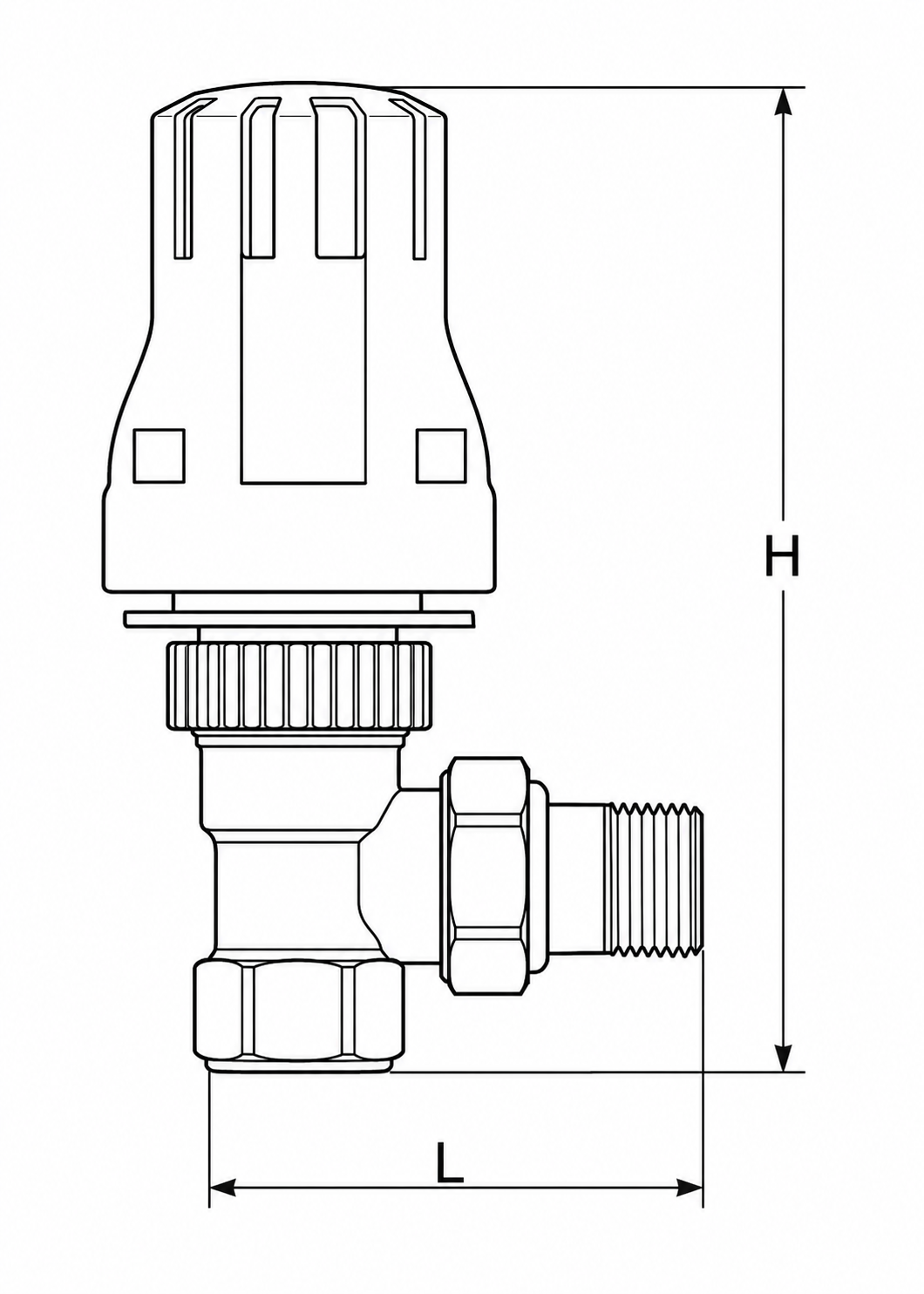

Main Dimensions
| DN | Size | L | d | H | D |
|---|---|---|---|---|---|
| 15 | 1/2" | 54 | 112 | ||
| 20 | 3/4" | 61 | 116 |
Technical Standard
| Normal Pressure | 1.6 MPa |
|---|---|
| Working Medium | Water, heating |
| Working Temperature | T ≤ 120 C |
| Thread Standard | ISO 228 |
