Product Details

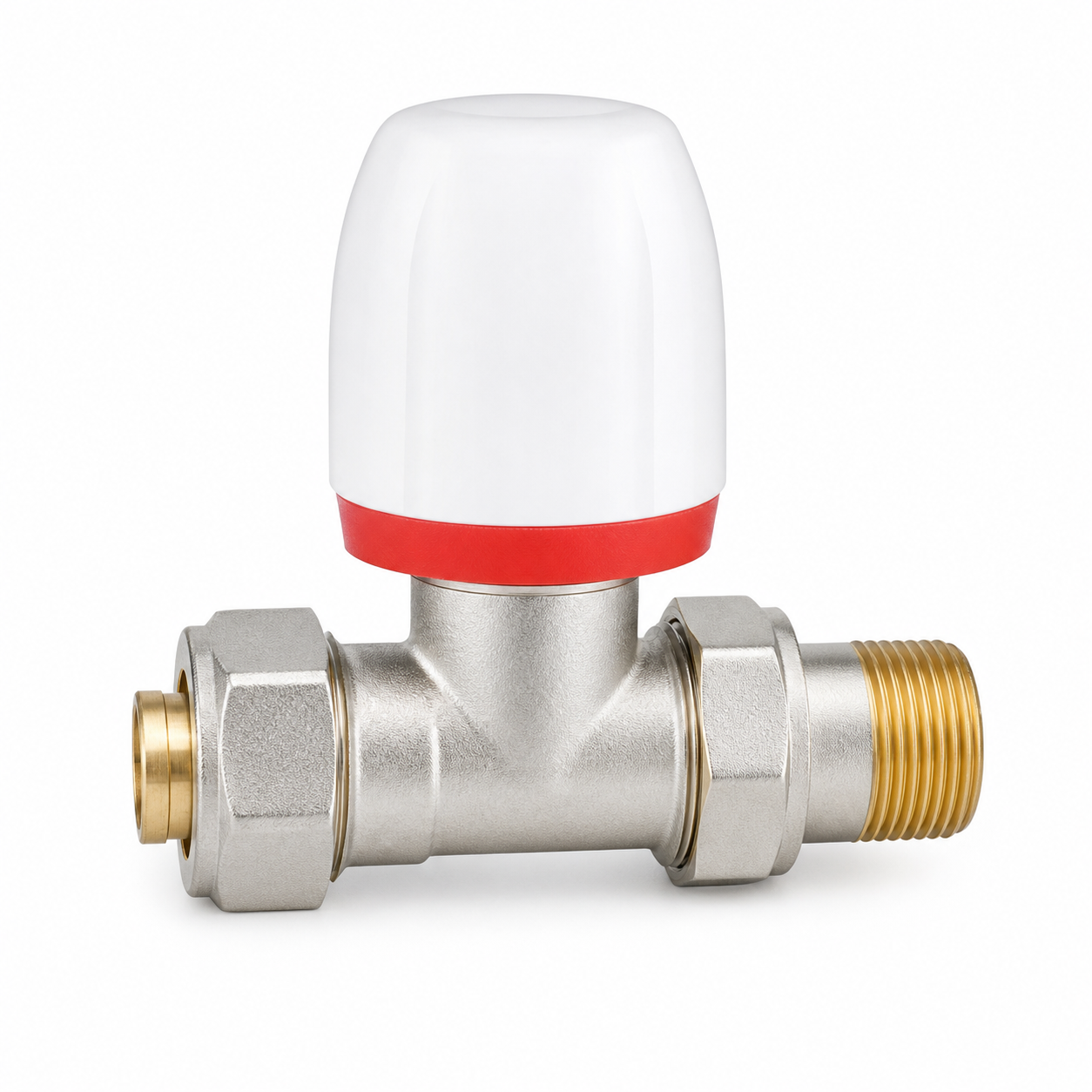

The Brass Aluminum Plastic Straight Manual Thermostatic Valve is a straight-pattern manual temperature control valve for heating and water pipeline systems. The silver valve body, white thermostatic knob, compression-style connector, and brass male threaded end support compact installation with aluminum-plastic piping.

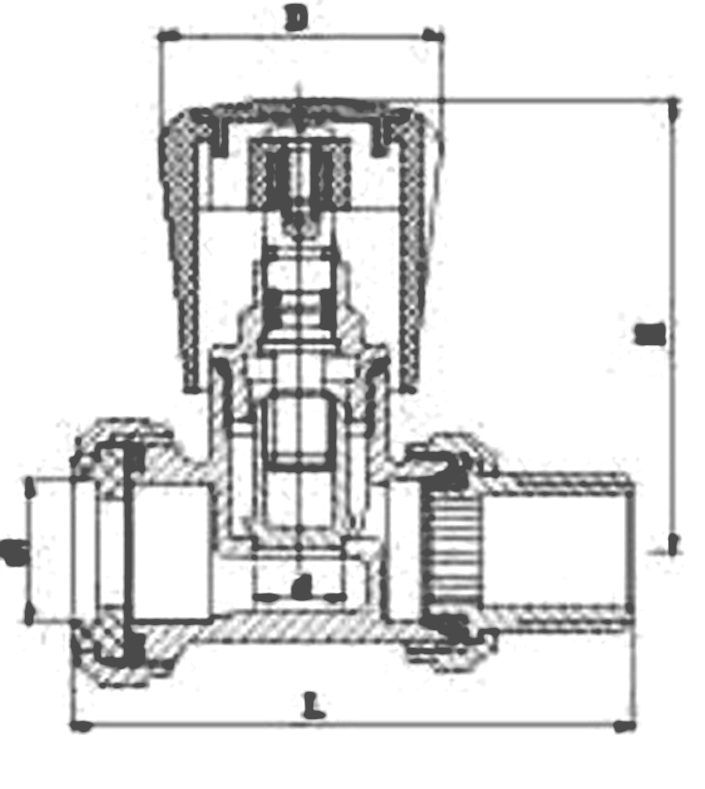

Main Dimensions
| DN | Size | L | d | H | D |
|---|---|---|---|---|---|
| 15 | 1/2" | 89 | 9 | 65 | 39 |
| 20 | 3/4" | 100 | 16 | 67 | 42 |
| 25 | 1" | 113 | 19 | 71 | 45 |
Technical Standard
| Item | Specification |
|---|---|
| Normal Pressure | 1.6 MPa |
| Working Medium | Water, heating |
| Working Temperature | T <= 120 C |
| Thread Standard | ISO 228 |
