Product Details

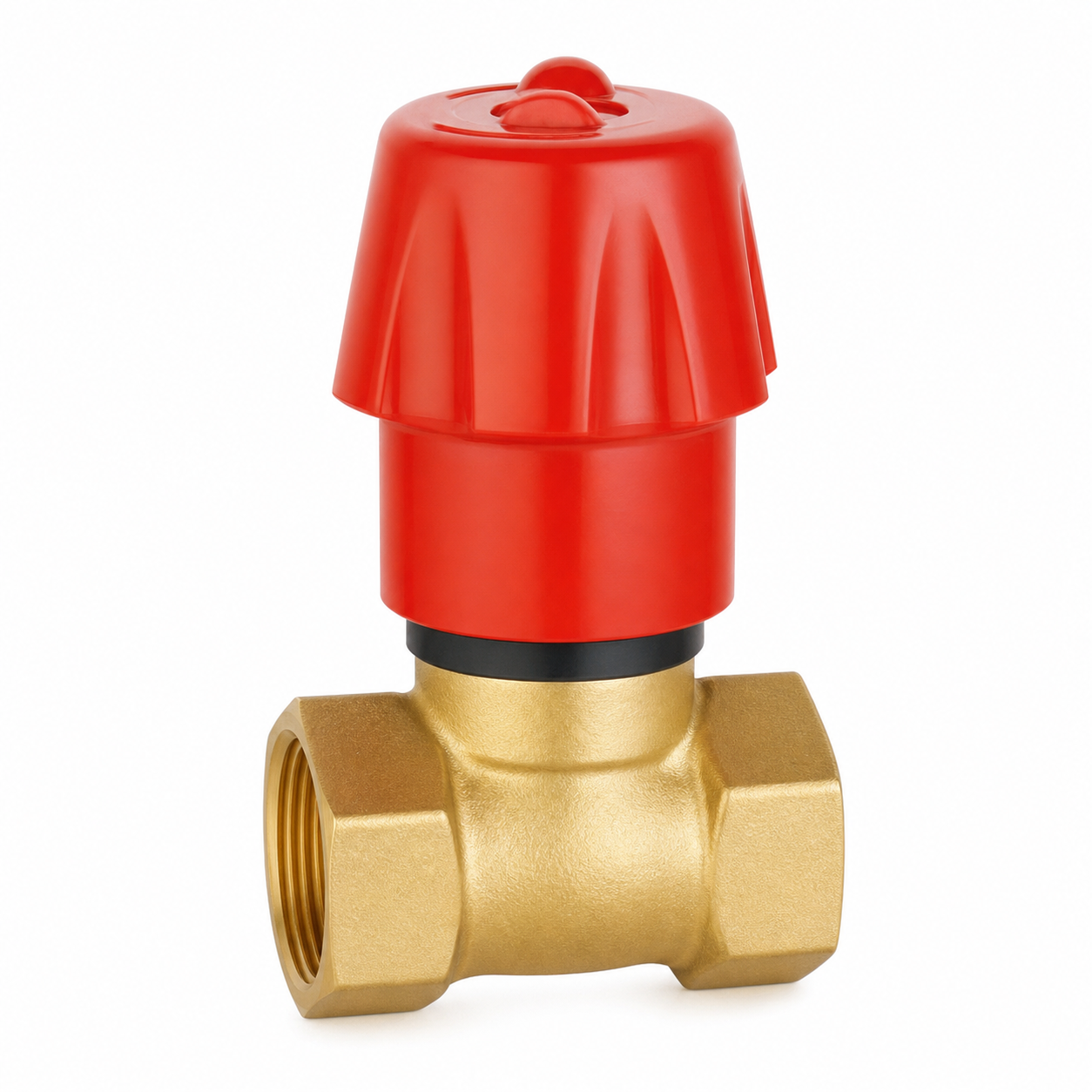

The Brass Heating Manual Regulating Valve is a compact threaded valve for heating water and general pipeline flow adjustment. The brass body, female threaded ends, and red manual knob provide controlled regulation for heating, water, and oil service.

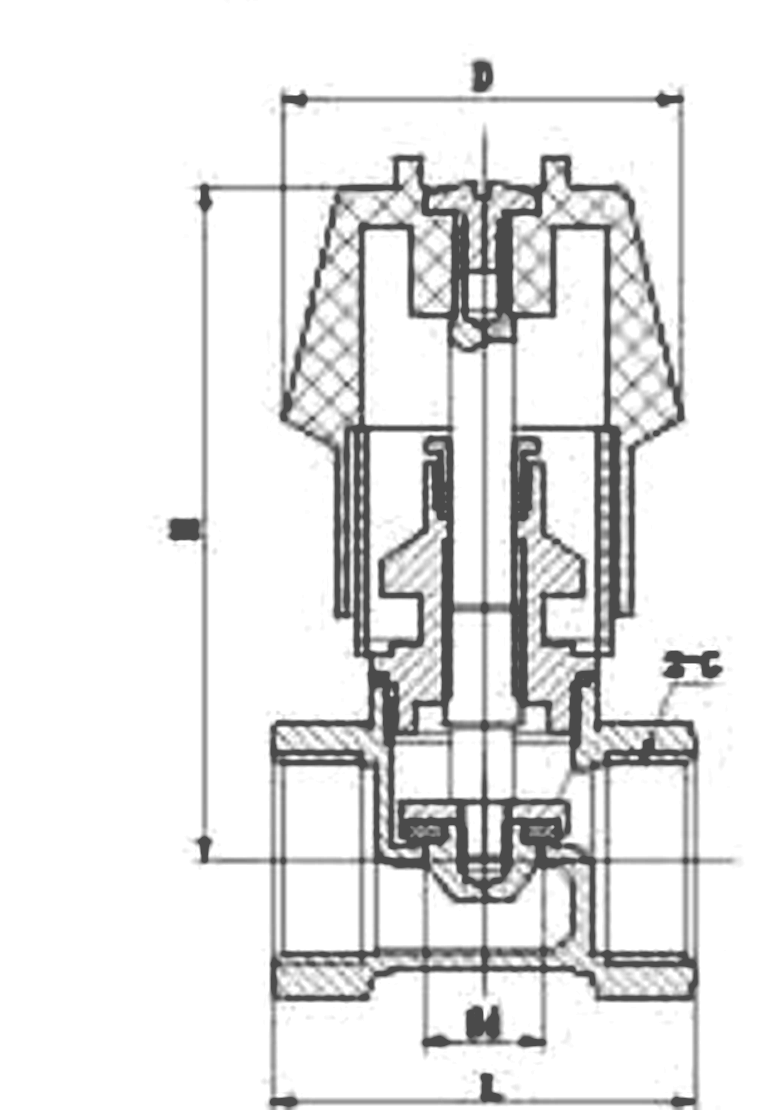

Main Dimensions
| DN | Size | L | d | H | D |
|---|---|---|---|---|---|
| 20 | 3/4" | 53 | 15 | 84 | 50 |
| 25 | 1" | 63 | 19 | 86 | 50 |
| 32 | 1-1/4" | 70 | 24 | 97.5 | 50 |
| 40 | 1-1/2" | 74.5 | 28 | 103.5 | 50 |
| 50 | 2" | 94.3 | 31 | 108.5 | 50 |
Technical Standard
| Item | Specification |
|---|---|
| Normal Pressure | 1.6 MPa |
| Working Medium | Water |
| Working Temperature | -20 C <= T <= 150 C |
| Thread Standard | ISO 228 |
