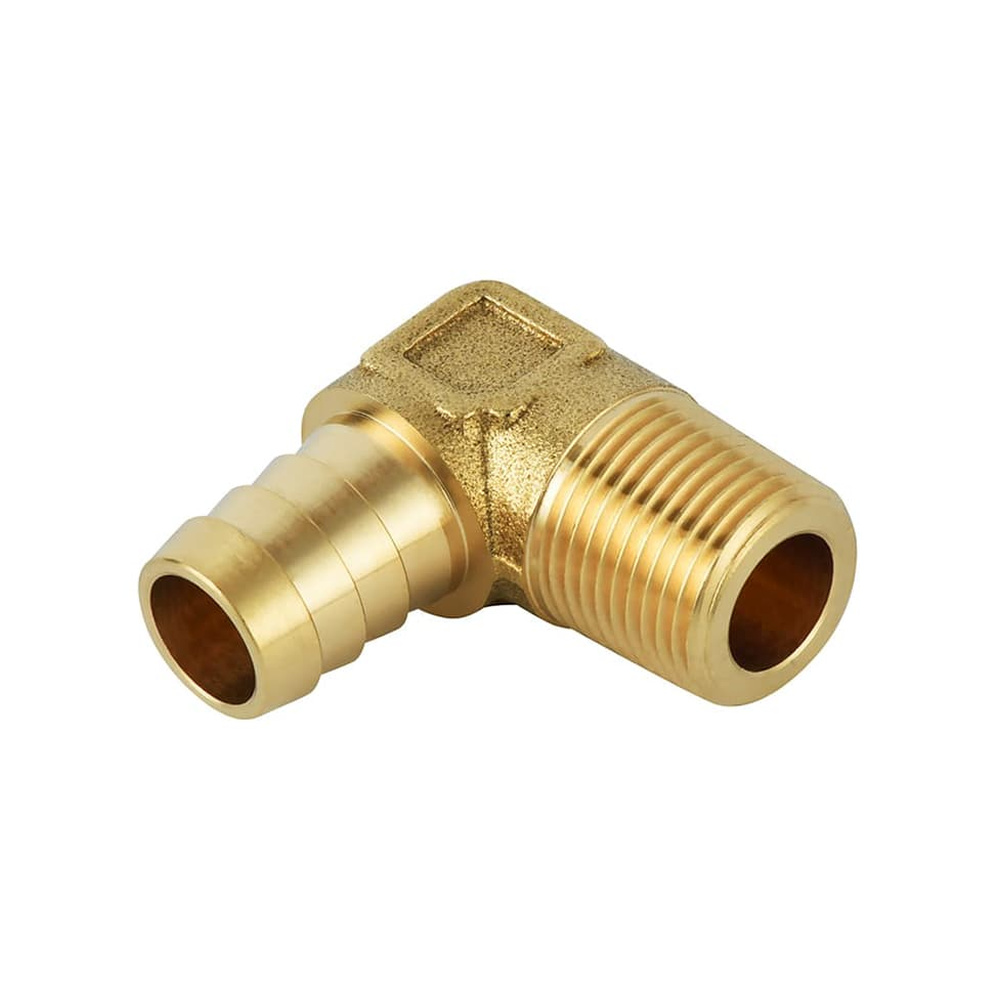

Brass Hose Barb x 90 Degree Male NPT
Brass hose barb x 90 degree male NPT elbow for right-angle hose-to-thread connections.
Applications and Features
| Item | Details |
|---|---|
| Connection | Hose barb x 90 degree Male NPT |
| Application | Connects hose to female NPT ports where a right-angle turn is needed for hose clearance and routing. |
| Feature | 90 degree brass hose barb helps reduce hose kinking in compact assemblies. |
Specifications
| Part Number | Hose ID | Male Thread |
|---|---|---|
| D139-4A | 1/4 in | 1/8 in |
| D139-4B | 1/4 in | 1/4 in |
| D139-6A | 3/8 in | 1/8 in |
| D139-6B | 3/8 in | 1/4 in |
| D139-6C | 3/8 in | 3/8 in |
| D139-8D | 1/2 in | 1/2 in |
