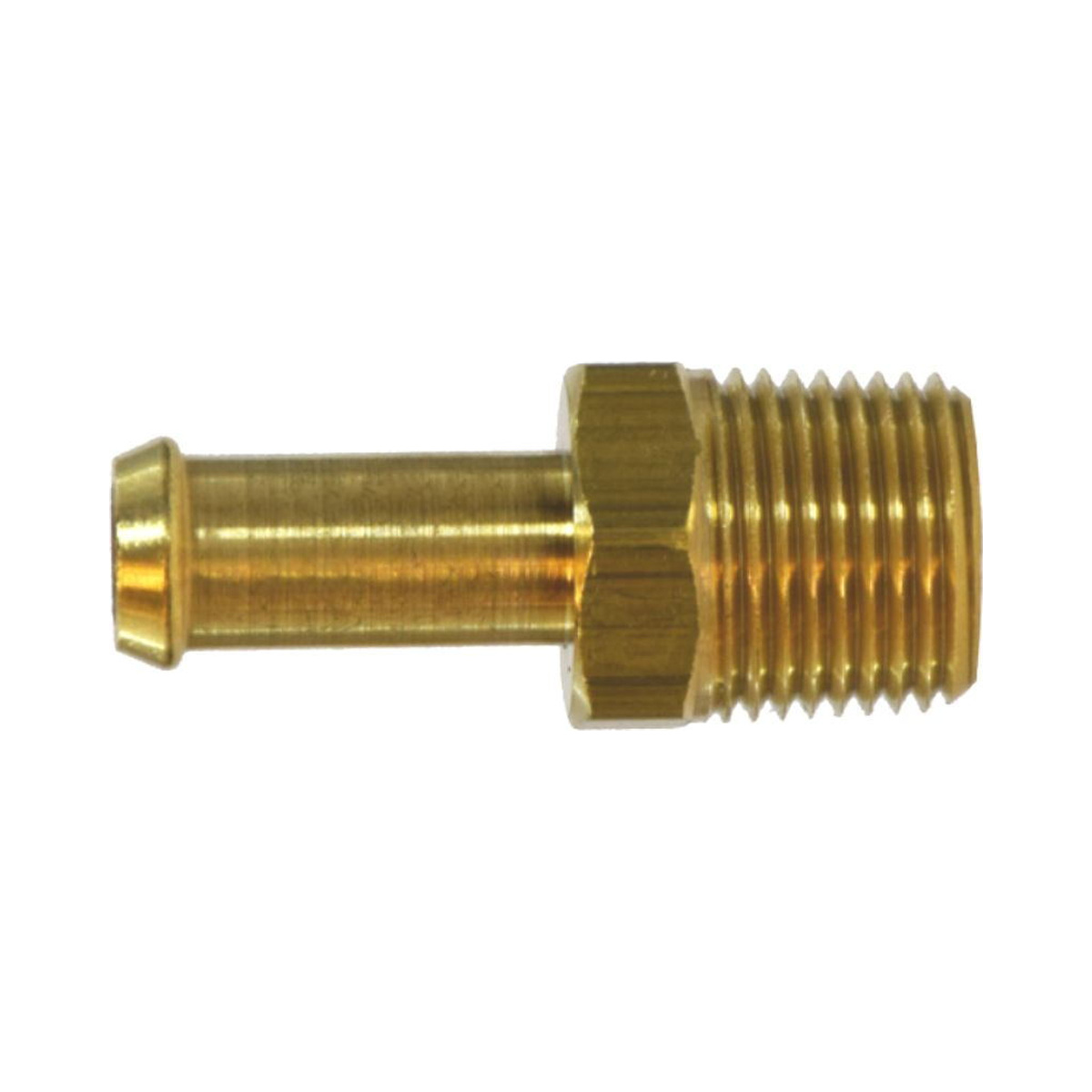

Brass Hose Barb x Male NPT
Brass hose barb x male NPT fitting for hose-to-threaded pipe connections.
Applications and Features
| Item | Details |
|---|---|
| Connection | Hose barb x Male NPT |
| Application | Connects flexible hose to female NPT threaded ports in air, water, and general fluid transfer systems. |
| Feature | Barbed brass hose end grips the hose ID and provides a male pipe thread outlet. |
Specifications
| Part Number | Hose ID | Male Thread |
|---|---|---|
| D125-2A | 1/8 in | 1/8 in |
| D125-2B | 1/8 in | 1/4 in |
| D125-3A | 3/16 in | 1/8 in |
| D125-3B | 3/16 in | 1/4 in |
| D125-4A | 1/4 in | 1/8 in |
| D125-4B | 1/4 in | 1/4 in |
| D125-4C | 1/4 in | 3/8 in |
| D125-4D | 1/4 in | 1/2 in |
| D125-5A | 5/16 in | 1/8 in |
| D125-5B | 5/16 in | 1/4 in |
| D125-5C | 5/16 in | 3/8 in |
| D125-6A | 3/8 in | 1/8 in |
| D125-6B | 3/8 in | 1/4 in |
| D125-6C | 3/8 in | 3/8 in |
| D125-6D | 3/8 in | 1/2 in |
| D125-8B | 1/2 in | 1/4 in |
| D125-8C | 1/2 in | 3/8 in |
| D125-8D | 1/2 in | 1/2 in |
| D125-8E | 1/2 in | 3/4 in |
| D125-10B | 5/8 in | 1/4 in |
| D125-10C | 5/8 in | 3/8 in |
| D125-10D | 5/8 in | 1/2 in |
| D125-10E | 5/8 in | 3/4 in |
| D125-12D | 3/4 in | 1/2 in |
| D125-12E | 3/4 in | 3/4 in |
| D125-12F | 3/4 in | 1 in |
| D125-16E | 1 in | 3/4 in |
| D125-16F | 1 in | 1 in |
