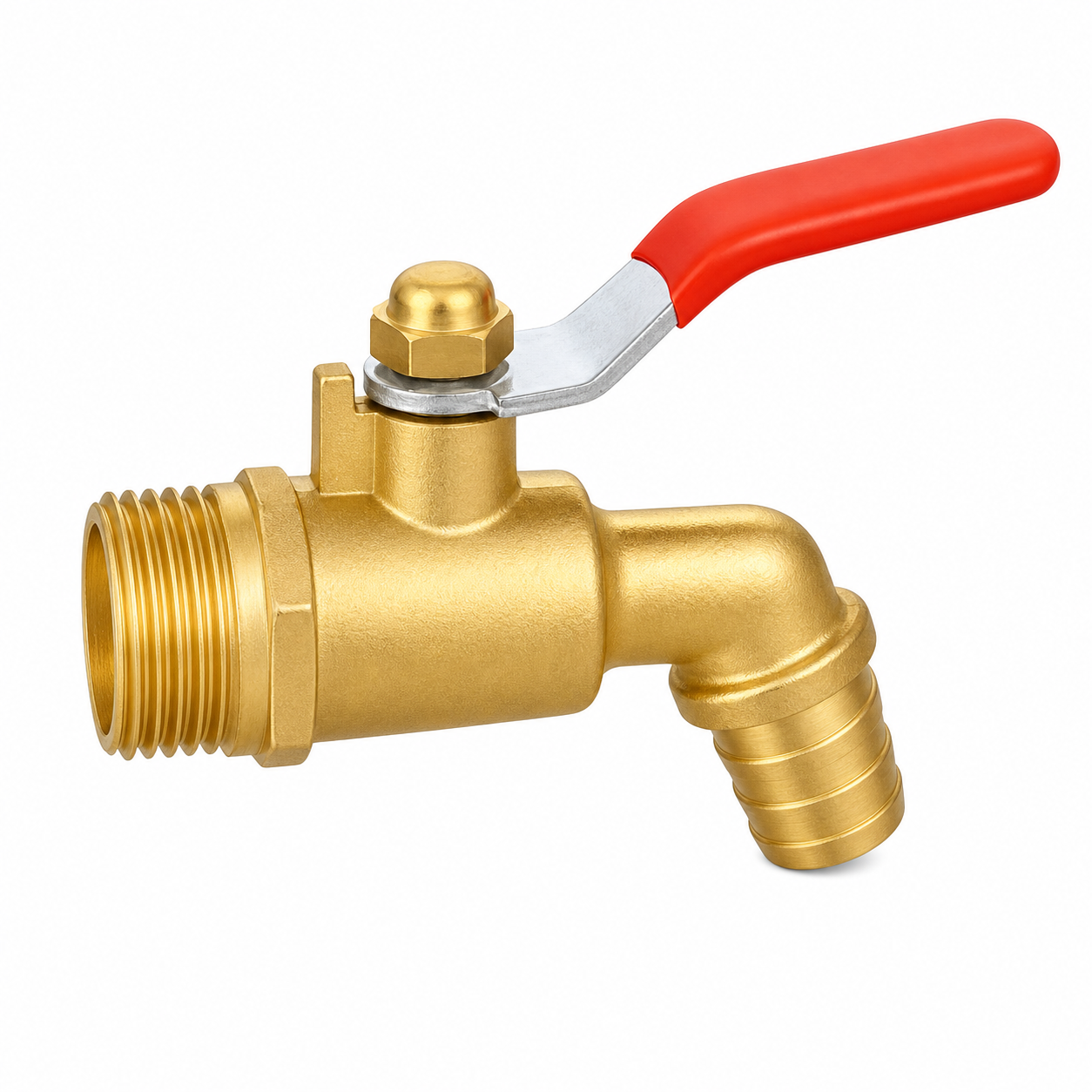

Brass hot water nozzle faucet valve for water supply use, with red lever handle, male threaded inlet, and angled hose barb outlet.

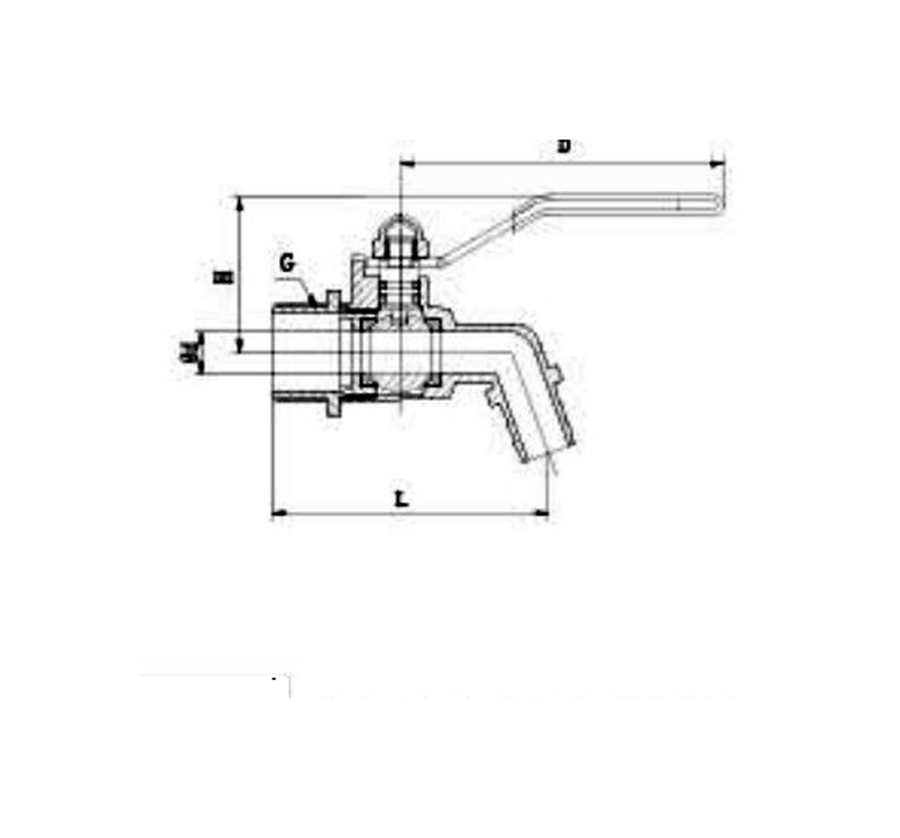

Main Dimensions
| DN | Size | L (mm) | d (mm) | H (mm) | D (mm) | G |
|---|---|---|---|---|---|---|
| 15 | 1/2 | 56 | 9 | 31 | 67 | 1/2 |
| 20 | 3/4 | 60 | 9 | 29 | 77 | 3/4 |
Technical Standard
| Normal Pressure | 1.6 MPa |
|---|---|
| Working Medium | Water |
| Working Temperature | 0 C <= T <= 100 C |
| Thread Standard | ISO 228 |
