Product Details

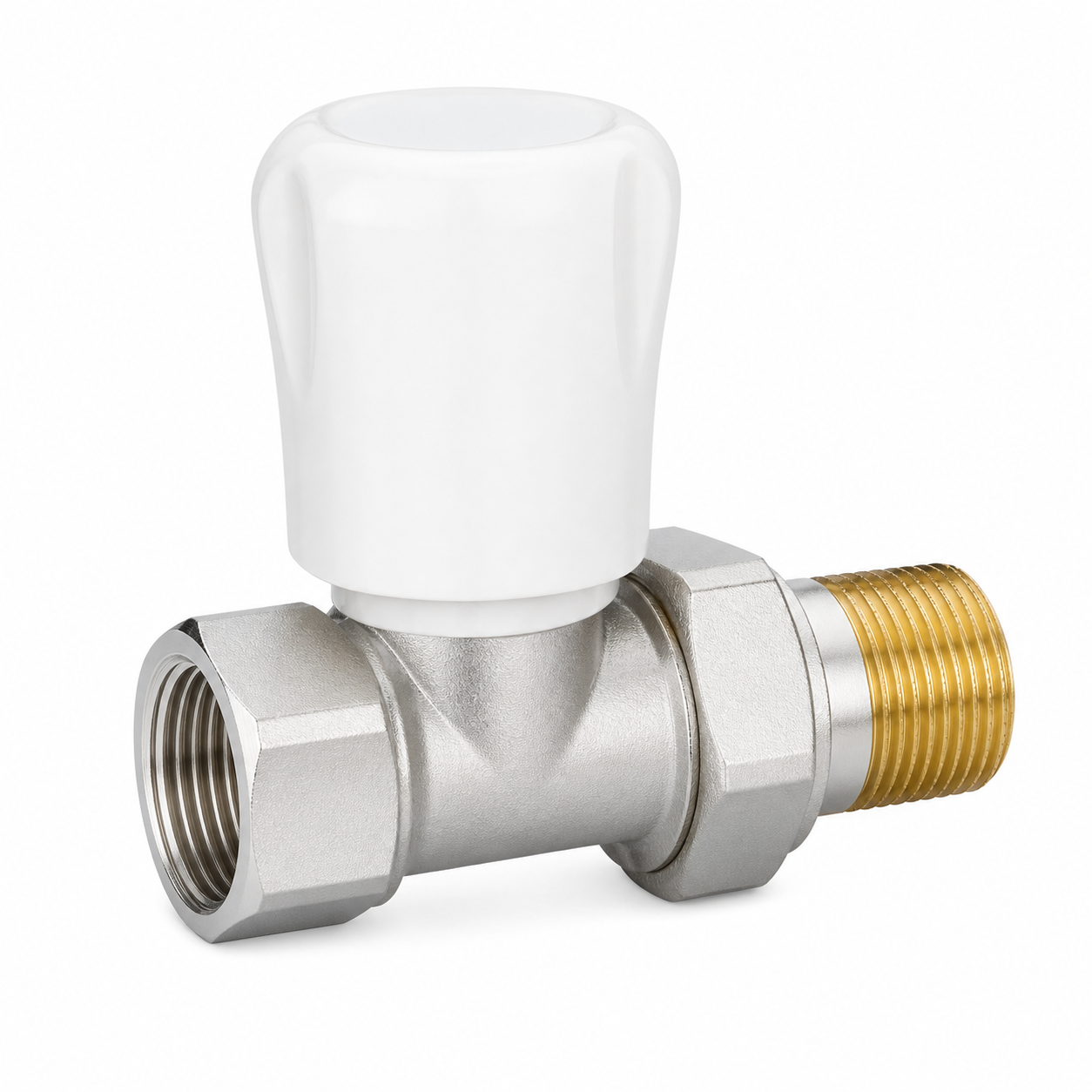

The Brass Straight Manual Thermostatic Valve is a straight-pattern manual temperature control valve for heating and water pipeline systems. The silver valve body, white thermostatic knob, female threaded inlet, and brass male threaded outlet support compact heating-loop installation and manual flow control.

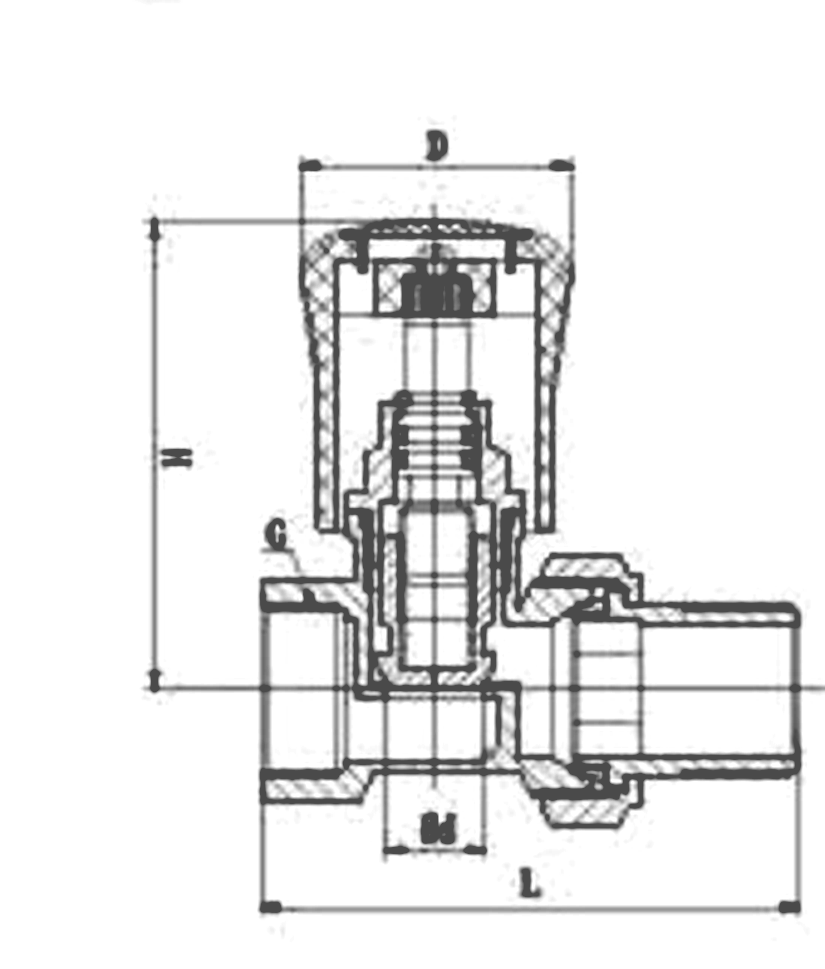

Main Dimensions
| DN | Size | L | d | H | D |
|---|---|---|---|---|---|
| 15 | 1/2" | 80.5 | 10 | 58 | 38 |
| 20 | 3/4" | 87.5 | 16 | 68 | 44 |
| 25 | 1" | 89 | 17 | 69 | 44 |
Technical Standard
| Item | Specification |
|---|---|
| Normal Pressure | 1.6 MPa |
| Working Medium | Water, heating |
| Working Temperature | T <= 120 C |
| Thread Standard | ISO 228 |
