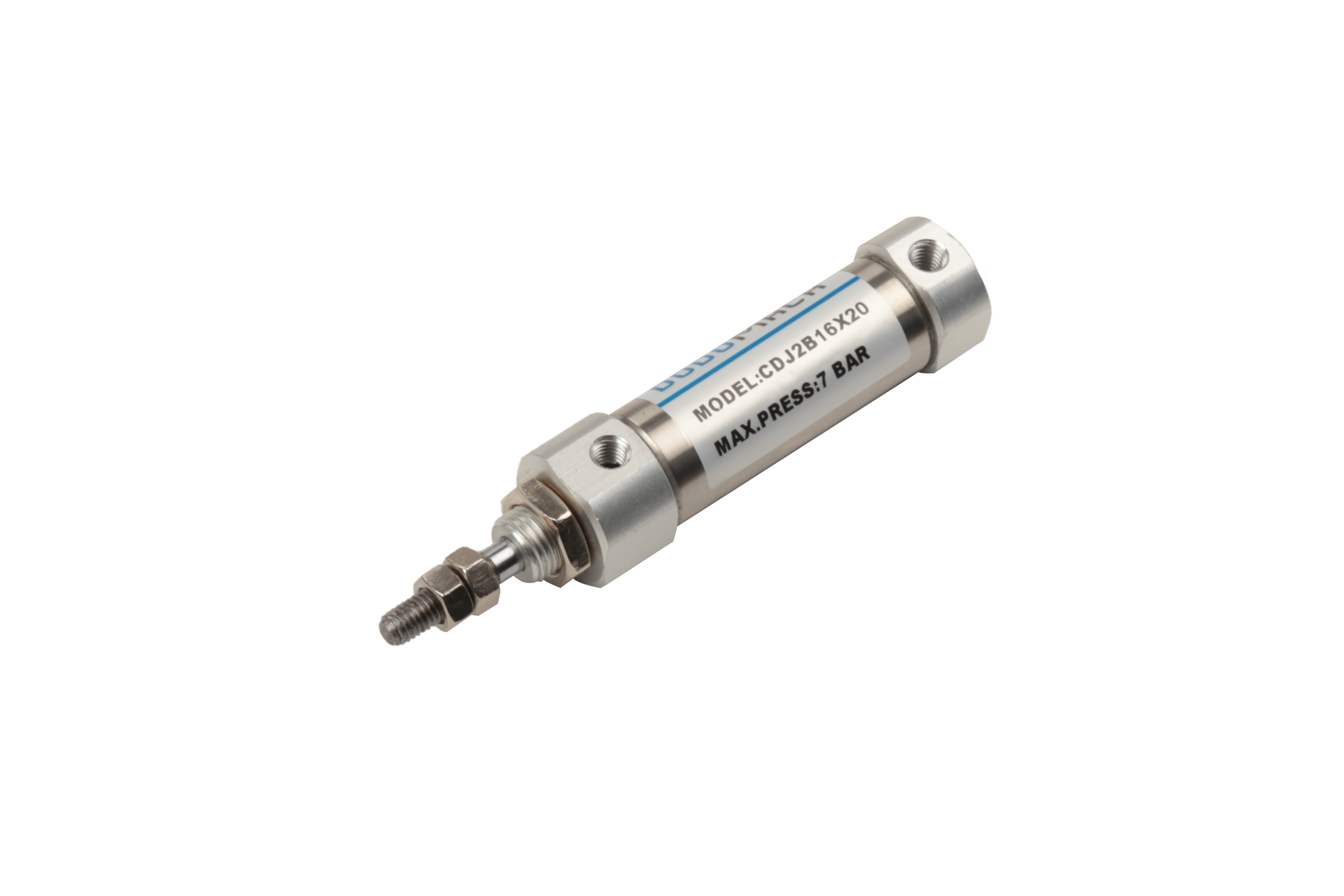

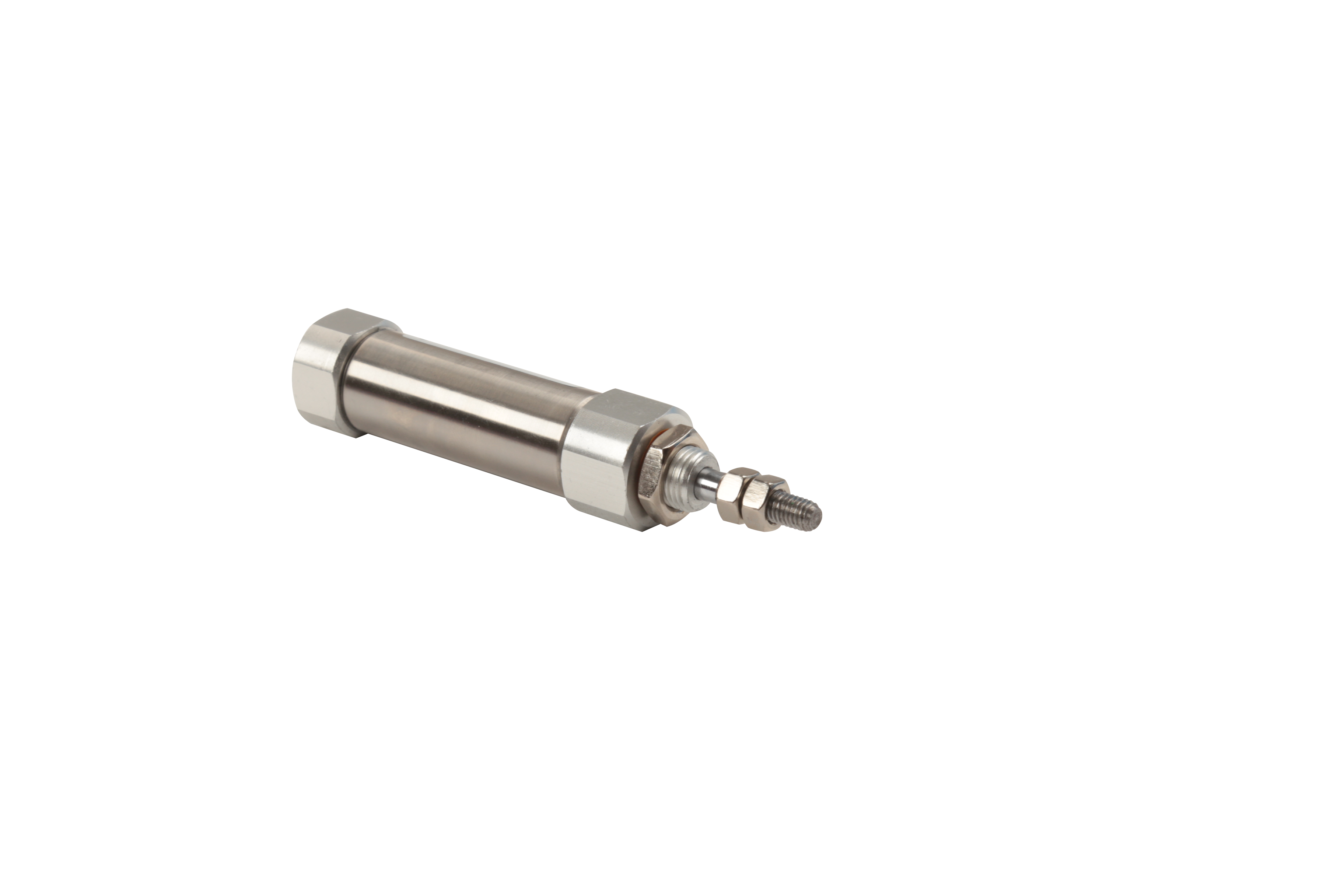

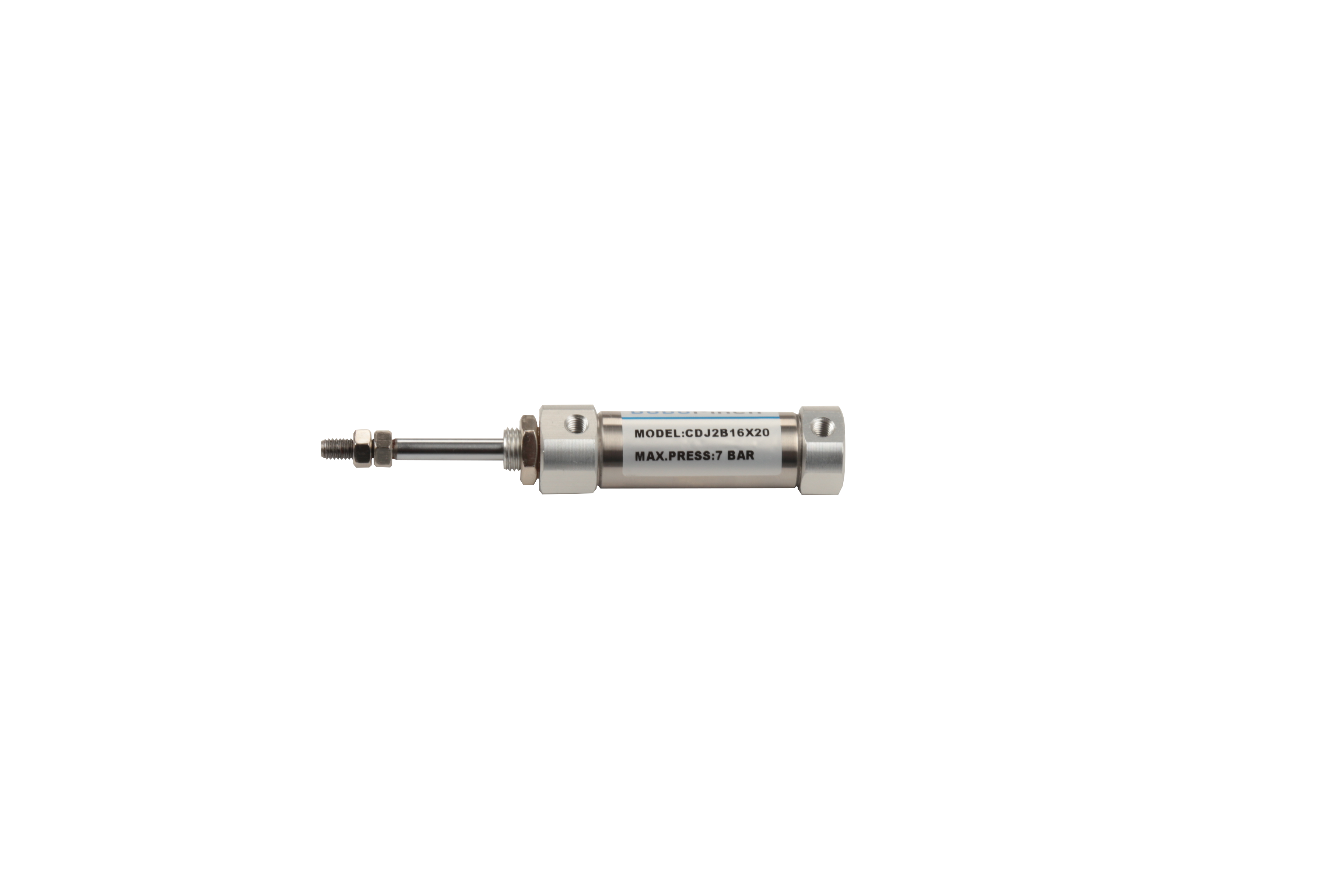

Ordering code
Specification
| Bore (mm) | 6 | 10 | 16 |
| Acting type | Double acting / Single acting | ||
| Working Medium | Air (To be filtered by 40μm filter element ) | ||
| Operating Pressure | 1~7 Bar | ||
| Proof Pressure | 10 Bar | ||
| Temperature Range | -10~70℃ | ||
| Cushion Type | Rubber bumper | Rubber bumper / Air cushion | |
| Operating Speed Range | Rubber bumper: 50~750 mm/s, Air cushion: 50~1000 mm/s | ||
| Port Size | M5×0.8 | ||
Dimension
CJ2B 6
CJ2B 10~16
| Bore | A | B | C | D | F | GA | GB | H | MM | NA | NB | NC | NDh8 | NN | S | SA | T | Z | ZA |
| 6 | 15 | 12 | 14 | 3 | 8 | 14.5 | 5 | 28 | M3x0.5 | 16 | 9.5 | 7 | 6 | M6x1.0 | 51.5 | 49 | 3 | 79.5 | 77 |
| 10 | 15 | 12 | 14 | 4 | 8 | 8 | 5 | 28 | M4 x 0.7 | 12.5 | 9.5 | – | 8 | M8 x1.0 | 46 | – | – | 74 | – |
| 16 | 15 | 18.3 | 20 | 5 | 8 | 8 | 5 | 28 | M5 x0.8 | 12.5 | 9.5 | – | 10 | M10 x 1.0 | 47 | – | – | 75 | – |
