Ordering Code

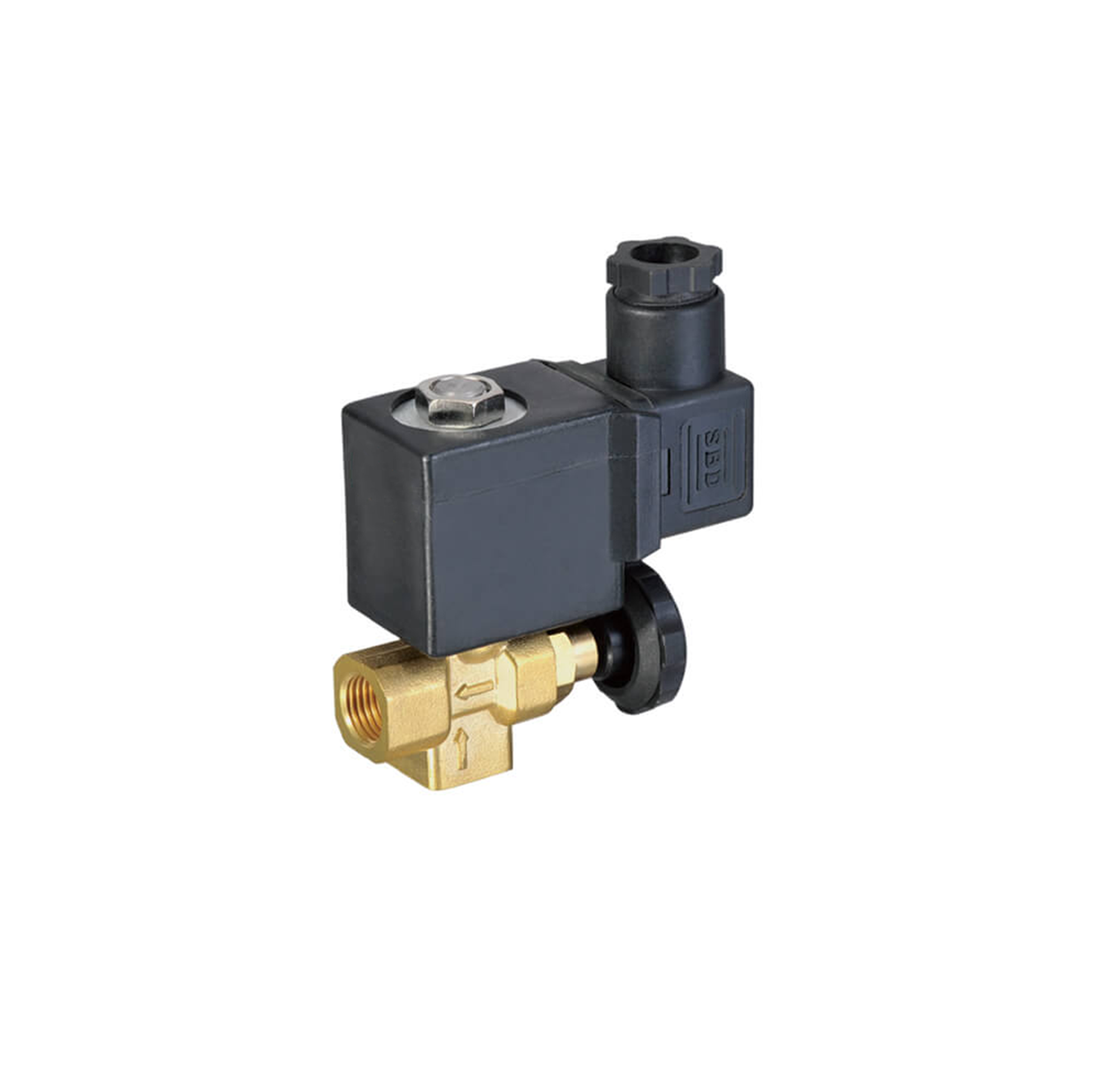

DL Specification
| Item | Description |
| Port Size | G1/4″ |
| Orifice Size | 2.0mm (to be customized) 2.7mm 3.0mm (to be customized) |
| Valve Material | Brass |
| Seal | VITON |
| Medium Temperature | -10°C~160℃ |
| Operating Pressure | 0~1.0MPa |
| Optional Voltage | 12V/50: DC12V; 24V/50; DC24V; 110/120V/50; 220/230V/50 |
