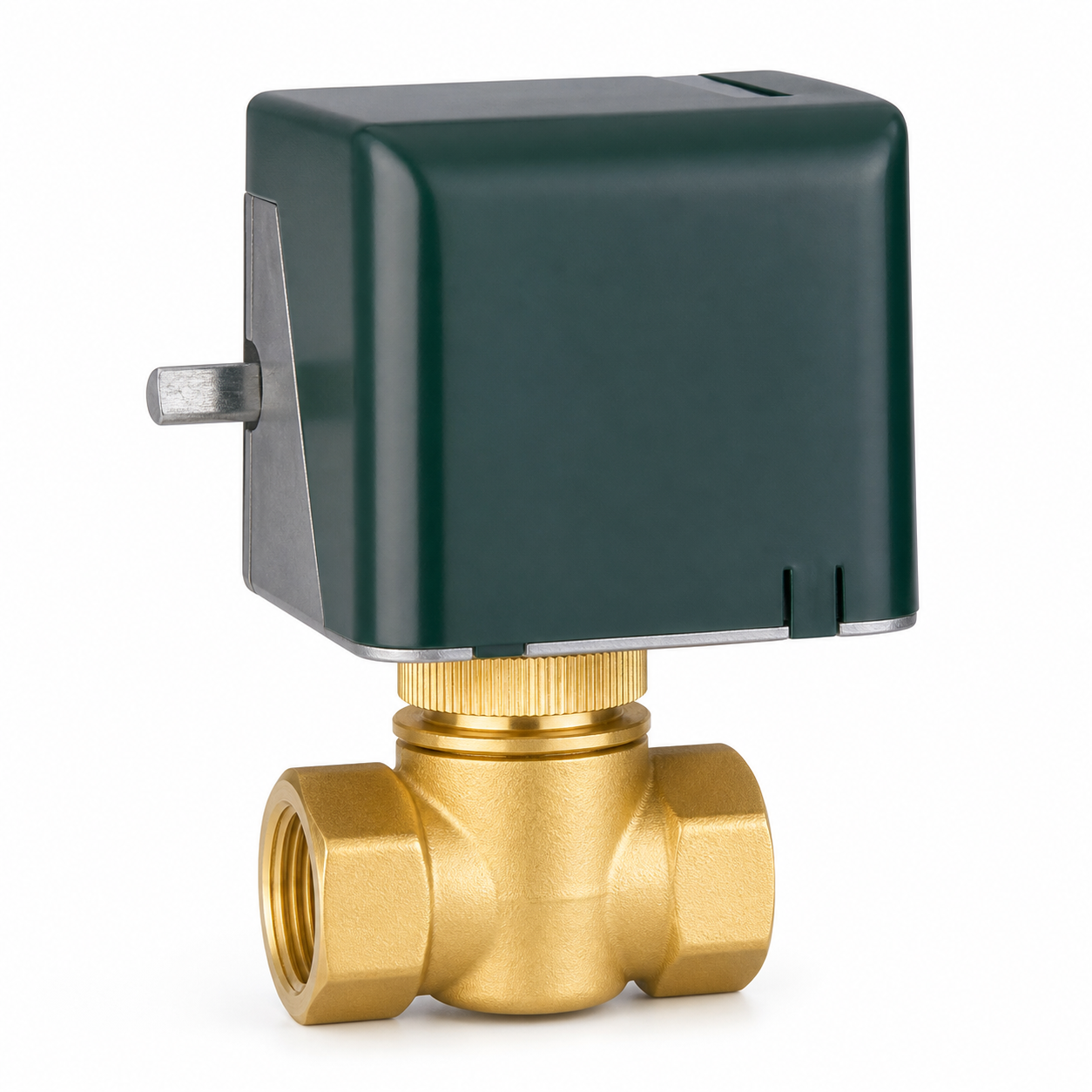

Electric two-way valve with green actuator for closed circulating water systems. It can be connected with a matching actuator for automatic fluid regulation and can be supplied as a valve body or as a complete assembled valve.
Control Function
The thermostat compares the measured room temperature through a heat-sensitive element and electronic logic circuit. When the room temperature exceeds the set value, the fan or electric valve starts automatically. When the indoor temperature reaches the set value, the fan or electric valve closes automatically to maintain stable indoor temperature.
Features
| Valve Body | Forged brass construction |
|---|---|
| Connection | Two-position internal threaded connection valve port |
| Medium Compatibility | Suitable for water with no more than 60% ethylene glycol |
| Actuator Connection | M30x1.5 mm |
| Installation Direction | Valve body arrow indicates fluid installation direction |
| Valve State | Normally open, with manual switching knob accessory |
Actuator Parameters
| Application Range | Single-phase three-speed fan-coil pipe and electric damper |
|---|---|
| Maximum Load | 400 W |
| Control Range | 10-30 C |
| Control Accuracy | +/-1 C |
| Self Power | 2 W |
| Working Power | 220 V AC +/-15%, 50 Hz |
| Working State | Switch position |
| Dimensions | 130 x 80 x 43 mm |
| Mounting Screw | 60 mm |
| Shell | Flame retardant |
Technical Parameters
| Voltage | 230 V (220 V), AC24 V, 110 V |
|---|---|
| Power Consumption | 2 VA |
| Thrust | 110 N |
| Stroke | 3 mm |
| Full Time | 3-5 min |
| Connection Size | M30x1.5 mm nut |
| Ambient Temperature | -5~60 C |
| Lead Length | 900 mm |
