M-LB

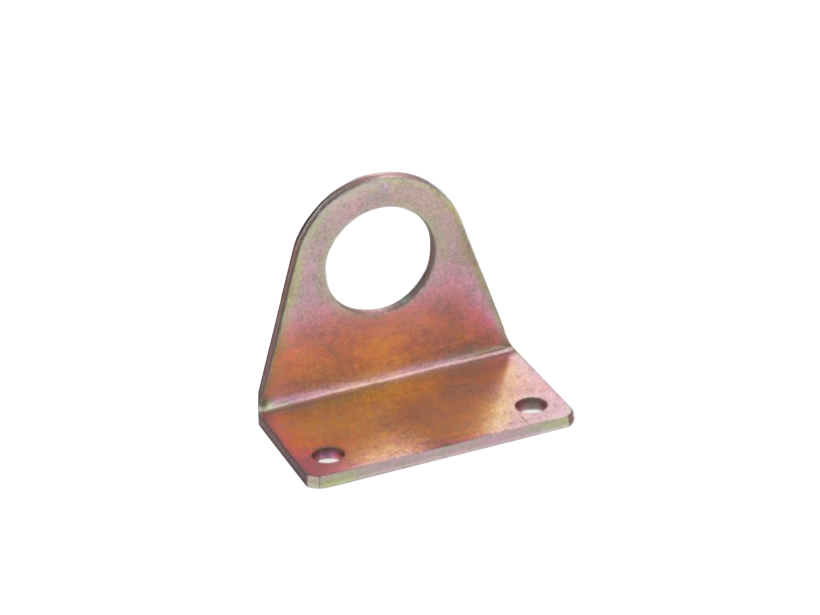

Model：M-LB
Standard: Mini cylinder
M-LB Dimension

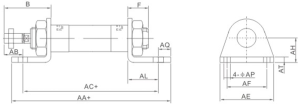

M-LB dimension
| Symbol |
B |
F |
AA(MA Series) |
AA(MAL Series) |
AA(MSA Series) |
AA(MSAL Series) |
AB |
AC(MA Series) |
AC(MAL Series) |
AC(MSA Series) |
AC(MSAL Series) |
AE |
AF |
AL |
AQ |
AP |
AT |
AH |
| Bore |
|
|
|
|
0-50 |
51-100 |
0-50 |
51-100 |
|
|
|
0-50 |
51-100 |
0-50 |
51-100 |
|
|
|
|
|
|
|
| 16 |
38.0 |
16.0 |
98.0 |
– |
98.0 |
123.0 |
– |
– |
25.0 |
86.0 |
– |
86.0 |
111.0 |
– |
– |
44.0 |
32.0 |
13.0 |
6.0 |
5.5 |
3.0 |
20.0 |
| 20 |
40.0 |
12.0 |
122.0 |
116.0 |
122.0 |
147.0 |
116.0 |
141.0 |
25.0 |
106.0 |
100.0 |
106.0 |
131.0 |
100.0 |
125.0 |
54.0 |
40.0 |
15.0 |
8.0 |
6.5 |
3.0 |
25.0 |
| 25 |
44.0 |
14.0 |
122.0 |
116.0 |
122.0 |
147.0 |
116.0 |
141.0 |
29.0 |
106.0 |
100.0 |
106.0 |
131.0 |
100.0 |
125.0 |
54.0 |
40.0 |
15.0 |
8.0 |
6.5 |
3.0 |
25.0 |
| 32 |
44.0 |
14.0 |
142.0 |
136.0 |
142.0 |
167.0 |
136.0 |
161.0 |
19.0 |
126.0 |
120.0 |
126.0 |
151.0 |
120.0 |
145.0 |
59.0 |
45.0 |
25.0 |
8.0 |
6.5 |
4.0 |
32.0 |
| 40 |
46.0 |
14.0 |
142.0 |
158.0 |
142.0 |
167.0 |
158.0 |
183.0 |
21.0 |
126.0 |
142.0 |
126.0 |
151.0 |
142.0 |
167.0 |
64.0 |
60.0 |
25.0 |
8.0 |
6.5 |
4.5 |
36.0 |
