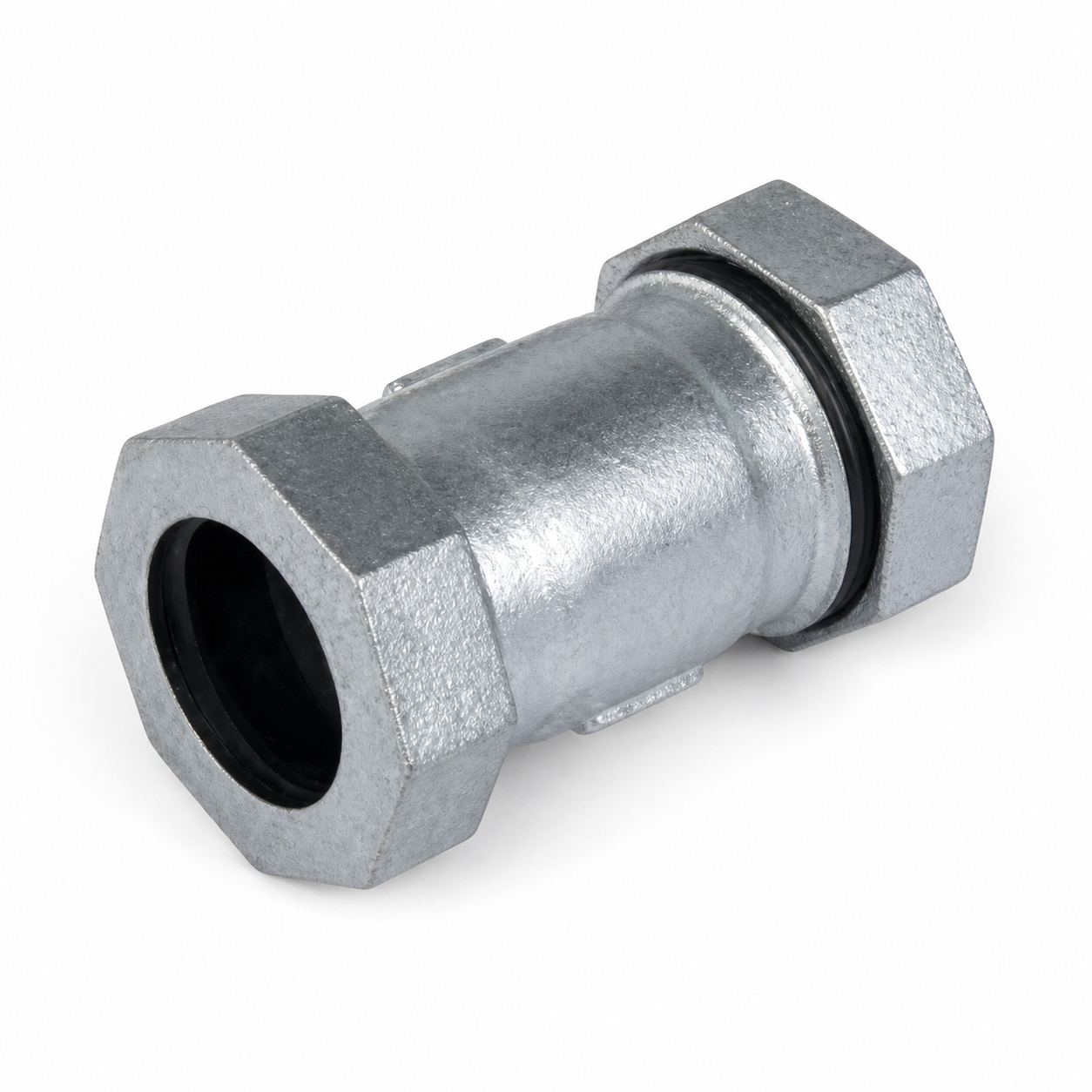

Malleable Iron Long Compression Coupling Fig.LCC
Galvanized malleable iron long compression coupling for joining pipe sections without threaded pipe ends.
Product Features
- Material: malleable iron
- Finish: black or galvanized
- Connection: compression coupling
- Body style: long compression coupling
- Catalog reference: Fig.LCC

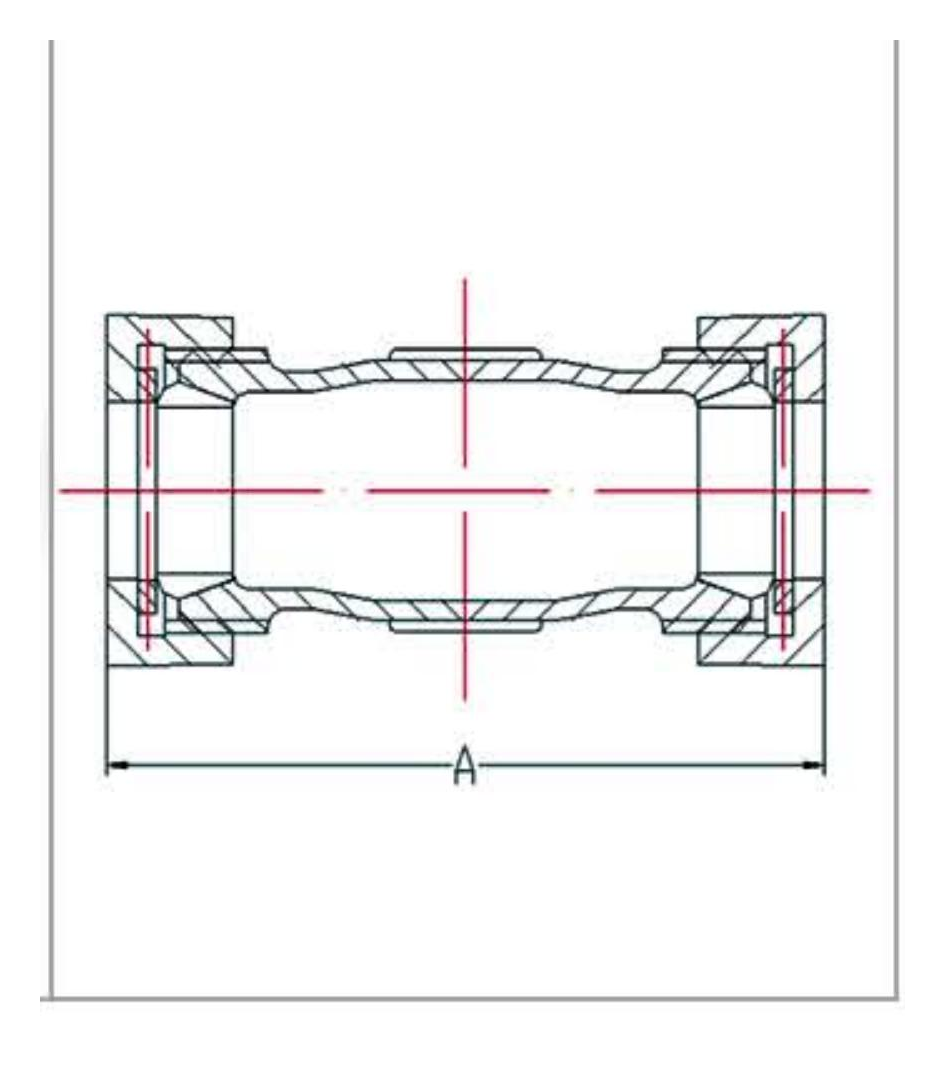

Dimensions and Packing
| Code | NPS | DN | A (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|
| JZGALLCC01 | 1/2 in. | 15 | 93 | 140 | ||
| JZGALLCC02 | 3/4 in. | 20 | 101 | 120 | ||
| JZGALLCC03 | 1 in. | 25 | 109 | 80 | ||
| JZGALLCC04 | 1-1/4 in. | 32 | 114 | 40 | ||
| JZGALLCC05 | 1-1/2 in. | 40 | 118 | 32 | ||
| JZGALLCC06 | 2 in. | 50 | 121 | 20 | ||
| JZGALLCC07 | 2-1/2 in. | 65 | 154 | / | ||
| JZGALLCC08 | 3 in. | 80 | 175 | / |
Standard Specification
- Material: malleable iron according to EN1562 / ISO5922.
- Dimensions: EN10242 / ISO49.
- Threads: EN10226 / ISO7-1.
- Minimum tensile strength: 350 MPa.
- Surface finish: black or hot-dip galvanized; galvanized zinc coating thickness approximately 70 um.
- Recommended working pressure: 363 PSI.
Product Details
| Product Type | Long compression coupling for pipe repair and joining applications |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
