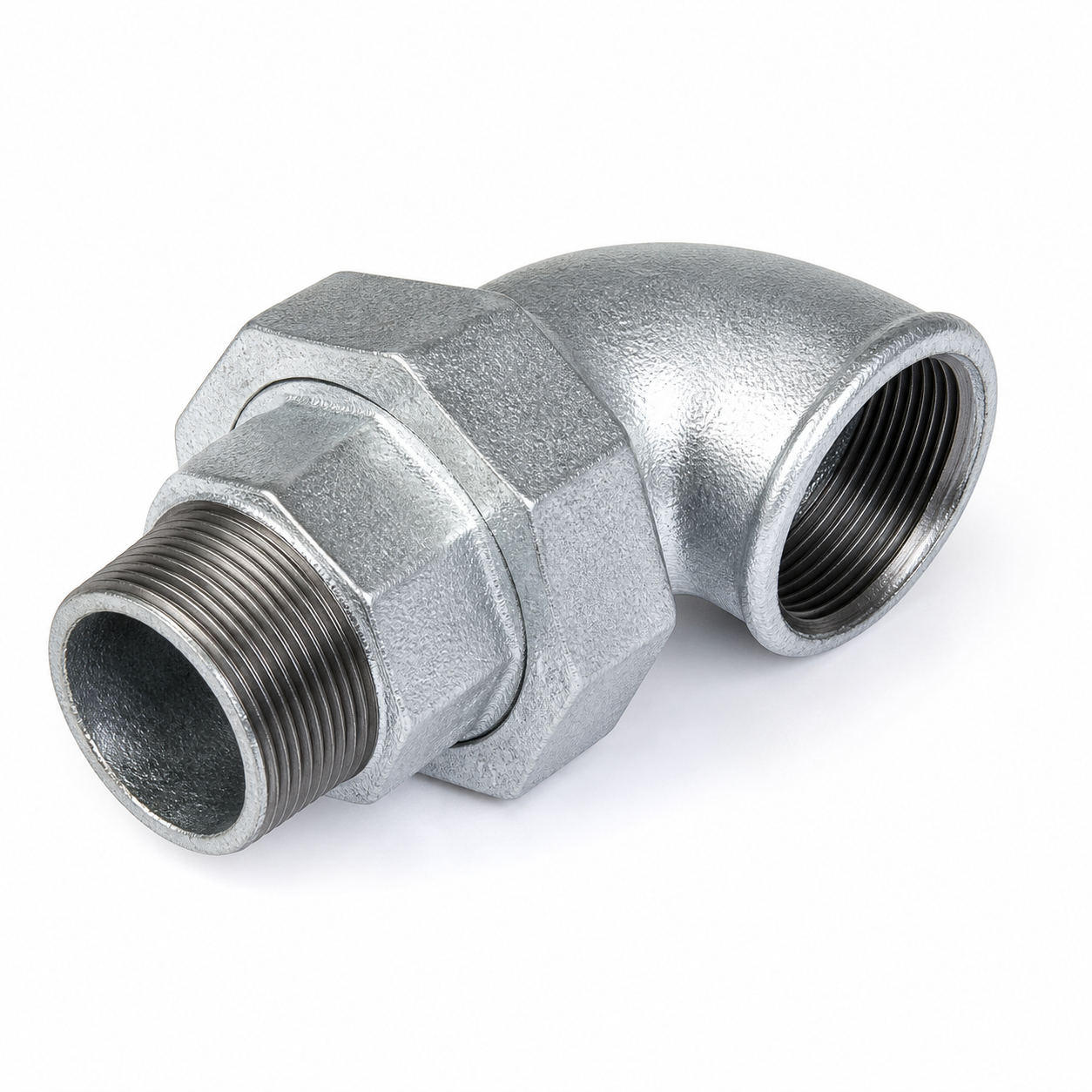

Malleable Iron M&F Conical Union Elbow Fig.98
Fig.98 is a galvanized malleable iron M&F conical union elbow. It provides a serviceable right-angle union connection with one male threaded end and one female threaded opening.
Key Features
- M&F conical union elbow configuration.
- One male threaded end and one female threaded opening.
- Union nut supports convenient installation and disassembly.
- Available in sizes from 1/2 in. to 2 in.
Standard Specifications
- Material: EN1562 or ISO5922.
- Design and dimensions: EN10242 or ISO49.
- Threads: EN10226 or ISO7-1.
- Tensile strength: 350 MPa.
- Elongation: 10%.
- Zinc coating: 70 um.
- Working pressure: 363 PSI.
- Available size range: 1/8 in. to 6 in.
- Surface treatment: hot-dip galvanized, electrogalvanization, black.

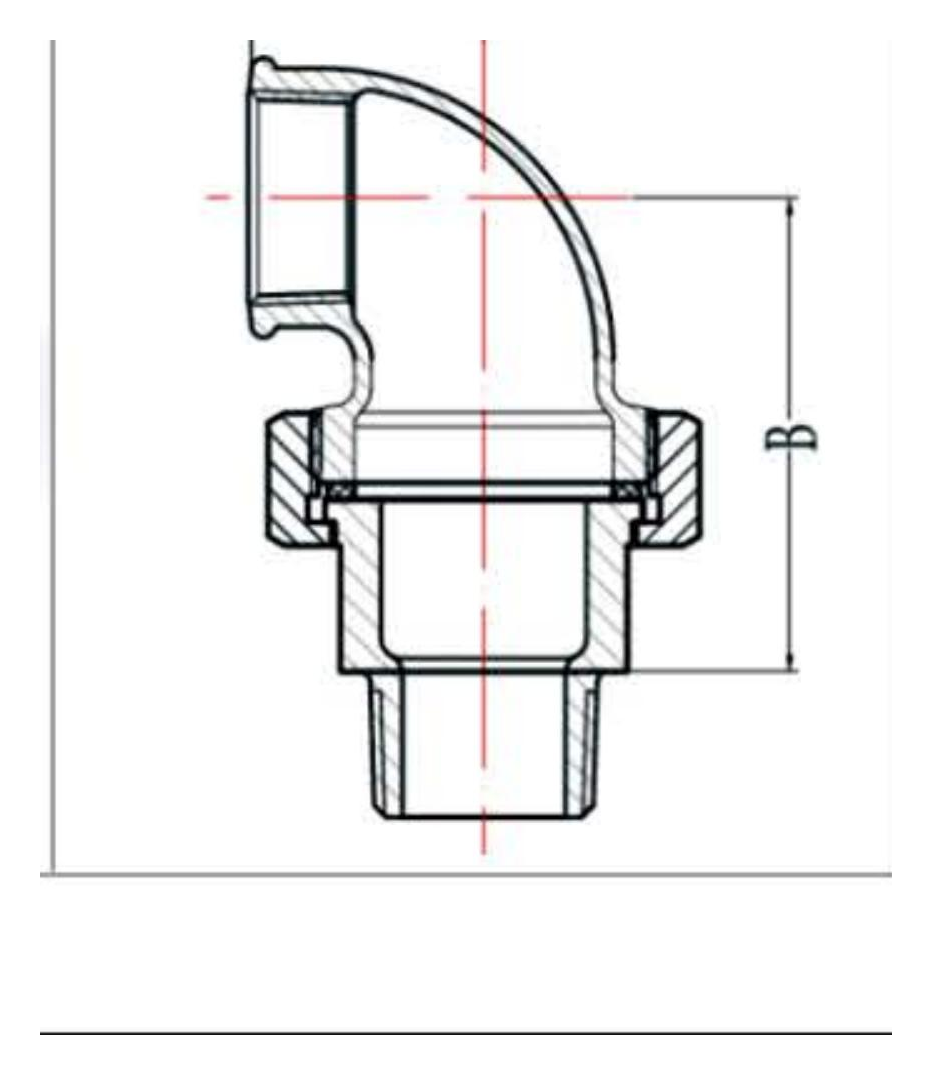

Dimensions and Packing
| Code | NPS | DN | A (mm) | B (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|---|
| JZGAL9801 | 1/2 in. | 15 | 27 | 67.5 | 247.94 | 253 | 60 |
| JZGAL9802 | 3/4 in. | 20 | 32 | 77 | 384.16 | 392 | 40 |
| JZGAL9803 | 1 in. | 25 | 37 | 86.5 | 495.88 | 506 | 30 |
| JZGAL9804 | 1-1/4 in. | 32 | 44.5 | 99.5 | 895.72 | 914 | 20 |
| JZGAL9805 | 1-1/2 in. | 40 | 48.5 | 107 | 1017.24 | 1038 | 16 |
| JZGAL9806 | 2 in. | 50 | 57 | 122 | 1724.8 | 1760 | 10 |
Product Details
| Product Type | Male and female conical union elbow for detachable directional pipe connection |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
