Malleable Iron Union Conical Brass Seat Fig.342

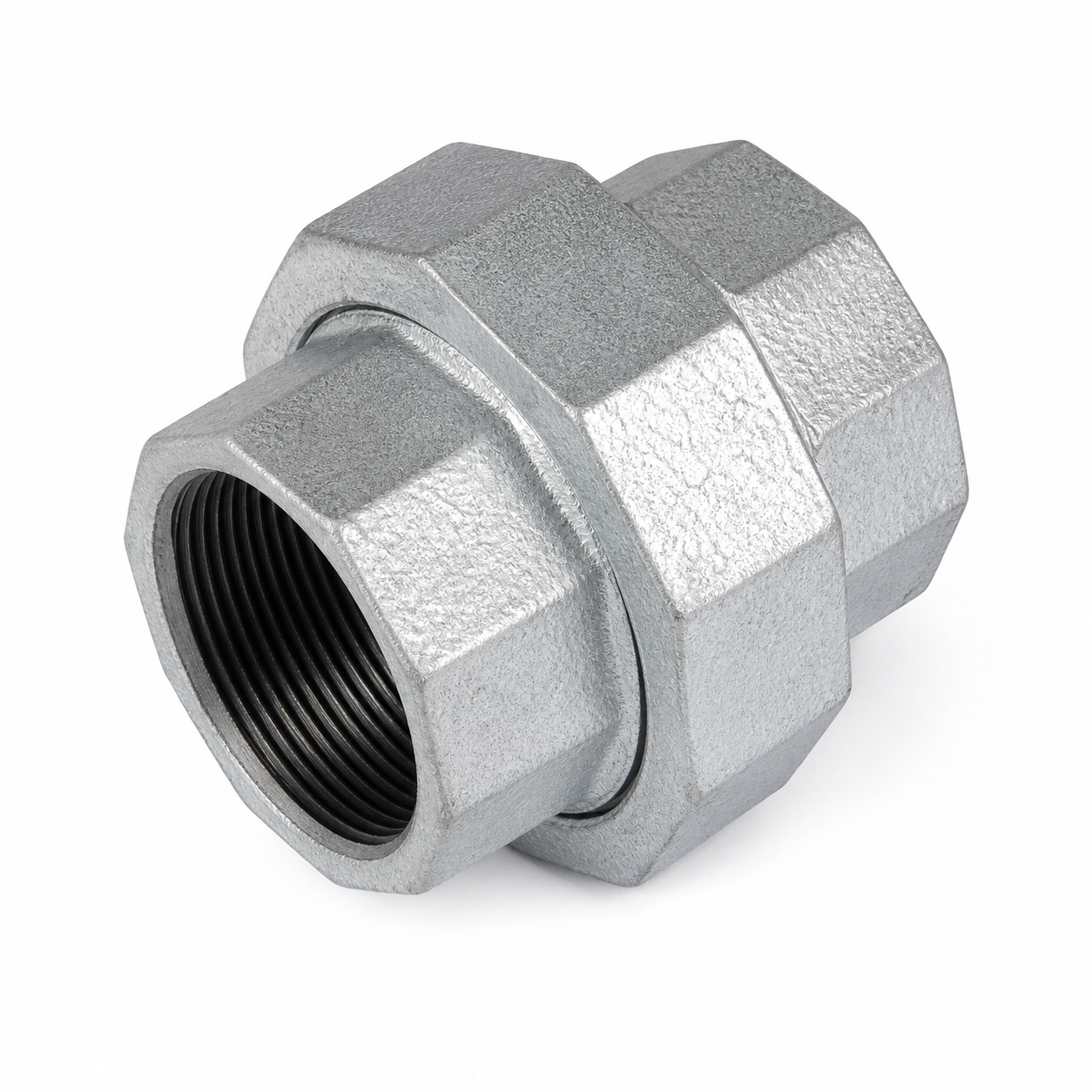

Galvanized malleable iron union with conical brass seat and female threaded ends for removable pipe connections.
Product Features
- Material: malleable iron
- Finish: black or galvanized
- Connection: female threaded union
- Seat type: conical brass seat
- Catalog reference: Fig.342
Dimensions and Packing

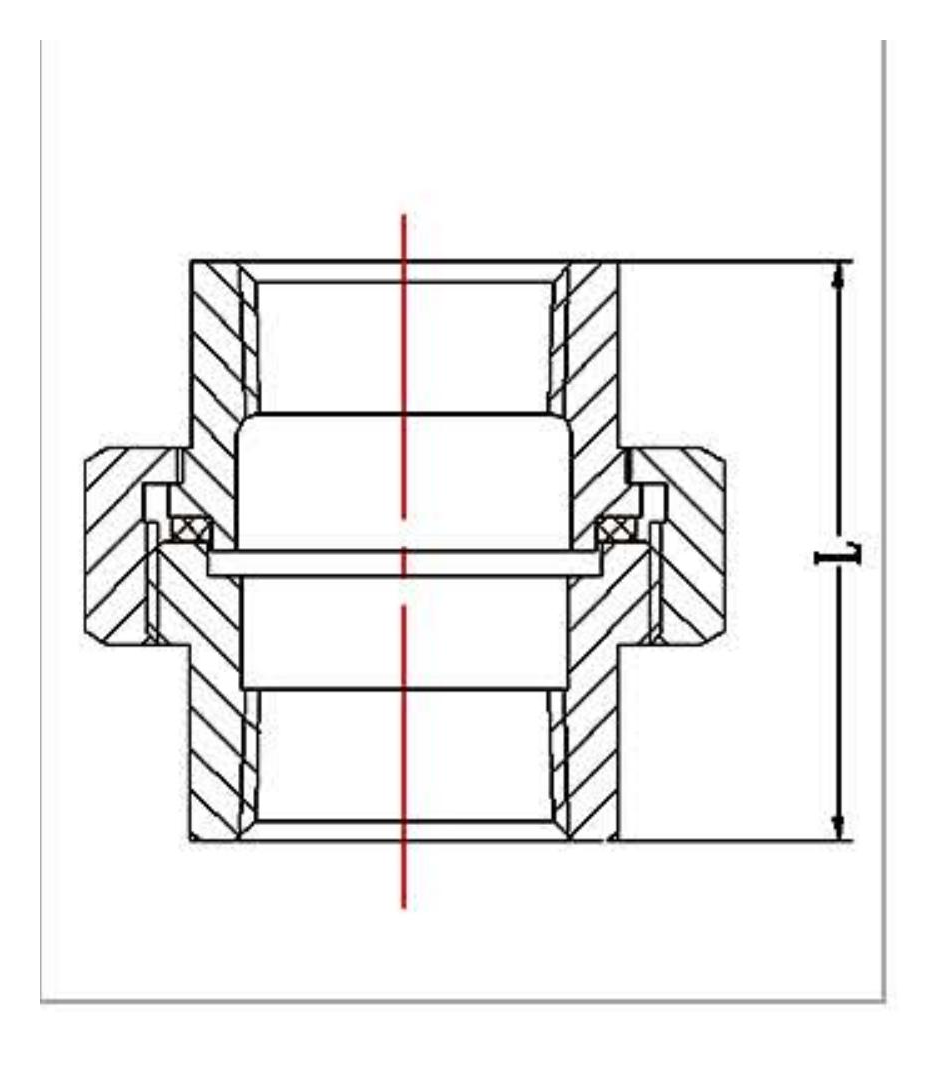

| Code | NPS | DN | L (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|
| JZGAL34201 | 1/4 in. | 8 | 42 | 104.86 | 107 | 200 |
| JZGAL34202 | 3/8 in. | 10 | 45 | 143.08 | 146 | 200 |
| JZGAL34203 | 1/2 in. | 15 | 47 | 168.56 | 172 | 180 |
| JZGAL34204 | 3/4 in. | 20 | 51 | 256.76 | 262 | 120 |
| JZGAL34205 | 1 in. | 25 | 56.5 | 333.2 | 340 | 88 |
| JZGAL34206 | 1-1/4 in. | 32 | 64 | 583.1 | 595 | 56 |
| JZGAL34207 | 1-1/2 in. | 40 | 70 | 731.08 | 746 | 36 |
| JZGAL34208 | 2 in. | 50 | 78.5 | 1058.4 | 1080 | 28 |
| JZGAL34209 | 2-1/2 in. | 65 | 84.5 | 1804.18 | 1841 | 12 |
| JZGAL34210 | 3 in. | 80 | 94 | 2314.76 | 2362 | 10 |
| JZGAL34211 | 4 in. | 100 | 110 | 3731.84 | 3808 | 6 |
Standard Specification
- Material: malleable iron according to EN1562 / ISO5922.
- Dimensions: EN10242 / ISO49.
- Threads: EN10226 / ISO7-1.
- Minimum tensile strength: 350 MPa.
- Surface finish: black or hot-dip galvanized; galvanized zinc coating thickness approximately 70 um.
- Recommended working pressure: 363 PSI.
Product Details
| Product Type | Conical brass seat union for detachable threaded pipe connection |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
