Malleable Iron Union Elbow Flat Seat Fig.95

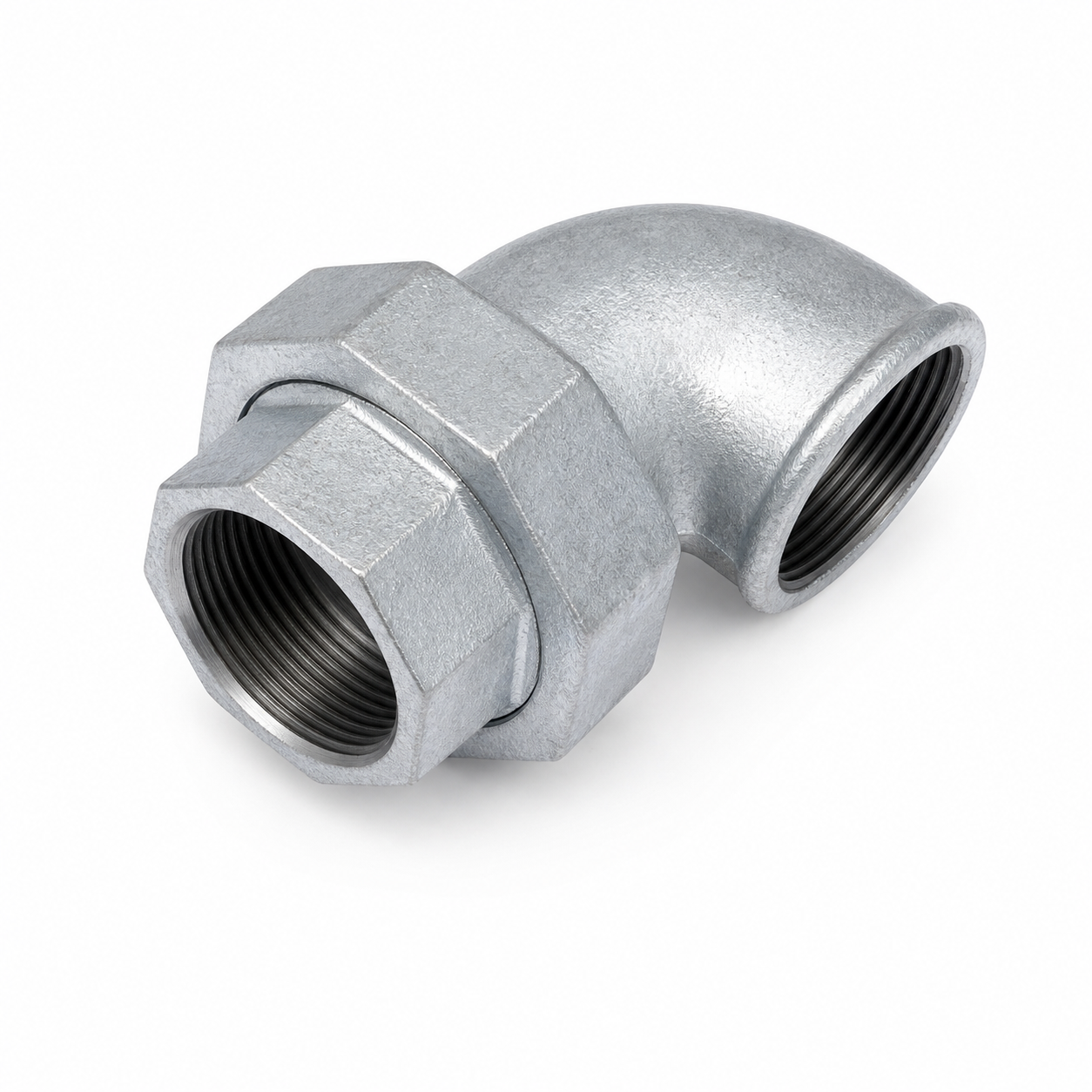

Fig.95 is a galvanized malleable iron union elbow with a flat seat. The union design supports convenient assembly and maintenance in threaded pipe systems.
Key Features
- Union elbow with flat seat design.
- Galvanized malleable iron body with threaded connections.
- Union nut allows easier installation and maintenance.
- Available in sizes from 1/2 in. to 2 in.
Standard Specifications
- Material: EN1562 or ISO5922.
- Design and dimensions: EN10242 or ISO49.
- Threads: EN10226 or ISO7-1.
- Tensile strength: 350 MPa.
- Elongation: 10%.
- Zinc coating: 70 um.
- Working pressure: 363 PSI.
- Available size range: 1/8 in. to 6 in.
- Surface treatment: hot-dip galvanized, electrogalvanization, black.

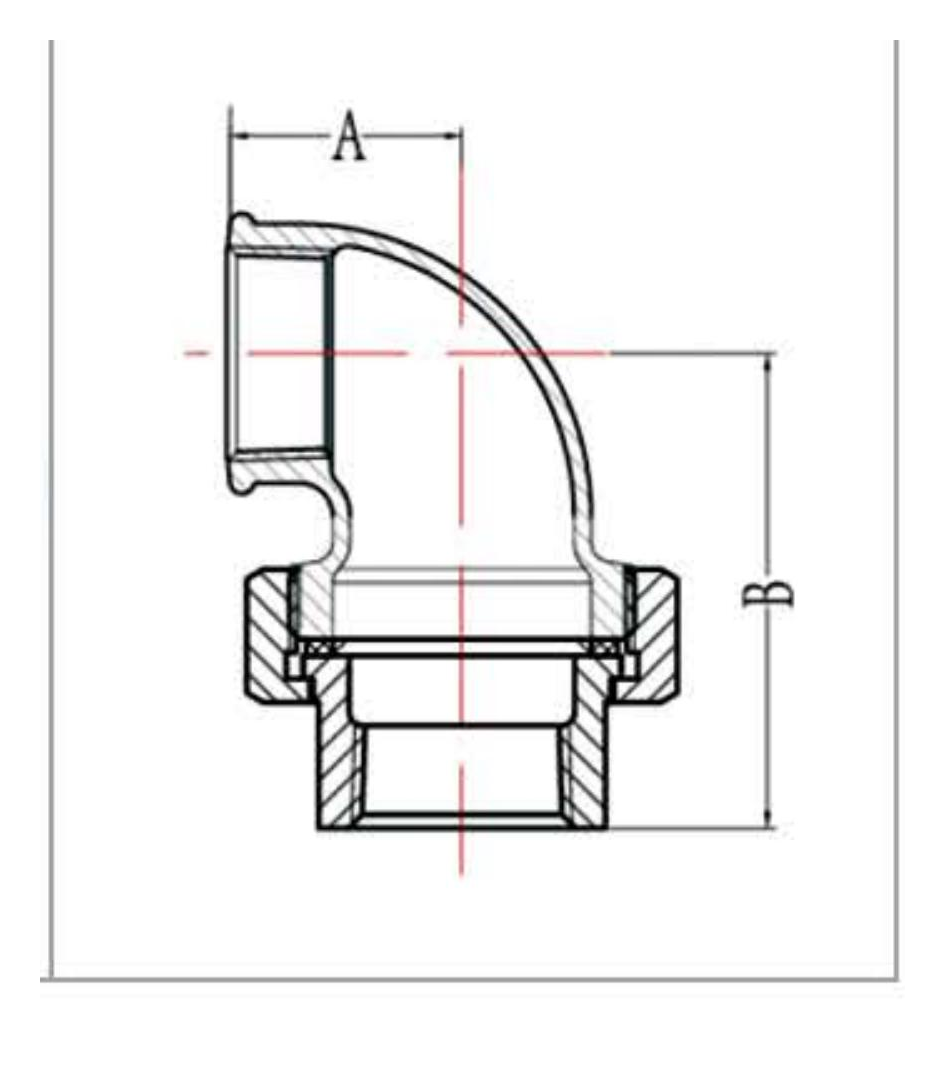

Dimensions and Packing
| Code | NPS | DN | A (mm) | B (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|---|
| JZGAL9501 | 1/2 in. | 15 | 24.5 | 54 | 194.04 | 198 | 60 |
| JZGAL9502 | 3/4 in. | 20 | 29 | 60 | 303.8 | 310 | 40 |
| JZGAL9503 | 1 in. | 25 | 35 | 68 | 471.38 | 481 | 30 |
| JZGAL9504 | 1-1/4 in. | 32 | 42 | 80 | 703.64 | 718 | 20 |
| JZGAL9505 | 1-1/2 in. | 40 | 45.5 | 86 | 873.18 | 891 | 18 |
| JZGAL9506 | 2 in. | 50 | 53.5 | 97 | 1327.9 | 1355 | 10 |
Product Details
| Product Type | Union elbow with flat seat for detachable directional pipe connection |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
