Malleable Iron Union Elbow Flat Seat M&F Fig.97

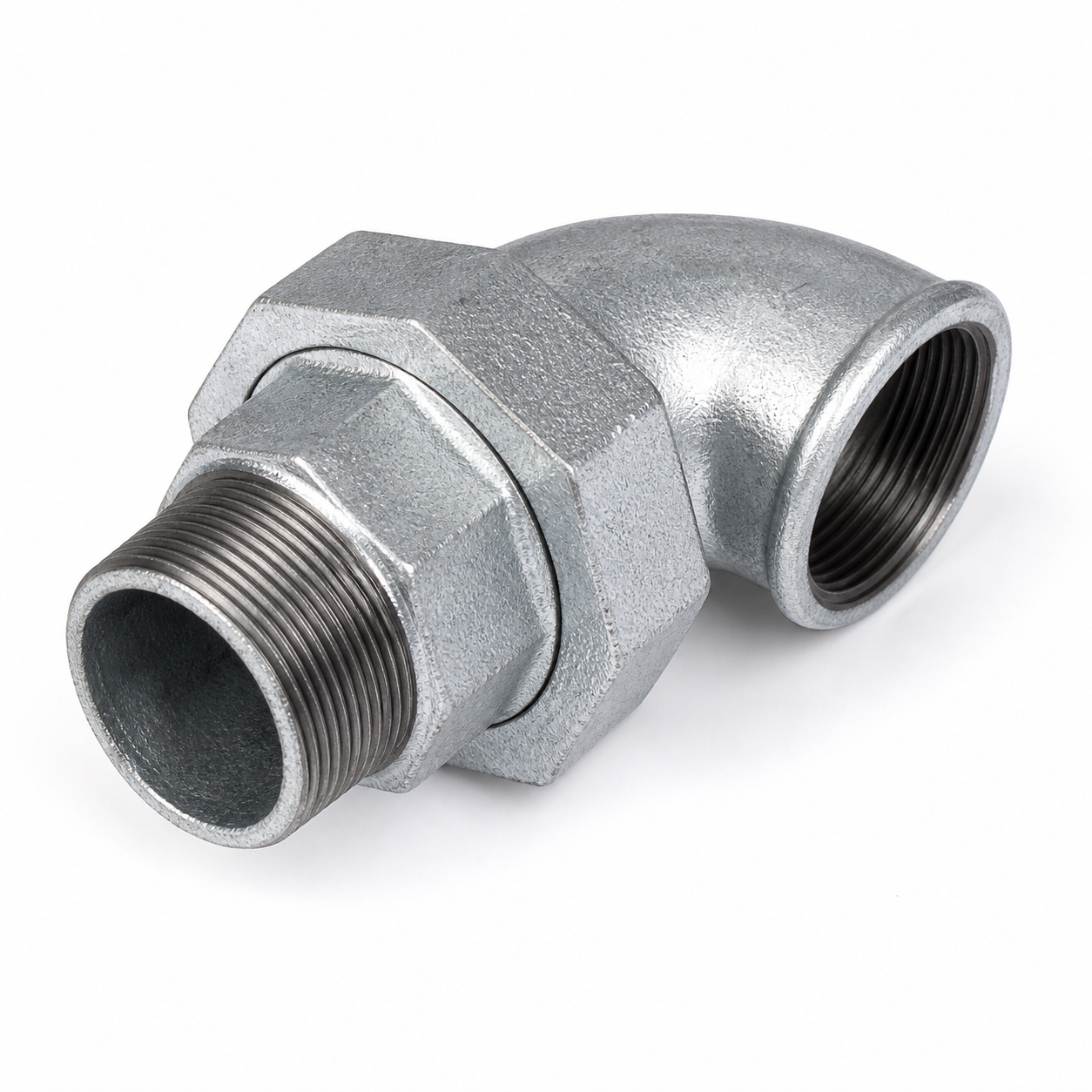

Fig.97 is a galvanized malleable iron union elbow with flat seat and M&F threaded connection. The union nut supports easier installation and maintenance in threaded pipe systems.
Key Features
- Flat seat M&F union elbow design.
- One male threaded end and one female threaded opening.
- Galvanized malleable iron body for threaded pipe systems.
- Available in sizes from 1/2 in. to 2 in.
Standard Specifications
- Material: EN1562 or ISO5922.
- Design and dimensions: EN10242 or ISO49.
- Threads: EN10226 or ISO7-1.
- Tensile strength: 350 MPa.
- Elongation: 10%.
- Zinc coating: 70 um.
- Working pressure: 363 PSI.
- Available size range: 1/8 in. to 6 in.
- Surface treatment: hot-dip galvanized, electrogalvanization, black.
Dimensions and Packing

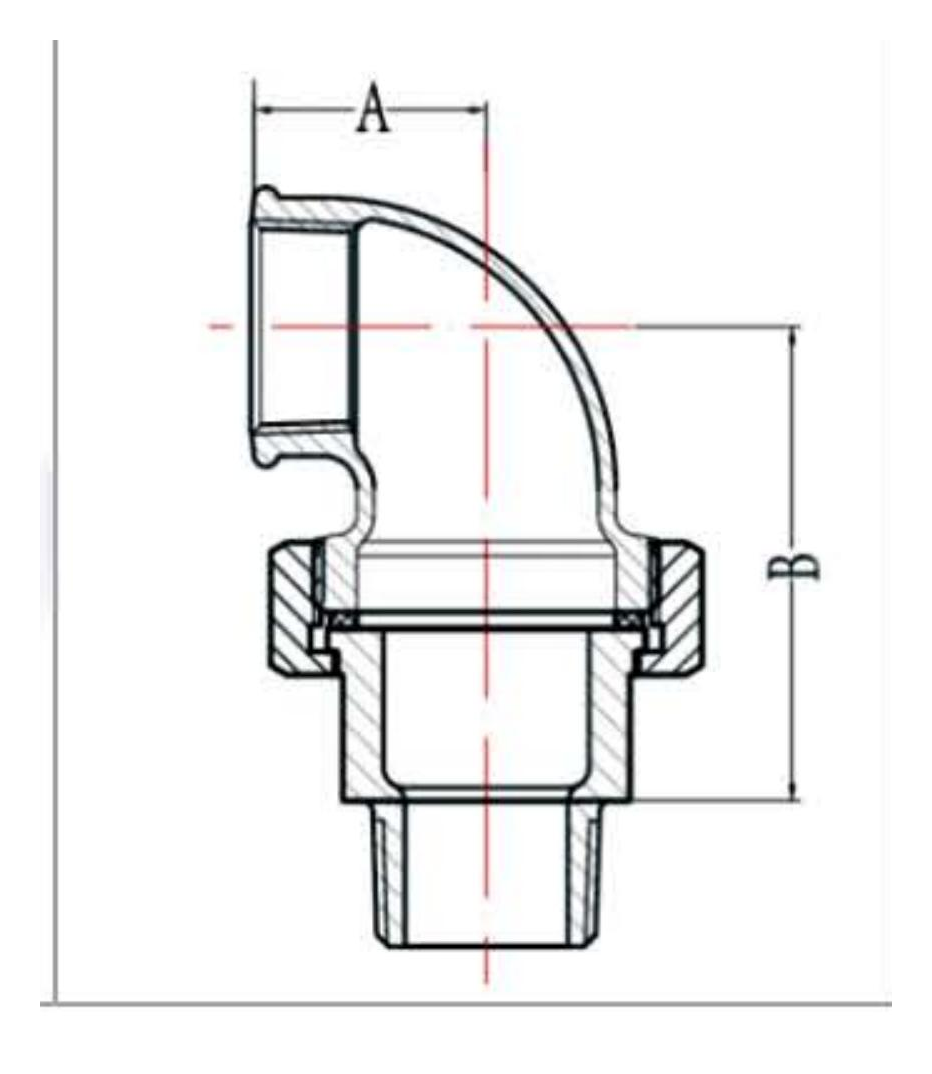

| Code | NPS | DN | A (mm) | B (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|---|
| JZGAL9701 | 1/2 in. | 15 | 24.5 | 72 | 220.5 | 225 | 60 |
| JZGAL9702 | 3/4 in. | 20 | 29 | 80 | 328.3 | 335 | 40 |
| JZGAL9703 | 1 in. | 25 | 35 | 90 | 517.44 | 528 | 30 |
| JZGAL9704 | 1-1/4 in. | 32 | 42 | 105 | 770.28 | 786 | 20 |
| JZGAL9705 | 1-1/2 in. | 40 | 45.5 | 111 | 969.22 | 989 | 16 |
| JZGAL9706 | 2 in. | 50 | 53.5 | 125 | 1473.92 | 1504 | 10 |
Product Details
| Product Type | Male and female union elbow with flat seat for detachable directional pipe connection |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
