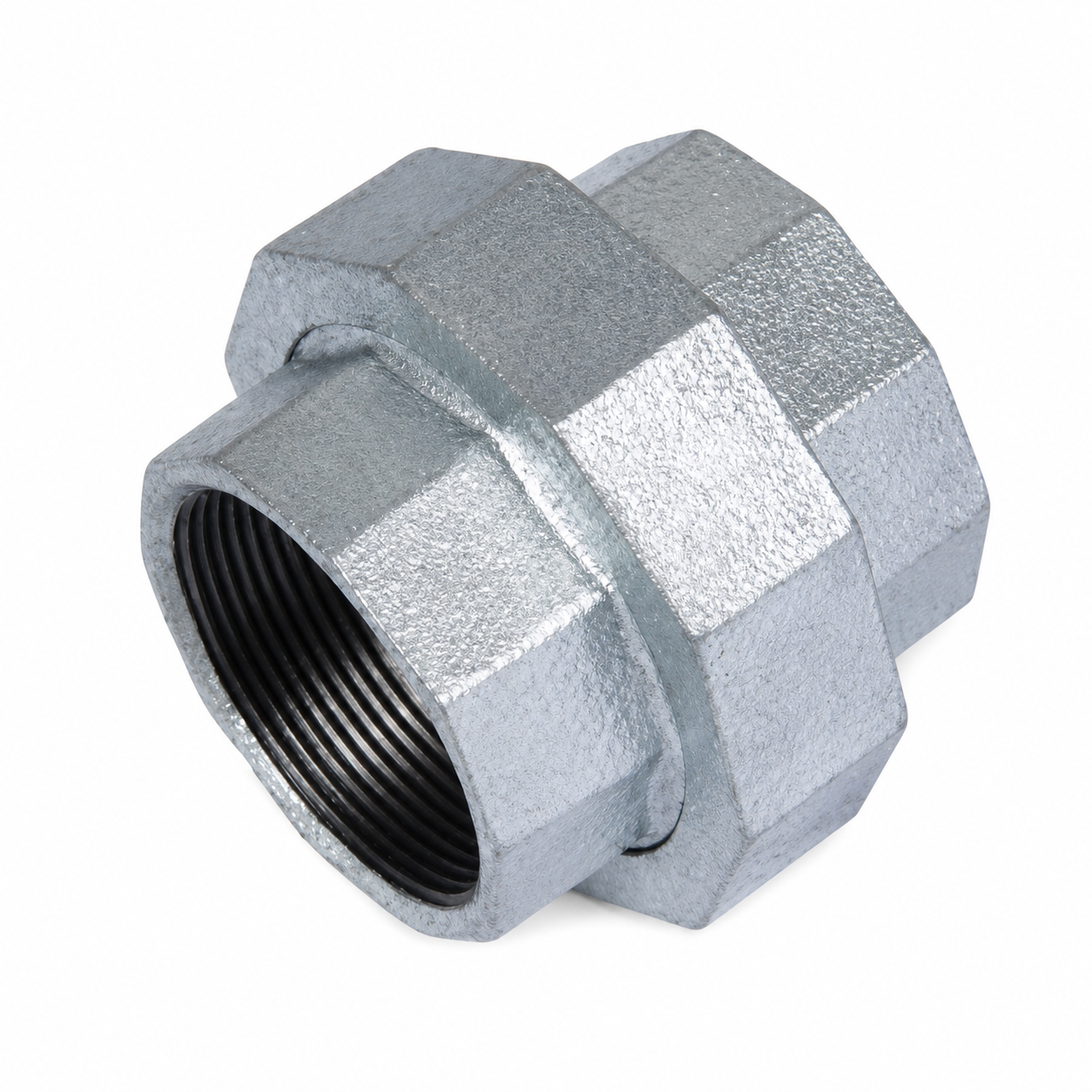

Malleable Iron Union Flat Seat Fig.330
Galvanized malleable iron union with flat seat and female threaded ends for removable pipe connections.
Product Features
- Material: malleable iron
- Finish: black or galvanized
- Connection: female threaded union
- Seat type: flat seat
- Catalog reference: Fig.330

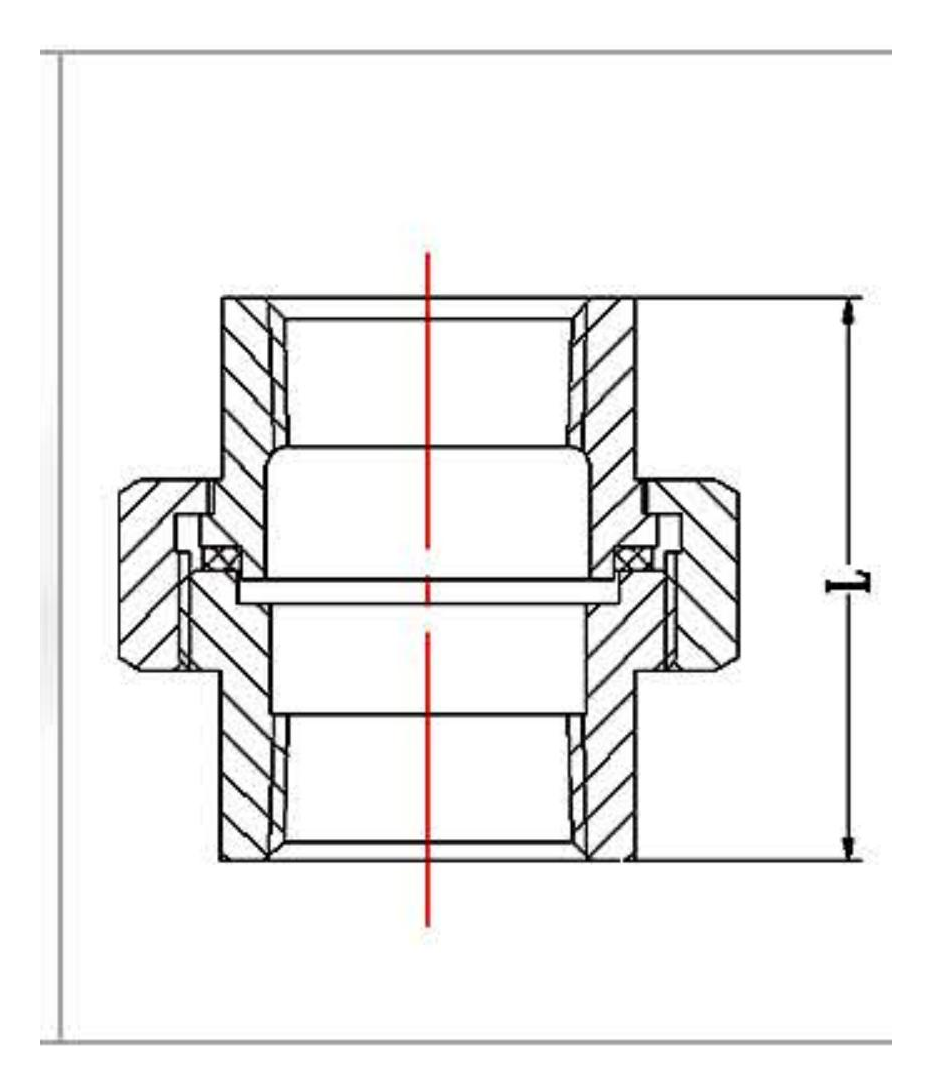

Dimensions and Packing
| Code | NPS | DN | L (mm) | Unit Weight Black (g) | Unit Weight Galv. (g) | Packing Carton (pcs/ctn) |
|---|---|---|---|---|---|---|
| JZGAL33001 | 3/8 in. | 10 | 39 | 156.8 | 160 | 280 |
| JZGAL33002 | 1/2 in. | 15 | 46 | 200.9 | 205 | 180 |
| JZGAL33003 | 3/4 in. | 20 | 50 | 265.58 | 271 | 120 |
| JZGAL33004 | 1 in. | 25 | 56 | 392 | 400 | 88 |
| JZGAL33005 | 1-1/4 in. | 32 | 63 | 583.1 | 595 | 56 |
| JZGAL33006 | 1-1/2 in. | 40 | 68 | 733.04 | 748 | 36 |
| JZGAL33007 | 2 in. | 50 | 76 | 1056.44 | 1078 | 28 |
| JZGAL33008 | 2-1/2 in. | 65 | 83 | 1675.8 | 1710 | 12 |
| JZGAL33009 | 3 in. | 80 | 80 | 2175.6 | 2220 | 10 |
| JZGAL33010 | 4 in. | 100 | 100 | 3724 | 3800 | 6 |
Standard Specification
- Material: malleable iron according to EN1562 / ISO5922.
- Dimensions: EN10242 / ISO49.
- Threads: EN10226 / ISO7-1.
- Minimum tensile strength: 350 MPa.
- Surface finish: black or hot-dip galvanized; galvanized zinc coating thickness approximately 70 um.
- Recommended working pressure: 363 PSI.
Product Details
| Product Type | Flat seat union for detachable threaded pipe connection |
|---|---|
| Material | Malleable iron |
| Connection | Threaded pipe fitting connection |
| Dimension Data | Size, thread, length and packing information are listed in the dimensions table above |
| Applications | Water, air, gas and general industrial pipe installations |
| Ordering Note | Confirm size, thread standard, finish and packing requirement when sending an inquiry |
