Product Details

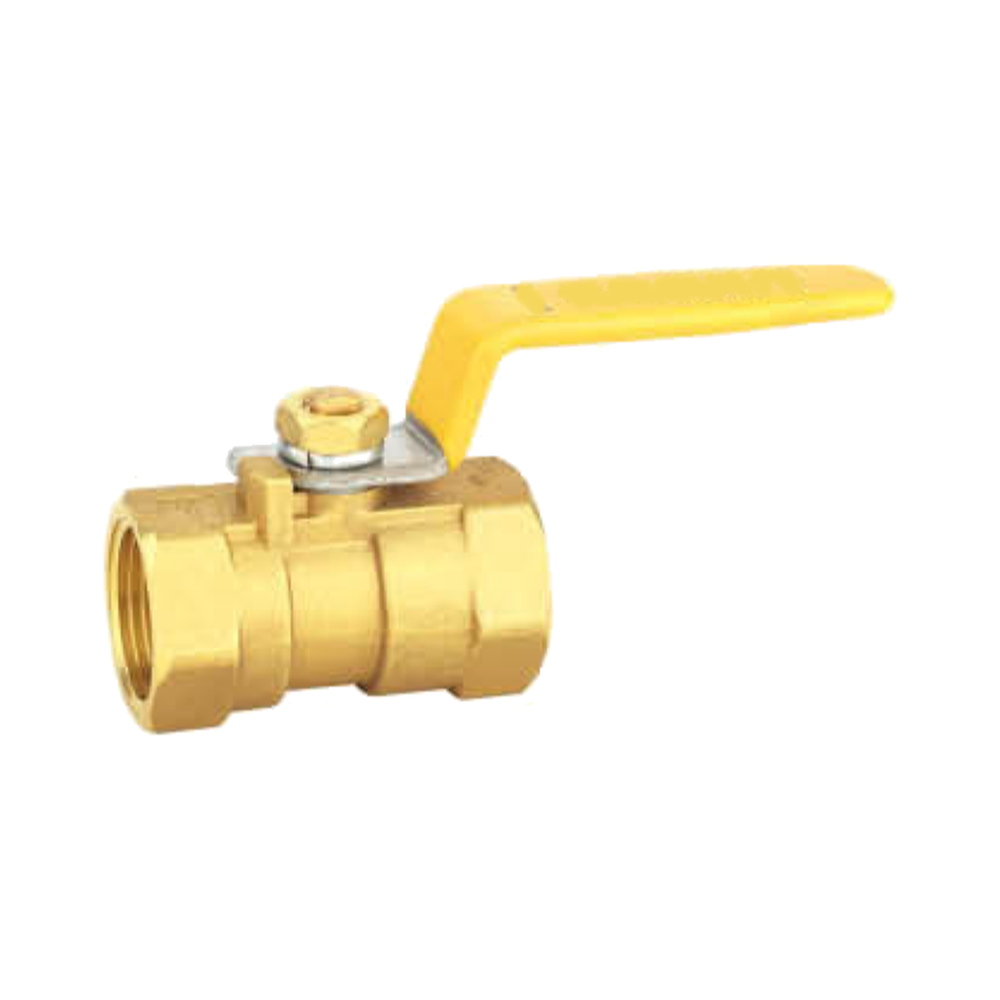

| Product Type | One piece brass ball valve |
|---|---|
| Connection | Female thread x female thread |
| Handle Type | Long handle |
| Application | Water, slight corrosive gas and liquid, and drinkable water service |
Technical Data
| Normal Pressure | 1.6 MPa |
|---|---|
| Working Medium | Slight corrosive gas and liquid, drinkable water |
| Working Temperature | -20°C ≤ T ≤ 110°C |
| Thread Standard | ISO 7 |

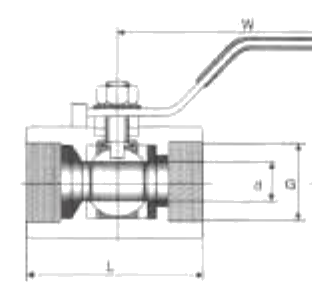

Dimensions
| DN | Size | L | d | H | W |
|---|---|---|---|---|---|
| 8 | 1/4″ | 40 | 5 | 28 | 70 |
| 10 | 3/8″ | 45 | 7 | 30 | 70 |
| 15 | 1/2″ | 55 | 9 | 34 | 90 |
| 20 | 3/4″ | 60 | 12 | 38 | 90 |
| 25 | 1″ | 70 | 15 | 50 | 110 |
| 32 | 1 1/4″ | 80 | 20 | 56 | 120 |
| 40 | 1 1/2″ | 86 | 25 | 60 | 130 |
| 50 | 2″ | 101 | 32 | 65 | 140 |
| 65 | 2 1/2″ | 117 | 38 | 72 | 170 |
| 80 | 3″ | 140 | 50 | 105 | 185 |
