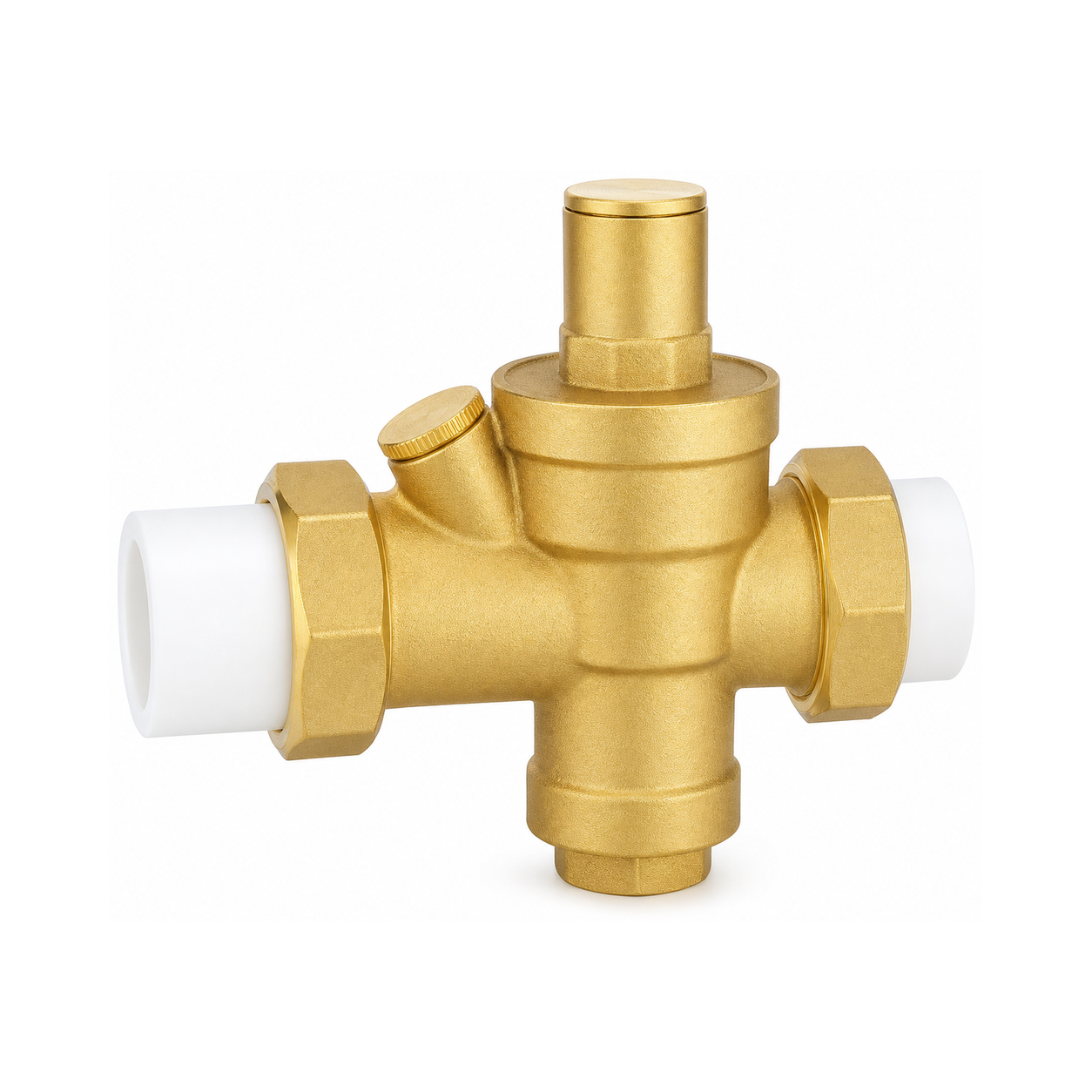

PP-R brass pressure reducing valve for water supply systems, with brass regulating body, top adjustment cylinder, angled side port cap, and PP-R union connections.

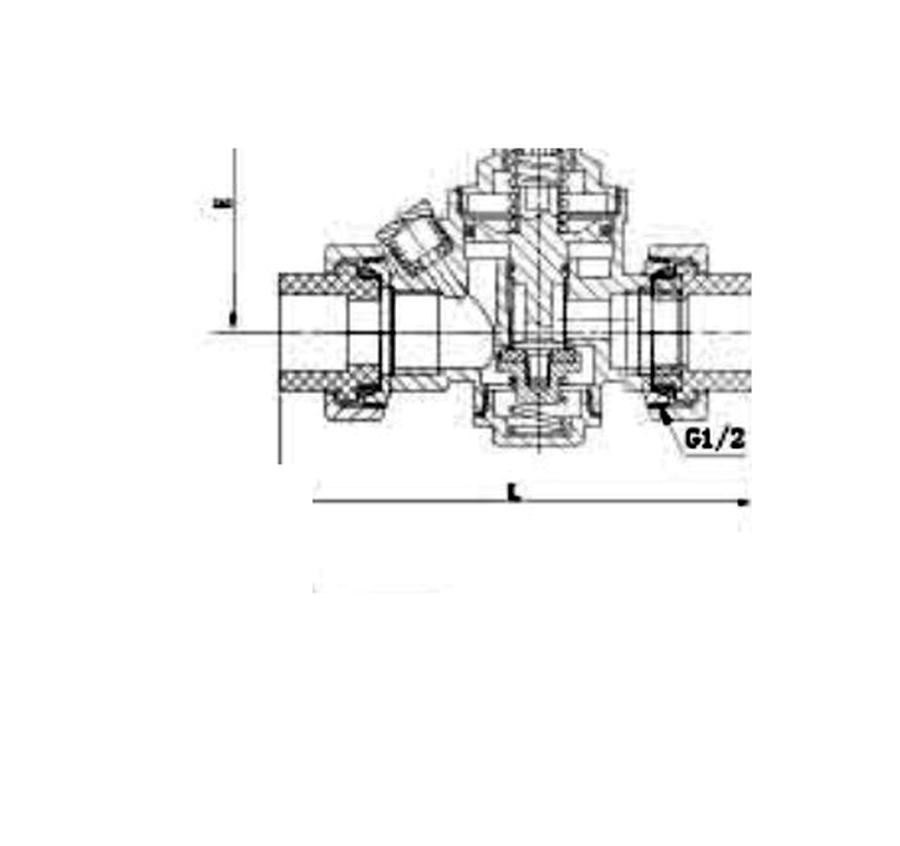

Main Dimensions
| DN | Size | L (mm) | d (mm) | H (mm) | D (mm) |
|---|---|---|---|---|---|
| 20 | 3/4 | 122 | 18.5 | 63 | 61 |
| 25 | 1 | 132 | 23.3 | 63 | 66 |
| 32 | 1 1/4 | 147 | 30 | 75 | 74 |
| 40 | 1 1/2 | 160 | 38 | 85 | 80 |
| 50 | 2 | 180 | 48 | 90 | 90 |
Technical Standard
| Normal Pressure | 1.6 MPa |
|---|---|
| Working Medium | Water |
| Working Temperature | 0 C <= T <= 80 C |
| Thread Standard | ISO 228 |
