Ordering code
Specification
| Model | QSL-08 | QSL-10 | QSL-15 | QSL-20 | QSL-25 | QSL-32 | QSL-40 | QSL-50 |
| Environment temperature | -5~60℃ | |||||||
| Max.input pressure | 1.0MPa | |||||||
| Pressure range | 0.05~0.85MPa | |||||||

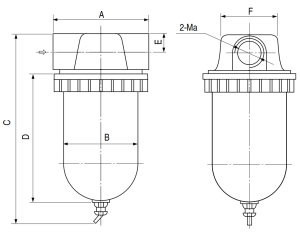

Dimension
| Model | Ma | A | B | C | D | E | F |
| QSL-8 | G1/4“ | 90 | Ø70 | 160 | 114 | 14 | Ø56 |
| QSL-10 | G3/8“ | ||||||
| QSL-15 | G1/2“ | ||||||
| QSL-20 | G3/4“ | 115 | Ø90 | 215 | 151 | 21 | Ø66 |
| QSL-25 | G1″ | ||||||
| QSL-40 | G1 1/2“ | 132 | 310 | 228 | 32 | Ø92 | |
| QSL-50 | G2″ |
