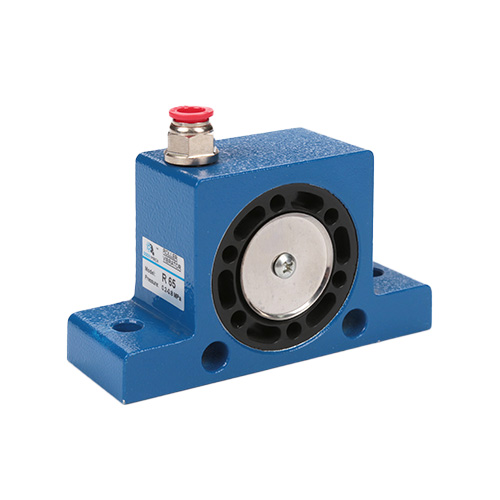

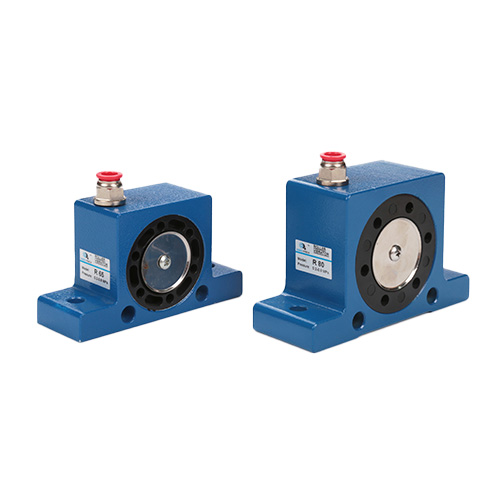

R Roller Ordering Code
Specification
| Model | Vibrations 1000vpm 2 bar 6 bar |
Force N 2 bar 6 bar |
Air comsumption I/min 2 bar 6 bar |
|||
| R-50 | 25.0 | 36.0 | 1070 | 4220 | 100 | 195 |
| R-65 | 19.0 | 26.0 | 2730 | 6120 | 200 | 400 |
| R-80 | 15.5 | 19.0 | 3000 | 7450 | 290 | 570 |
| R-100 | 11.0 | 16.0 | 3750 | 8900 | 370 | 730 |
| R-120 | 10.0 | 12.5 | 8000 | 12500 | 500 | 970 |
Dimension
| Model | A | B | C | D | E | F | G | H Thread BSP |
Weight g |
| R-50 | 50 | 29 | 86 | 68 | 12 | 7 | 40 | 1/8″ | 240 |
| R-65 | 65 | 37 | 113 | 90 | 16 | 9 | 50 | 1/4″ | 545 |
| R-80 | 80 | 43 | 128 | 104 | 16 | 9 | 60 | 1/4″ | 950 |
| R-100 | 100 | 52 | 160 | 130 | 20 | 11 | 80 | 3/8″ | 1810 |
| R-120 | 120 | 77 | 194 | 152 | 24 | 17 | — | 3/8″ | 4260 |
