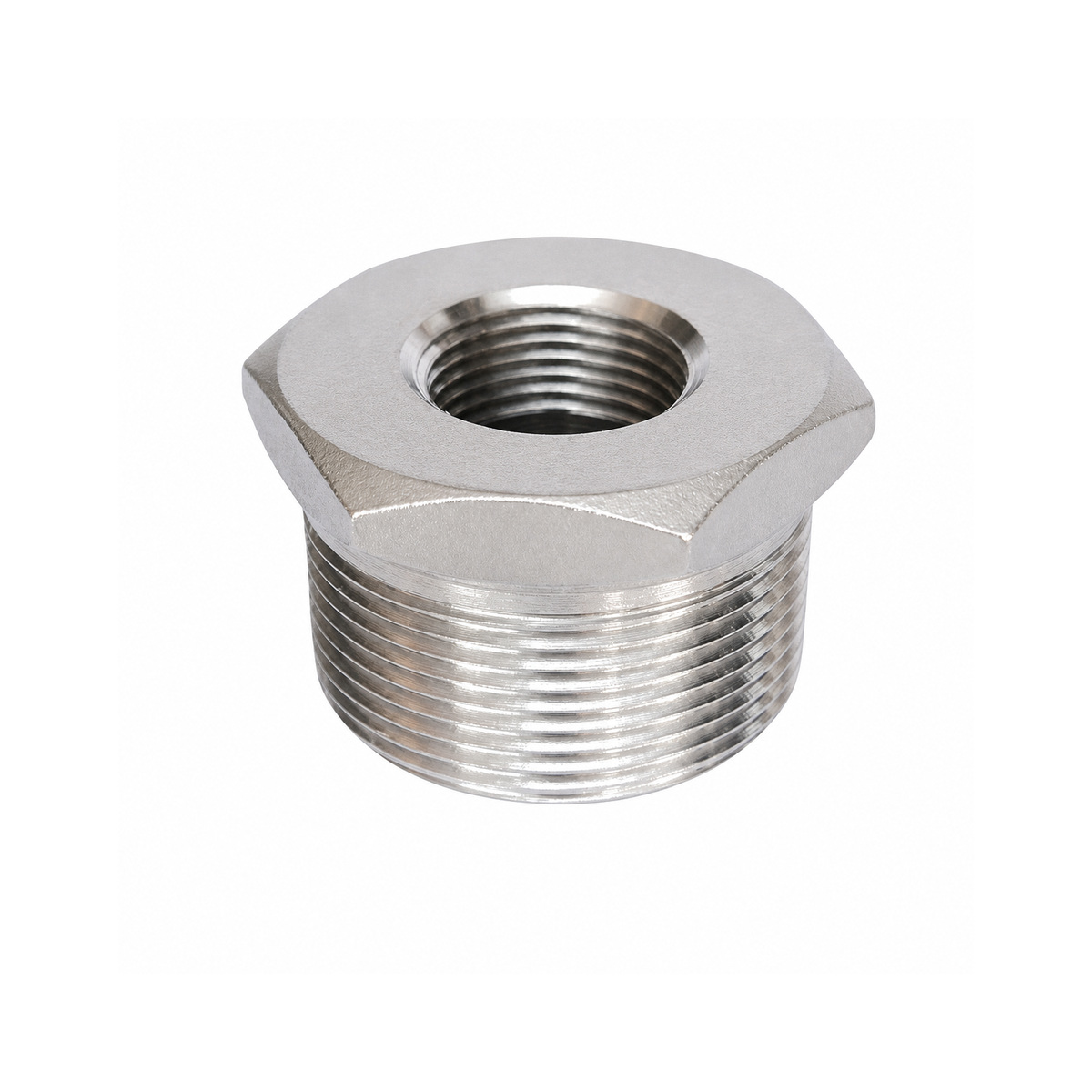

Stainless Hex Head Bushing
Stainless Hex Head Bushing is a stainless steel high pressure threaded pipe fitting manufactured to ASME B16.11 dimensions.
Product Details
| Standard | ASME B16.11 |
|---|---|
| Pressure Class | ASME B16.11 high pressure threaded fittings |
| Material | A182 F304/L, F304H, F316/L, F316Ti, F321, F5, F11, F22, F51, F55, F91 |
| Connection | Threaded |
Available Sizes
| Nominal Pipe Size (in) |
|---|
| 1/8 to 4 |
Dimensions Data (mm)
Dimensions are listed in millimeters. Nominal pipe size is shown in inches.
Hex Head Bushing Dimensions
| DN | Nominal Pipe Size (in) | Length A (Min) | Width Flats F (Nom) | Hex Height G (Min) |
|---|---|---|---|---|
| 6 | 1/8 | 10 | 11 | / |
| 8 | 1/4 | 11 | 16 | 3 |
| 10 | 3/8 | 13 | 18 | 4 |
| 15 | 1/2 | 14 | 22 | 5 |
| 20 | 3/4 | 16 | 27 | 6 |
| 25 | 1 | 19 | 36 | 6 |
| 32 | 1-1/4 | 21 | 46 | 7 |
| 40 | 1-1/2 | 21 | 50 | 8 |
| 50 | 2 | 22 | 65 | 9 |
| 65 | 2-1/2 | 27 | 75 | 10 |
| 80 | 3 | 28 | 90 | 10 |
| 100 | 4 | 32 | 115 | 13 |
