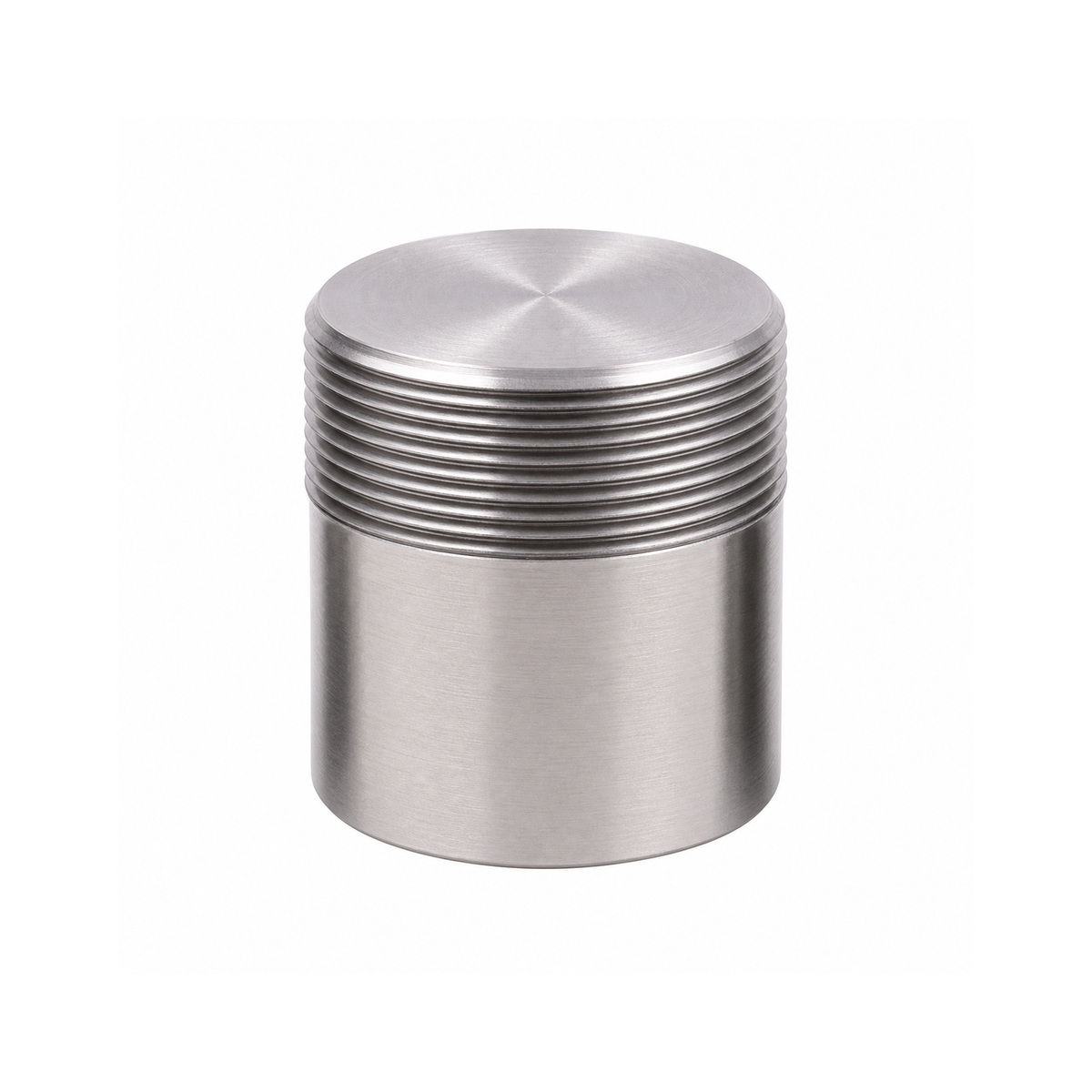

Stainless Round Head Plug
Stainless Round Head Plug is a stainless steel high pressure threaded pipe fitting manufactured to ASME B16.11 dimensions.
Product Details
| Standard | ASME B16.11 |
|---|---|
| Pressure Class | ASME B16.11 high pressure threaded fittings |
| Material | A182 F304/L, F304H, F316/L, F316Ti, F321, F5, F11, F22, F51, F55, F91 |
| Connection | Threaded |
Available Sizes
| Nominal Pipe Size (in) |
|---|
| 1/8 to 4 |
Dimensions Data (mm)
Dimensions are listed in millimeters. Nominal pipe size is shown in inches.
Round Head Plug Dimensions
| DN | Nominal Pipe Size (in) | Length D (Min) | Nominal Diameter of Head E |
|---|---|---|---|
| 6 | 1/8 | 35 | 10 |
| 8 | 1/4 | 41 | 14 |
| 10 | 3/8 | 41 | 18 |
| 15 | 1/2 | 44 | 21 |
| 20 | 3/4 | 44 | 27 |
| 25 | 1 | 54 | 33 |
| 32 | 1-1/4 | 54 | 43 |
| 40 | 1-1/2 | 54 | 48 |
| 50 | 2 | 64 | 60 |
| 65 | 2-1/2 | 70 | 73 |
| 80 | 3 | 70 | 89 |
| 100 | 4 | 76 | 114 |
