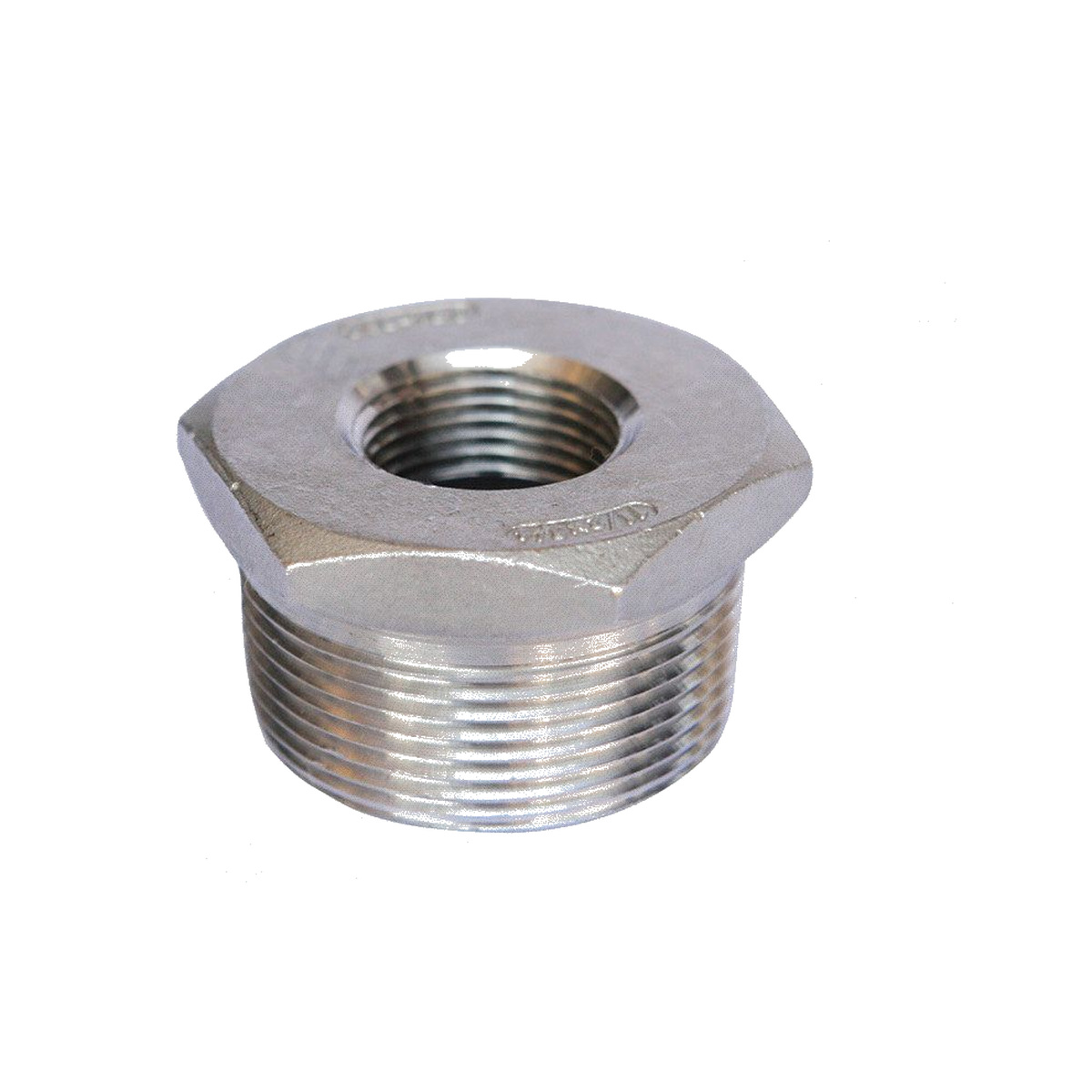

Product Details

Item	Specification
Product Type	Stainless Steel 150LB Hex Bushing
Connection	Male x Female threaded reducing bushing
Pressure Rating	150LB
Thread Standard	ASME B1.20.1 (NPT), DIN 2999, BS21, ISO 228/1, ISO 7/1
Dimension Standard	ISO 4144, SP114, EN-10241, JIS
Material	ASTM A351-CF8M / 1.4408, ASTM A351-CF8 / 1.4401, ASTM A216-WCB, AISI 304, 304L, 316, 316L, 301, 430

Dimension Drawing

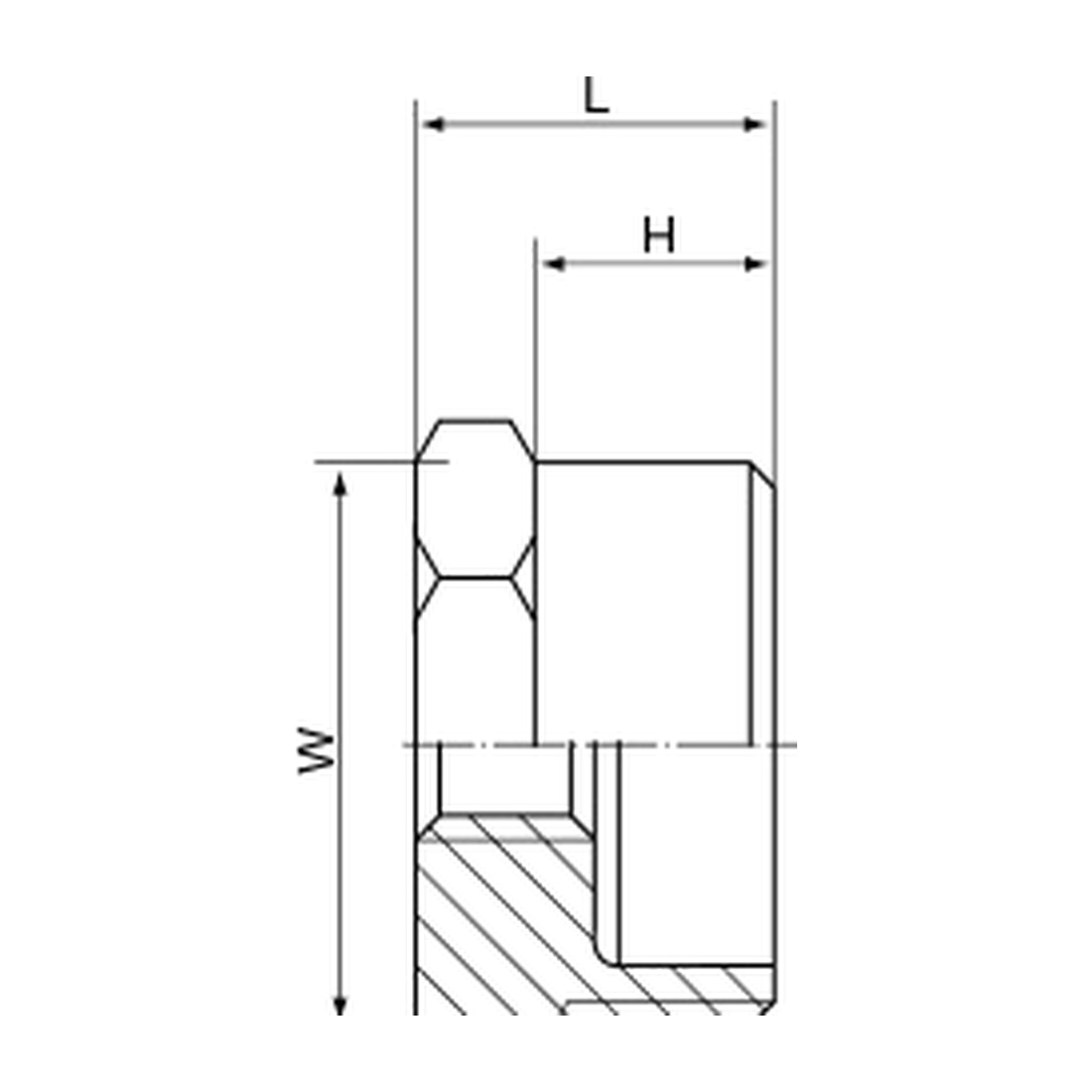

Stainless Steel 150LB Hex Bushing dimension drawing

KH Type Dimensions (mm)

Size	L (mm)	W (mm)
1/2 x 1/8	19.5	22
1/2 x 1/4	19.5	22
1/2 x 3/8	19.5	22
3/4 x 1/8	21	28
3/4 x 1/4	21	28
3/4 x 3/8	21	28
3/4 x 1/2	21	28
1 x 1/4	24	35
1 x 3/8	24	35
1 x 1/2	24	35
1 x 3/4	24	35
1 1/4 x 3/8	27.5	43.5
1 1/4 x 1/2	27.5	43.5
1 1/4 x 3/4	27.5	43.5
1 1/4 x 1	27.5	43.5
1 1/2 x 1/2	28.5	49.5
1 1/2 x 3/4	28.5	49.5
1 1/2 x 1	28.5	49.5
1 1/2 x 1 1/4	28.5	49.5
2 x 1/2	32	62
2 x 3/4	32	62
2 x 1	32	62
2 x 1 1/4	32	62
2 x 1 1/2	32	62
2 1/2 x 1/2	34	77.5
2 1/2 x 3/4	34	77.5
2 1/2 x 1	34	77.5
2 1/2 x 1 1/4	34	77.5
2 1/2 x 1 1/2	34	77.5
2 1/2 x 2	34	77.5
3 x 3/4	37.5	90.5
3 x 1	37.5	90.5
3 x 1 1/4	37.5	90.5
3 x 1 1/2	37.5	90.5
3 x 2	37.5	90.5
3 x 2 1/2	37.5	90.5
4 x 1	44	117
4 x 1 1/4	44	117
4 x 1 1/2	44	117
4 x 2	44	117
4 x 2 1/2	44	117
4 x 3	44	117

ISO 4144 Dimensions (mm)

Size	H	L	W
1/4 x 1/8	12	17	17
3/8 x 1/4	13	18	21
1/2 x 1/4	16	21	26
1/2 x 3/8	16	21	26
3/4 x 3/8	18	24	31
3/4 x 1/2	18	24	31
1 x 1/2	20	27	38
1 x 3/4	20	27	38
1 1/4 x 3/4	22	30	46
1 1/4 x 1	22	30	46
1 1/2 x 1	23	32	53
1 1/2 x 1 1/4	23	32	53
2 x 1 1/4	25	36	63
2 x 1 1/2	25	36	63
2 1/2 x 1 1/2	28	39	80
2 1/2 x 2	28	39	80
3 x 2	31	44	90
3 x 2 1/2	31	44	90
4 x 2 1/2	37	51	119
4 x 3	37	51	119

SP-114 Dimensions (mm)

Size	H	L	W
1/4 x 1/8	11.7	18	16.7
3/8 x 1/4	13	19	21
1/2 x 1/4	15	21	25
1/2 x 3/8	15	21	25
3/4 x 3/8	18	26	29
3/4 x 1/2	18	26	29
1 x 1/2	19.6	27.6	37
1 x 3/4	19.6	27.6	37
1 1/4 x 3/4	22.5	32	48
1 1/4 x 1	22.5	32	48
1 1/2 x 1	22	32	53
1 1/2 x 1 1/4	22	32	53
2 x 1 1/4	25.5	37.6	63
2 x 1 1/2	25.5	37.6	63
2 1/2 x 1 1/2	32	44	80
2 1/2 x 2	32	44	80
3 x 2	34.5	46	92
3 x 2 1/2	34.5	46	92
4 x 2 1/2	38	52	116
4 x 3	38	52	116

EN-10241 Dimensions (mm)

Size	H	L	W
1/4 x 1/8	25.8	38	52
3/8 x 1/4	25.8	38	52
1/2 x 1/4	24.8	36	63
1/2 x 3/8	24.8	36	63
3/4 x 3/8	30.9	45	81
3/4 x 1/2	30.9	45	81
1 x 1/2	33	47	95
1 x 3/4	33	47	95
1 1/4 x 3/4	35	52	110
1 1/4 x 1	35	52	110
1 1/2 x 1	10.8	15.2	16
1 1/2 x 1 1/4	11.9	16.5	18
2 x 1 1/4	15.6	21	26
2 x 1 1/2	15.4	21	26
2 1/2 x 1 1/2	17.4	24	30
2 1/2 x 2	17.5	24	30
3 x 2	19.7	27	35
3 x 2 1/2	19.7	27	35
4 x 2 1/2	21.9	30	45
4 x 3	21.9	30	45
