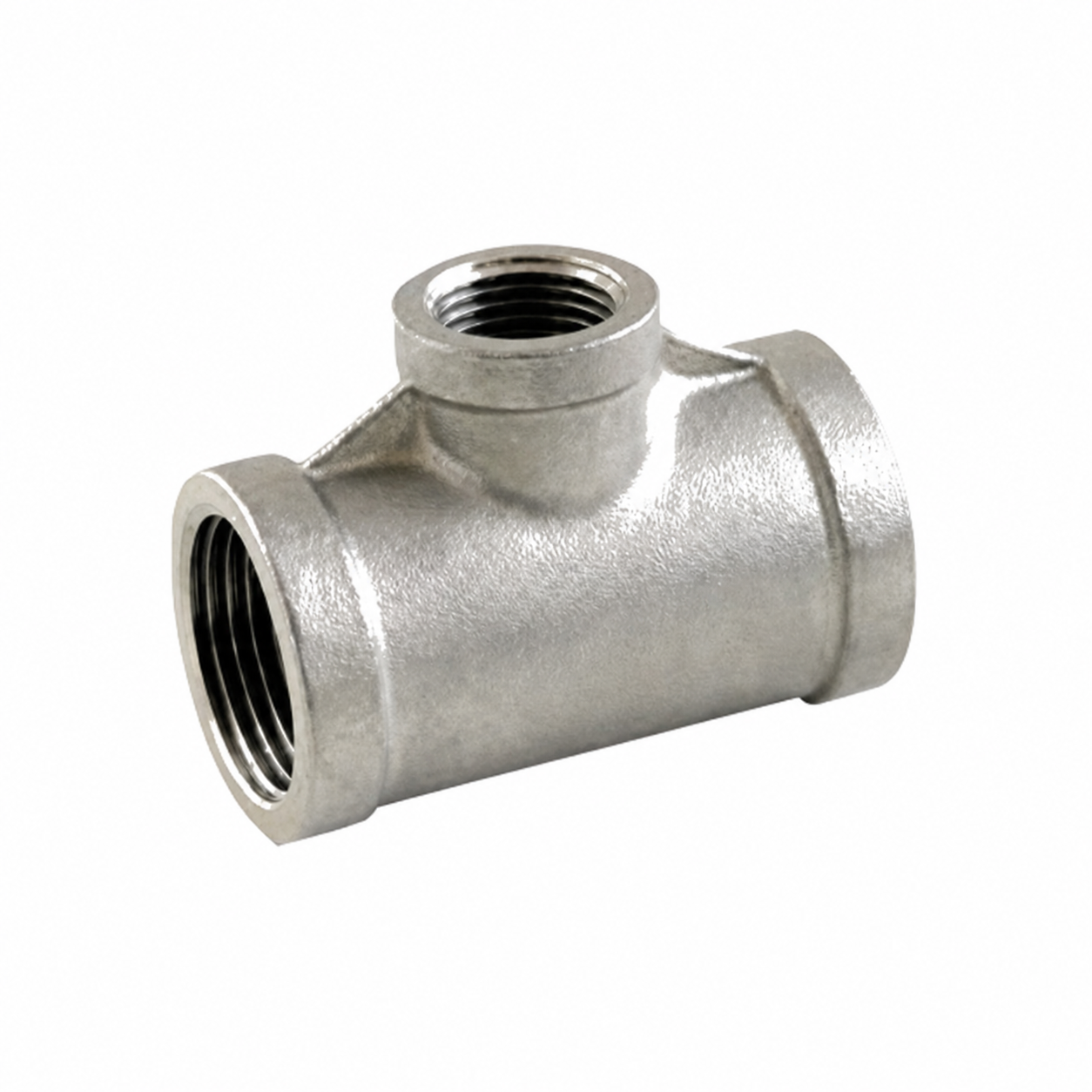

Stainless Steel 150LB Reducing Tee

Stainless steel 150LB reducing tee for threaded pipe fitting systems, used to branch a line while connecting different thread sizes.

Item	Specification
Product Type	Stainless Steel 150LB Reducing Tee
Connection	Female threaded reducing tee
Pressure Rating	150LB
Thread Standard	ASME B1.20.1 (NPT), DIN 2999, BS21, ISO 228/1, ISO 7/1
Dimension Standard	ISO 4144, SP114, EN-10241, JIS
Material	ASTM A351-CF8M / 1.4408, ASTM A351-CF8 / 1.4401, ASTM A216-WCB, AISI 304, 304L, 316, 316L, 301, 430

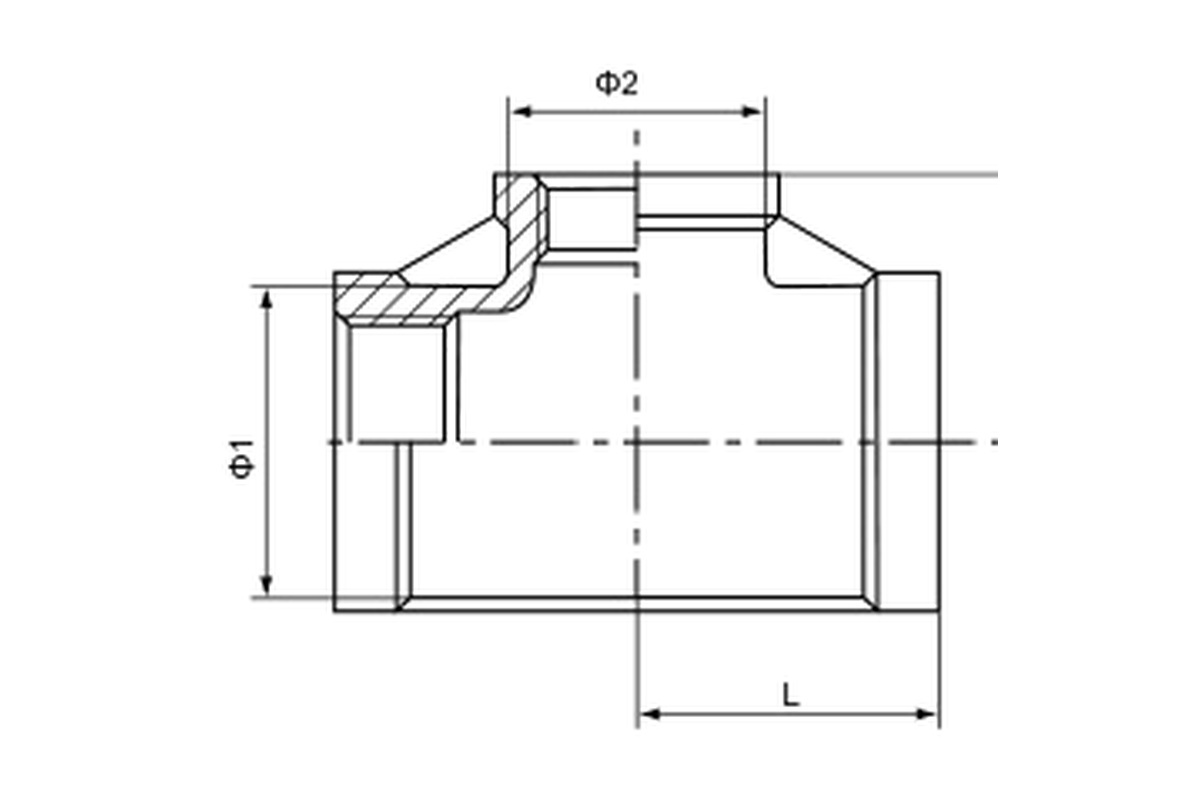

Stainless Steel 150LB Reducing Tee complete dimension drawing

Size	1/4*1/8	3/8*1/4	1/2*1/4	1/2*3/8	3/4*3/8	3/4*1/2	1*1/2	1*3/4	1 1/4*3/4	1 1/4*1
D1	19	22	26	26	32	32	39	39	48	48
D2	16	19	19	22	22	26	26	32	32	39
L	19	23	27	27	32	32	38	38	46	46
L1	17	19	19	23	23	27	27	32	32	38

Size	1 1/2*1	1 1/2*1 1/4	2*1 1/4	2*1 1/2	2 1/2*1 1/2	2 1/2*2	3*2	3*2 1/2	4*2 1/2	4*3
D1	55	55	67	67	83.5	83.5	98.2	98.2	123	123
D2	39	48	48	55	55	67	67	83.5	83.5	98.2
L	48	48	57	57	69	69	78	78	96	96
L1	38	46	46	48	48	57	57	69	69	78

Size	1/4*1/8	3/8*1/4	1/2*1/4	1/2*3/8	3/4*3/8	3/4*1/2	1*1/2	1*3/4	1 1/4*3/4	1 1/4*1
D1	15.4	19.7	26.2	26.2	31.9	31.9	39.8	39.8	47.8	47.8
D2	13.5	15.4	15.4	19.7	19.7	26.2	26.2	31.9	31.9	39.8
L	20.6	23.6	28.5	28.5	33.3	33.3	38.1	38.1	44.5	44.5
L1	20.6	20.6	20.6	23.6	23.6	28.5	28.5	33.3	33.3	38.1

Size	1 1/2*1	1 1/2*1 1/4	2*1 1/4	2*1 1/2	2 1/2*1 1/2	2 1/2*2	3*2	3*2 1/2	4*2 1/2	4*3
D1	55.9	55.9	66.5	66.5	83.3	83.3	98.2	98.2	123	123
D2	39.8	47.8	47.8	55.9	55.9	66.5	66.5	83.3	83.3	98.2
L	49	49	57.1	57.1	68	68	77.6	77.6	96.8	96.8
L1	38.1	44.5	44.5	49	49	57.1	57.1	68	68	77.6

Size	1/4*1/8	3/8*1/4	1/2*1/4	1/2*3/8	3/4*3/8	3/4*1/2	1*1/2	1*3/4	1 1/4*3/4	1 1/4*1
D1	21.3	23.5	30	30	35	35	43	43	52	52
D2	17	21.3	21.3	23.5	23.5	30	30	35	35	43
L	21	23.6	28	28	33	33	38	38	45	45
L1	19	21	21	23.6	23.6	28	28	33	33	38

Size	1 1/2*1	1 1/2*1 1/4	2*1 1/4	2*1 1/2	2 1/2*1 1/2	2 1/2*2	3*2	3*2 1/2	4*2 1/2	4*3
D1	58	58	71	71	86.6	86.6	100.2	100.2	125	125
D2	43	52	52	58	58	71	71	86.6	86.6	100.2
L	50	50	58	58	70	70	78.5	78.5	97	97
L1	38	45	45	50	50	58	58	70	70	78.5

Stainless Steel 150LB Pipe Fittings
