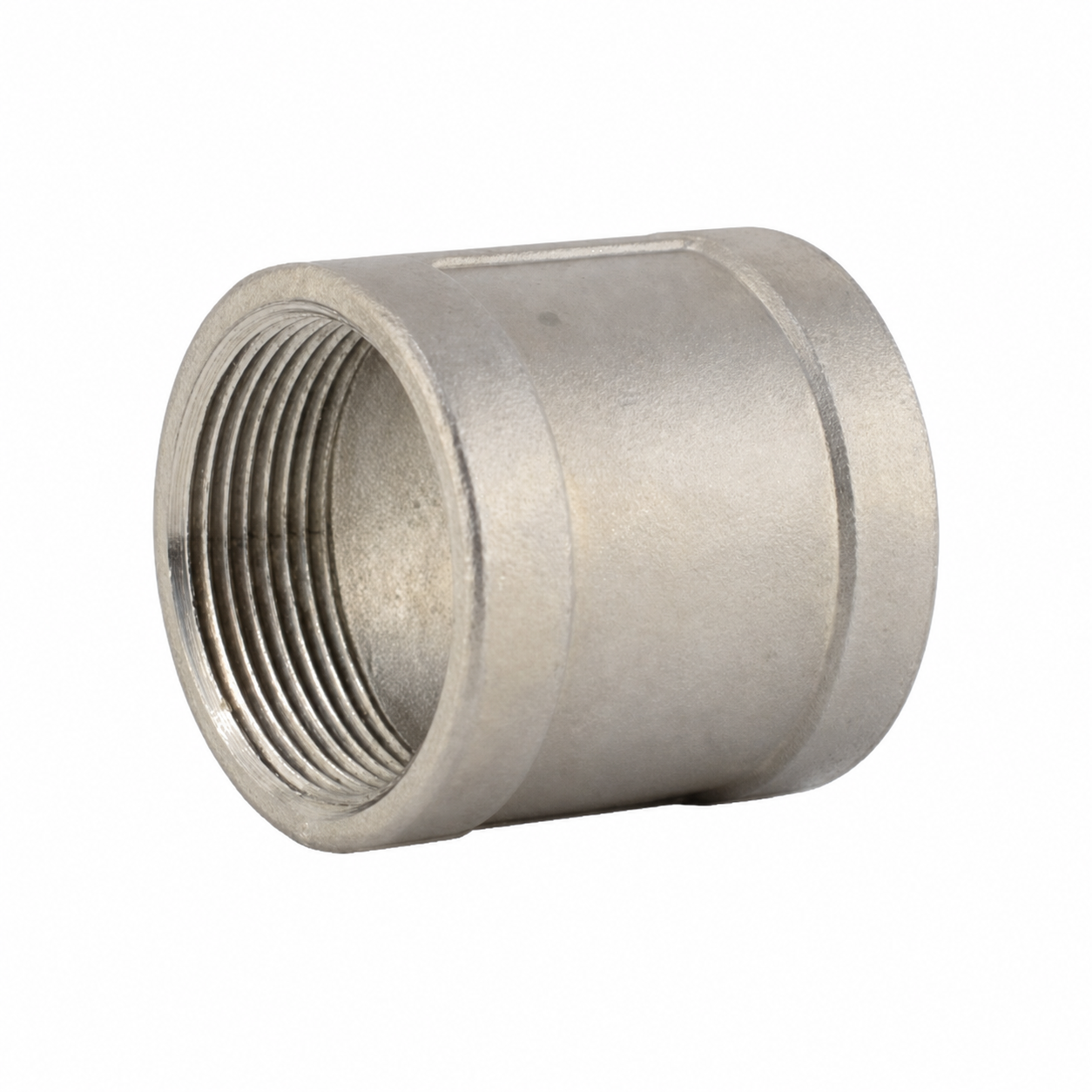

Stainless Steel 150LB Socket Banded
Stainless steel 150LB socket banded fitting for threaded pipe systems, used as a female coupling connection with reinforced banded body.
Product Details
| Item | Specification |
|---|---|
| Product Type | Stainless Steel 150LB Socket Banded |
| Connection | Threaded female x female socket coupling |
| Pressure Rating | 150 LBS |
| Thread Standards | ASME B1.20.1 (NPT), DIN 2999 & BS21, ISO 228/1 & ISO 7/1 |
| Dimensional Standards | ISO 4144, SP-114, EN-10241, JIS |
| Material Options | ASTM A351-CF8M / 1.4408, ASTM A351-CF8 / 1.4401, ASTM A216-WCB |
| Available Grades | AISI 304, 304L, 316, 316L, 301, 430 and related grades |
Available Sizes
| Size | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Thread Size | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |

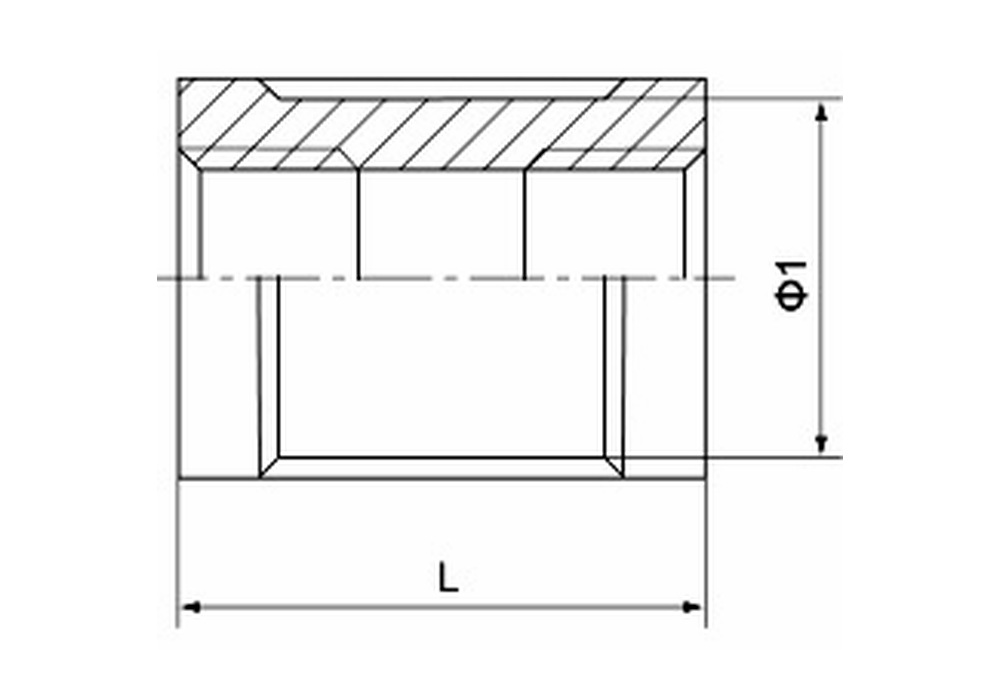

Dimensions Diagram
ISO 4144 Dimensions (mm)
| Dimension | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Φ1 | 16 | 19 | 22 | 26 | 32 | 39 | 48 | 55 | 67 | 83.5 | 97 | 123 |
| L | 17 | 19 | 23 | 27 | 32 | 38 | 46 | 48 | 57 | 69 | 78 | 96 |
SP-114 Dimensions (mm)
| Dimension | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Φ1 | 15 | 21.3 | 25.7 | 27 | 31.9 | 39.8 | 47.8 | 55.9 | 66.5 | 83.3 | 98.2 | 123 |
| L | 20 | 25.6 | 27 | 34 | 36 | 44 | 52 | 51 | 56 | 68 | 76.5 | 80 |
EN-10241 Dimensions (mm)
| Dimension | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Φ1 | 15 | 18.5 | 21.3 | 26.4 | 31.8 | 39.5 | 49.3 | 55.5 | 69 | 87 | 103 | 126 |
| L | 15 | 25 | 26 | 34 | 36 | 43 | 48 | 48 | 56 | 65 | 71 | 83 |
