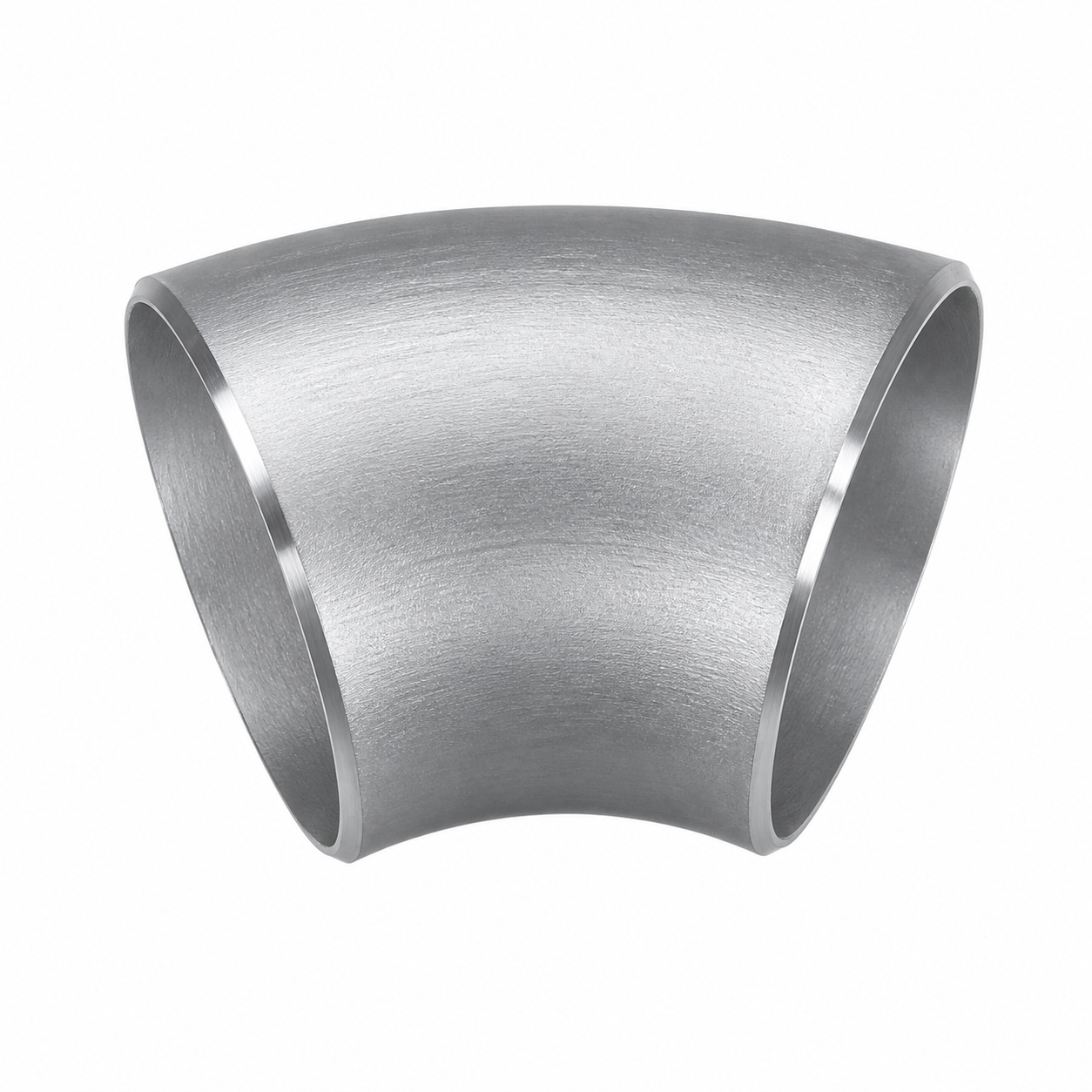

Stainless Steel Butt Weld 45 Degree Elbow

304 stainless steel butt weld 45 degree elbow for welded stainless steel pipeline direction changes.

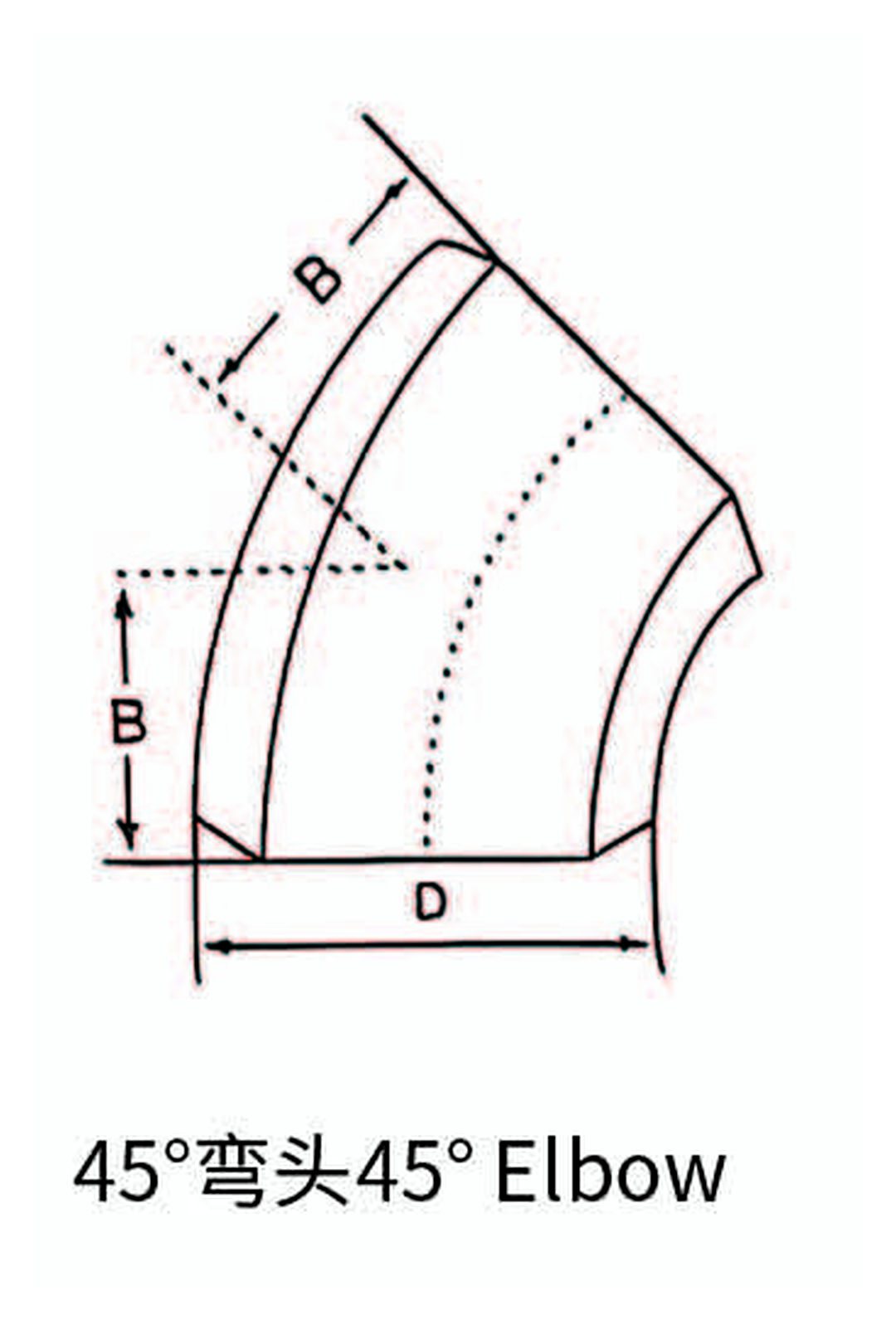

Stainless Steel Butt Weld 45 Degree Elbow dimension drawing

对焊弯头尺寸

DIMENSIONS OF BUTT-WELDED ELBOWS

GB/T12459-2017、 GB/T13401-92

公称通径 Nominal Pipe Size DN	端部外径 Outside Diameter at Bevel D		中心至端面 Center to End
	A系列 Series A	B系列 Series B	B Long Radius
	15	21.3	–	16
20	26.9	25	19
25	33.7	32	22
32	42.4	38	25
40	48.3	45	29
50	60.3	57	35
65	76.1(73)	76	44
80	88.9	89	51
90	101.6	–	57
100	114.3	108	64
125	141.3	133	79
150	168.3	159	95
200	219.1	219	127
250	273.0	273	159
300	323.9	325	190
350	355.6	377	222
400	406.4	426	254
450	457	480	286
500	508	530	318
550	559	–	343
600	610	630	381
650	660	–	406
700	711	720	438
750	762	–	470

公称通径 Nominal Pipe Size DN	端部外径 Outside Diameter at Bevel D		中心至端面 Center to End
	A系列 Series A	B系列 Series B	B Long Radius
	800	813	820	502
850	864	–	533
900	914	920	565
950	965	–	600
1000	1016	1020	632
1050	1067	–	660
1100	1118	1120	695
1150	1168	–	727
1200	1219	1220	759

注：尺寸为 mm，表格结构按耀浩样本册对应参数表整理。
Note: Dimensions are in mm. Table structure follows the corresponding Yaohao catalog parameter table.

Product Details

Product Type	45 degree elbow for stainless steel butt weld pipe direction changes
Material	Stainless steel
Connection	Butt weld pipe fitting connection
Dimension Data	Nominal pipe size, outside diameter, wall thickness, center-to-end or length dimensions are listed in the dimensions tables above
Applications	Stainless steel process piping, water, gas, steam, chemical and general industrial pipeline systems
Ordering Note	Confirm size, wall thickness/schedule, material grade, standard and end preparation when sending an inquiry
