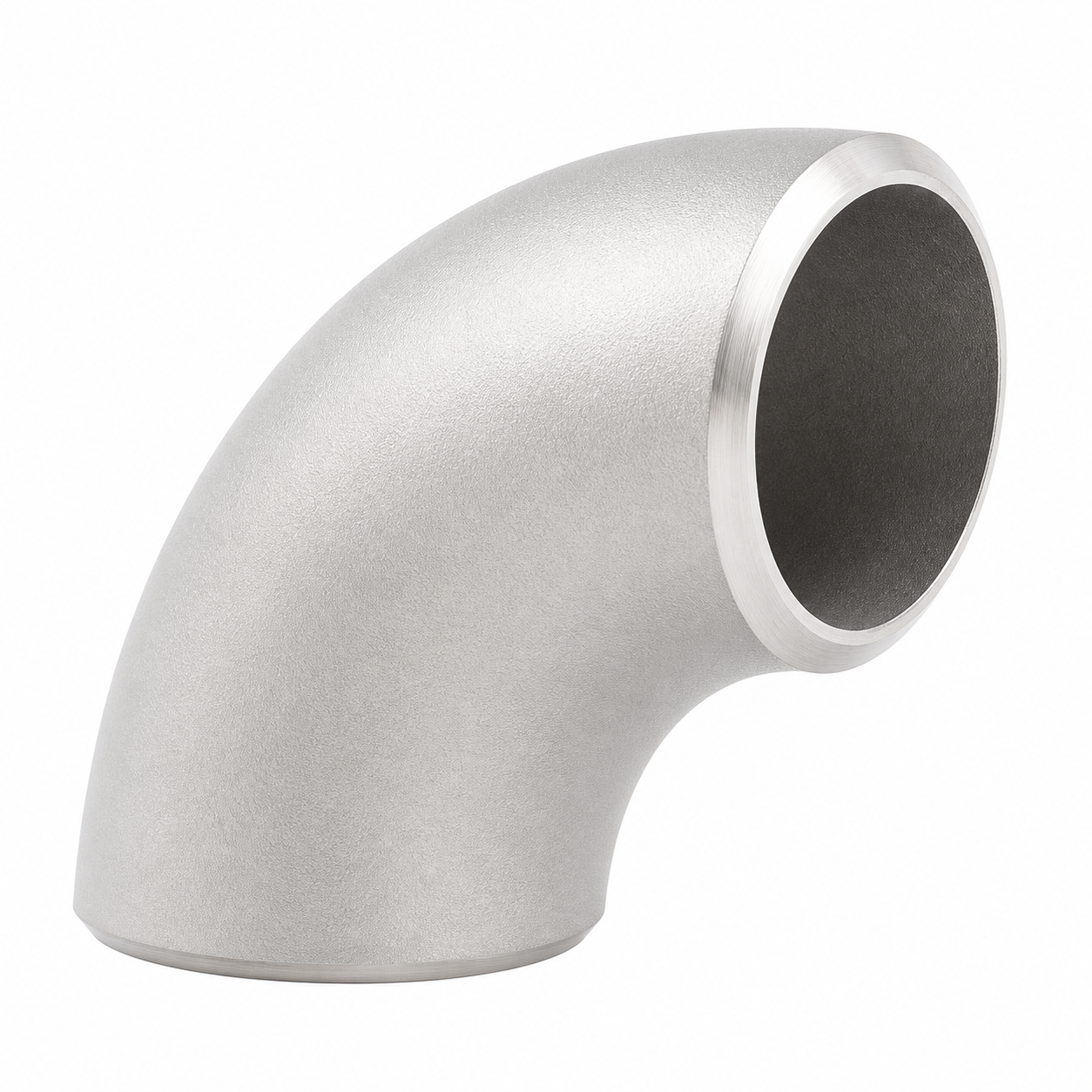

Stainless Steel Butt Weld 90 Degree Elbow

304 stainless steel butt weld 90 degree elbow for welded stainless steel pipeline direction changes.

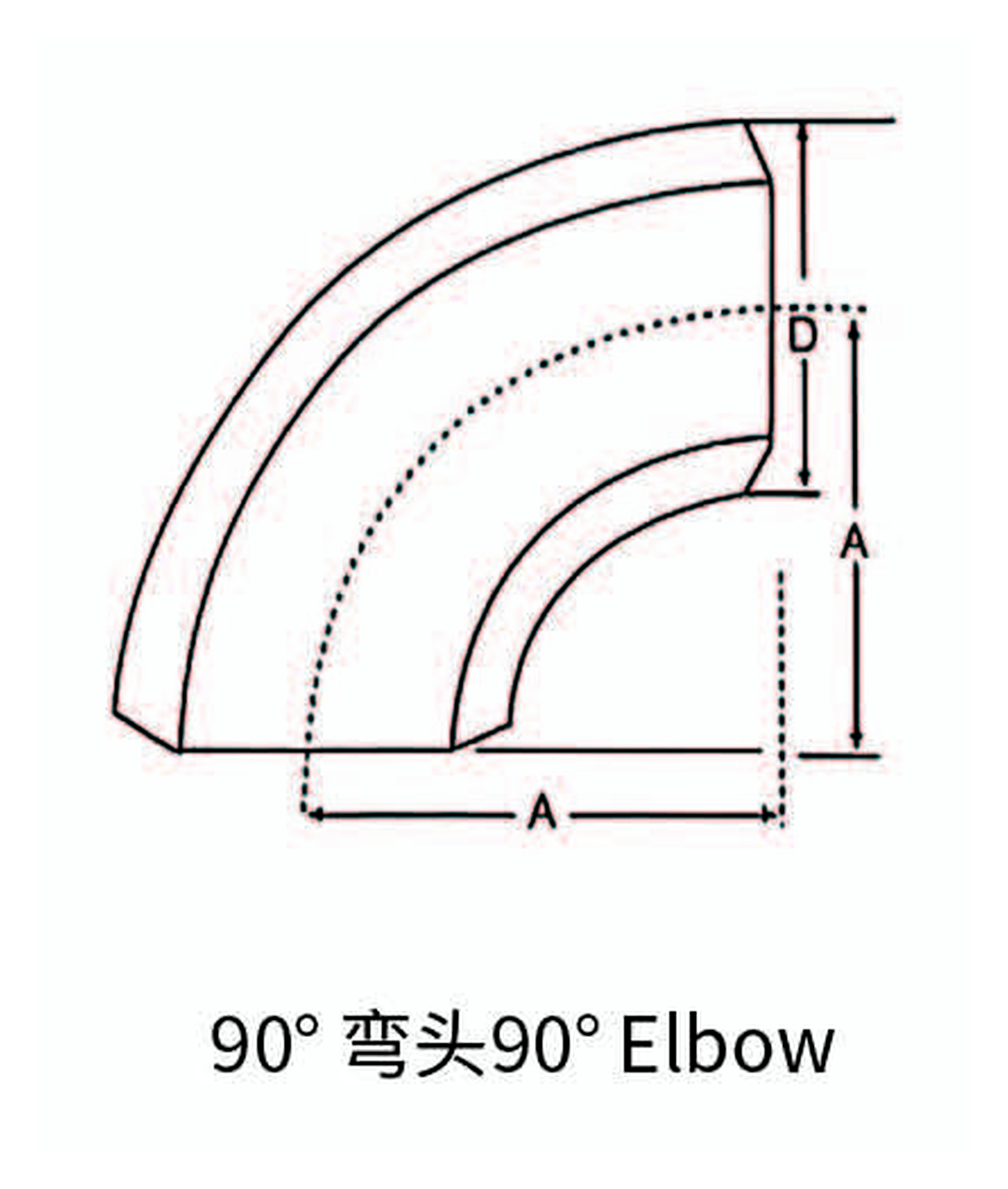

Stainless Steel Butt Weld 90 Degree Elbow dimension drawing

对焊弯头尺寸

DIMENSIONS OF BUTT-WELDED ELBOWS

GB/T12459-2017、 GB/T13401-92

公称通径 Nominal Pipe Size DN	端部外径 Outside Diameter at Bevel D		中心至端面 Center to End A
	A系列 Series A	B系列 Series B	Long Radius	Short Radius
	15	21.3	–	38	–
20	26.9	25	38	–
25	33.7	32	38	25
32	42.4	38	48	32
40	48.3	45	57	38
50	60.3	57	76	51
65	76.1(73)	76	95	64
80	88.9	89	114	76
90	101.6	–	133	89
100	114.3	108	152	102
125	141.3	133	190	127
150	168.3	159	229	152
200	219.1	219	305	203
250	273.0	273	381	254
300	323.9	325	457	305
350	355.6	377	533	356
400	406.4	426	610	406
450	457	480	686	457
500	508	530	762	508
550	559	–	838	559
600	610	630	914	610
650	660	–	991	660
700	711	720	1067	711
750	762	–	1143	762

公称通径 Nominal Pipe Size DN	端部外径 Outside Diameter at Bevel D		中心至端面 Center to End A
	A系列 Series A	B系列 Series B	Long Radius	Short Radius
	800	813	820	1219	813
850	864	–	1295	864
900	914	920	1372	914
950	965	–	1448	965
1000	1016	1020	1524	1016
1050	1067	–	1600	1067
1100	1118	1120	1676	1118
1150	1168	–	1753	1168
1200	1219	1220	1829	1219

注：尺寸为 mm，表格结构按耀浩样本册对应参数表整理。
Note: Dimensions are in mm. Table structure follows the corresponding Yaohao catalog parameter table.

Product Details

Product Type	90 degree elbow for stainless steel butt weld pipe direction changes
Material	Stainless steel
Connection	Butt weld pipe fitting connection
Dimension Data	Nominal pipe size, outside diameter, wall thickness, center-to-end or length dimensions are listed in the dimensions tables above
Applications	Stainless steel process piping, water, gas, steam, chemical and general industrial pipeline systems
Ordering Note	Confirm size, wall thickness/schedule, material grade, standard and end preparation when sending an inquiry
