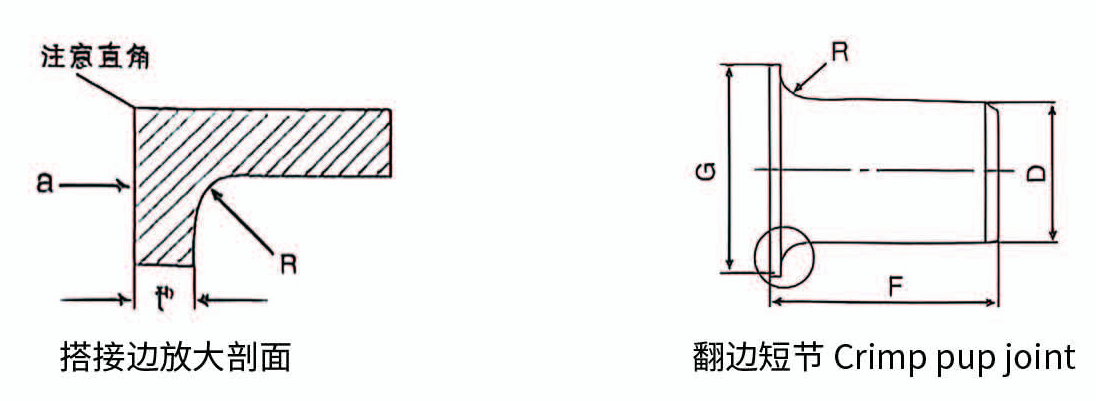

Stainless Steel Crimp Pup Joint Dimension Drawing
Stainless Steel Crimp Pup Joint Dimensions Data (mm)
| 翻边短节尺寸 / DIMENSIONS OF CRIMP PUP JOINT | ||||||
|---|---|---|---|---|---|---|
| 公称尺寸 Nominal Size DN |
短节外径 Short Joint OD D |
接管长度 a, b Pipe Length F |
圆角半径 Radius R |
搭接边外径 Lapped Edge OD G |
||
| Max. | Min. | Long | Short | |||
| 15 | 22.8 | 20.5 | 76 | 51 | 3 | 35 |
| 20 | 28.1 | 25.9 | 76 | 51 | 3 | 43 |
| 25 | 35.0 | 32.6 | 102 | 51 | 3 | 51 |
| 32 | 43.6 | 41.4 | 102 | 51 | 5 | 64 |
| 40 | 49.9 | 47.5 | 102 | 51 | 6 | 73 |
| 50 | 62.4 | 59.5 | 152 | 64 | 8 | 92 |
| 65 | 75.3 | 72.2 | 152 | 64 | 8 | 105 |
| 80 | 91.3 | 88.1 | 152 | 64 | 10 | 127 |
| 90 | 104.0 | 100.8 | 152 | 76 | 10 | 140 |
| 100 | 116.7 | 113.5 | 152 | 76 | 11 | 157 |
| 125 | 144.3 | 140.5 | 203 | 76 | 11 | 186 |
| 150 | 171.3 | 167.5 | 203 | 89 | 13 | 216 |
| 200 | 222.1 | 218.3 | 203 | 102 | 13 | 270 |
| 250 | 277.2 | 272.3 | 254 | 127 | 13 | 324 |
| 300 | 328.0 | 323.1 | 254 | 152 | 13 | 381 |
| 350 | 359.9 | 354.8 | 305 | 152 | 13 | 413 |
| 400 | 411.0 | 405.6 | 305 | 152 | 13 | 470 |
| 450 | 462 | 456 | 305 | 152 | 13 | 533 |
| 500 | 514 | 507 | 305 | 152 | 13 | 584 |
| 550 | 565 | 558 | 305 | 152 | 13 | 641 |
| 600 | 616 | 609 | 305 | 152 | 13 | 692 |
Note: Dimensions are in mm. For dimensions beyond this table or special pressure/class requirements, supply can follow the contract drawing or customer specification.
Product Details

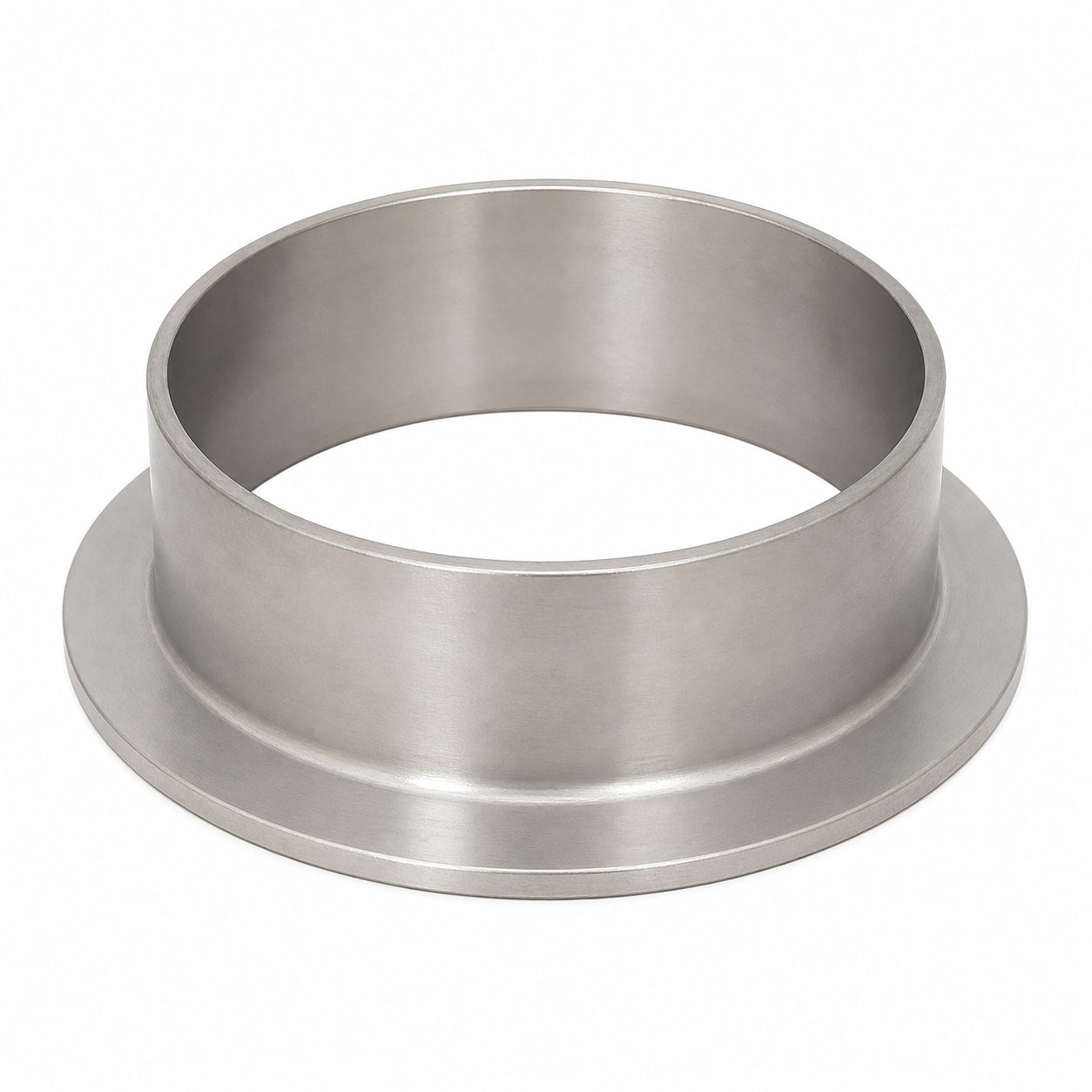

| Product Type | Crimp pup joint for stainless steel butt weld pipe systems |
|---|---|
| Material | Stainless steel |
| Connection | Butt weld short joint with lapped/crimped end |
| Dimension Data | Nominal size, short joint outside diameter, pipe length, radius and lapped edge outside diameter |
| Application | Pipe connection, transition assembly and pipeline installation support |
