Product Details

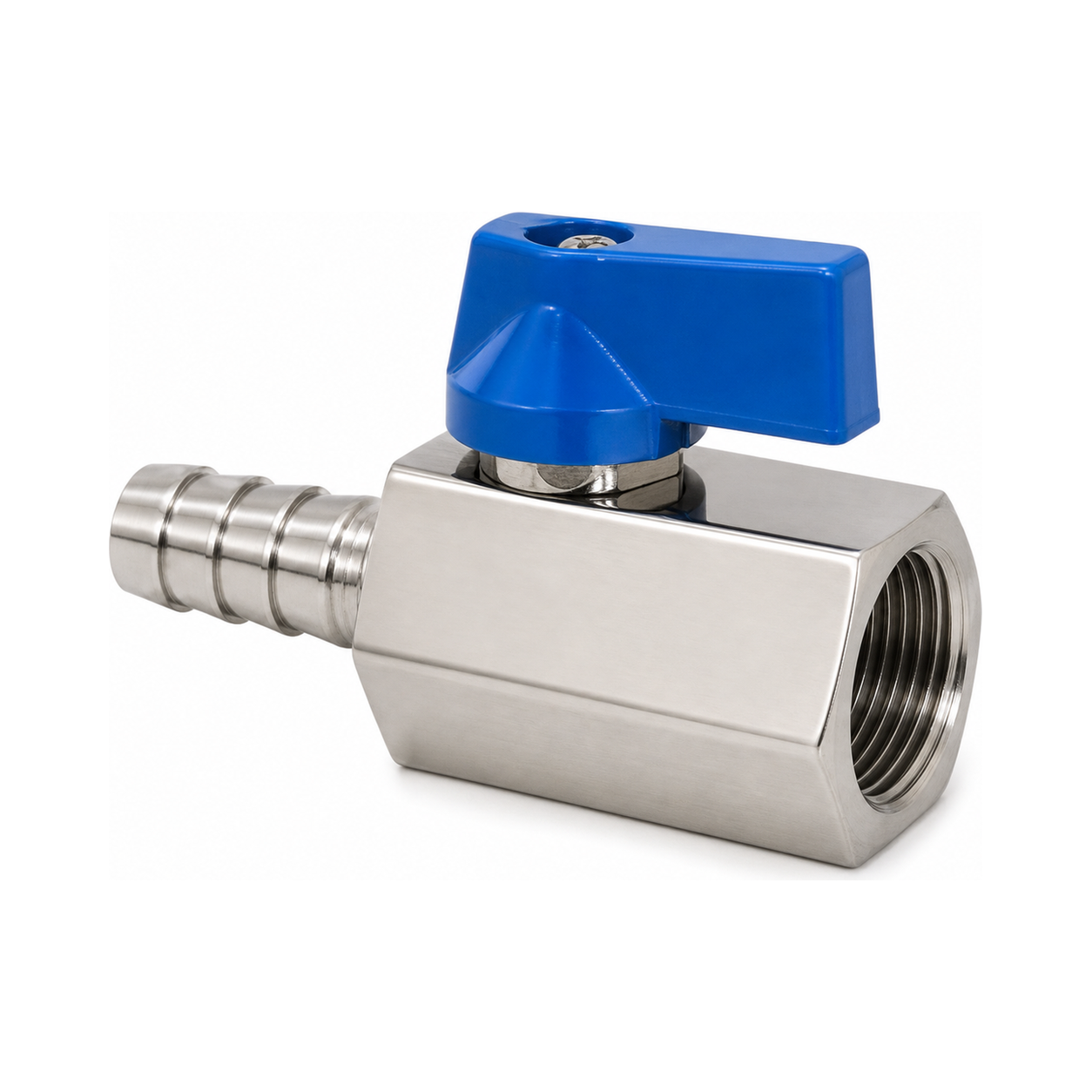

The Stainless Steel Mini Ball Valve Female x Hose Barb is a compact shut-off valve for small fluid-control and hose connection lines. The stainless steel body, female threaded port, hose barb end, and blue handle support quick manual operation.
Main Parts Material
| No. | Part | Material |
|---|---|---|
| 1 | O-Ring | NBR |
| 2 | Stem | SUS304 |
| 3 | Screw | SUS304 |
| 4 | Handle | Aluminum Alloy |
| 5 | Body | CF8/CF8M |
| 6 | Bonnet | CF8/CF8M |
| 7 | Seat A | RPTFE |
| 8 | Ball | CF8/CF8M |
| 9 | Seat B | RPTFE |

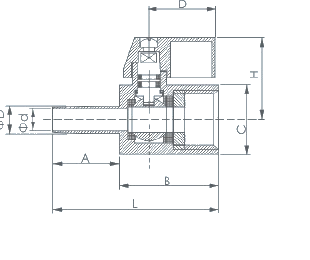

Dimensions and Weight
| Thread Size | Barb OD | A | H | C | D | d | L | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| 1/8" | 8 | 19 | 28 | 22 | 23 | 5 | 50 | 83 |
| 1/8" | 10 | 21 | 28 | 22 | 23 | 6.7 | 52 | 84 |
| 1/8" | 12 | 25 | 28 | 22 | 23 | 7 | 56 | 94.6 |
| 1/4" | 8 | 19 | 28 | 22 | 23 | 5 | 50 | 88 |
| 1/4" | 10 | 21 | 28 | 22 | 23 | 6.7 | 52 | 89 |
| 1/4" | 12 | 25 | 28 | 22 | 23 | 7 | 56 | 99.5 |
| 3/8" | 8 | 19 | 28 | 22 | 23 | 5 | 50 | 84.3 |
| 3/8" | 10 | 21 | 28 | 22 | 23 | 6.7 | 52 | 85.6 |
| 3/8" | 12 | 25 | 28 | 22 | 23 | 7 | 56 | 95.7 |
| 1/2" | 8 | 19 | 30 | 25 | 23 | 5 | 53 | 110.6 |
| 1/2" | 10 | 24 | 30 | 25 | 23 | 8 | 62 | 115 |
| 1/2" | 12 | 26 | 30 | 25 | 23 | 8 | 62 | 117.6 |
