Product Details

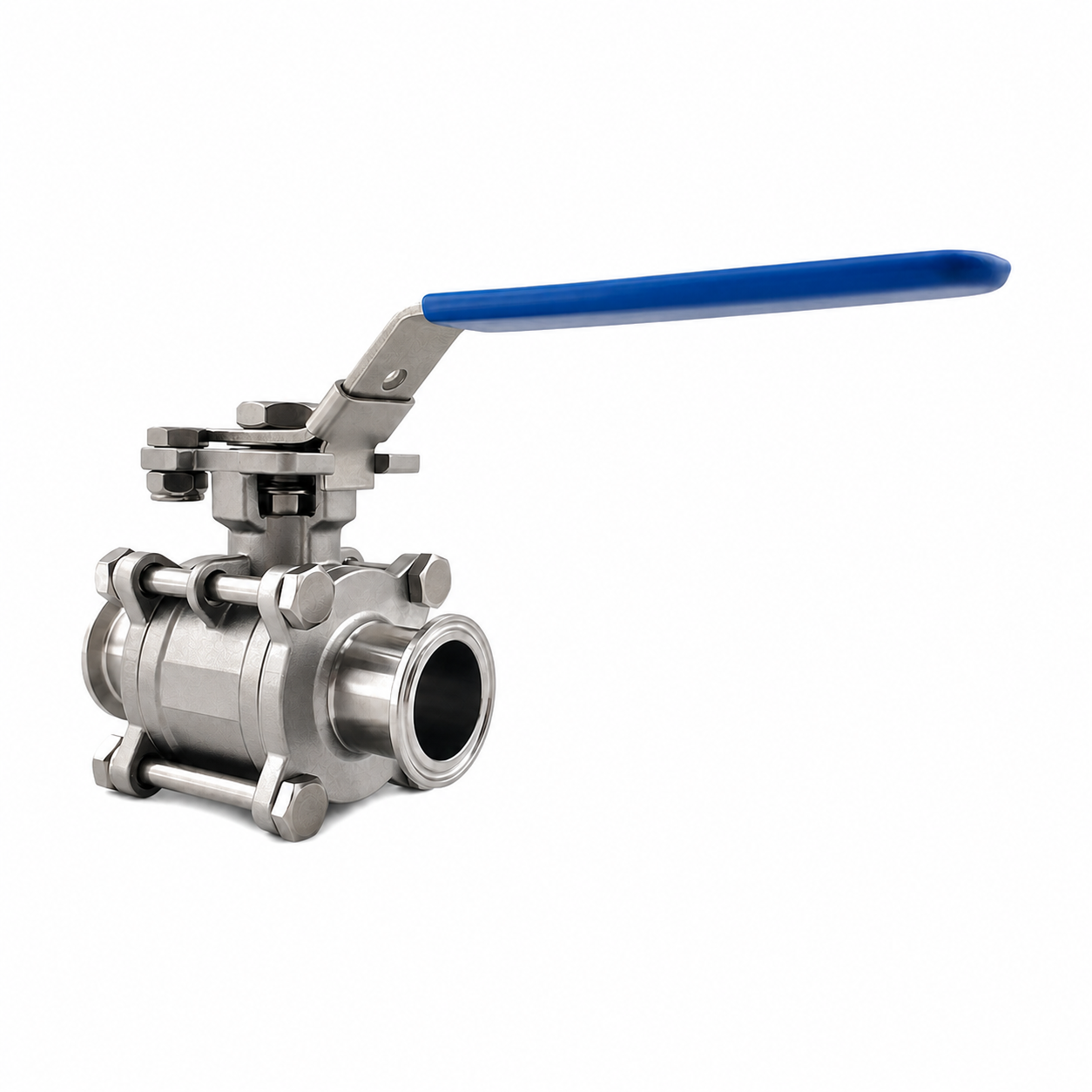

The Stainless Steel Quick Install Ball Valve is a sanitary quick-install ball valve for compact fluid-control pipelines. The stainless steel body, clamp-style ends, and lever handle provide fast installation and reliable manual shutoff in hygienic piping systems.
Main Parts Material
| Part | C | P | R |
|---|---|---|---|
| Body | WCB | ZG1Cr18Ni9Ti / CF8 | ZG1Cr18Ni12Mo2Ti / CF8M |
| Cap | WCB | ZG1Cr18Ni9Ti / CF8 | ZG1Cr18Ni12Mo2Ti / CF8M |
| Ball | 1Cr18Ni9Ti / 304 | 1Cr18Ni9Ti / 304 | 1Cr18Ni12Mo2Ti / 316 |
| Stem | 1Cr18Ni9Ti / 304 | 1Cr18Ni9Ti / 304 | 1Cr18Ni12Mo2Ti / 316 |
| Seal Ring | PTFE | PTFE | PTFE |
| Packing | PTFE | PTFE | PTFE |

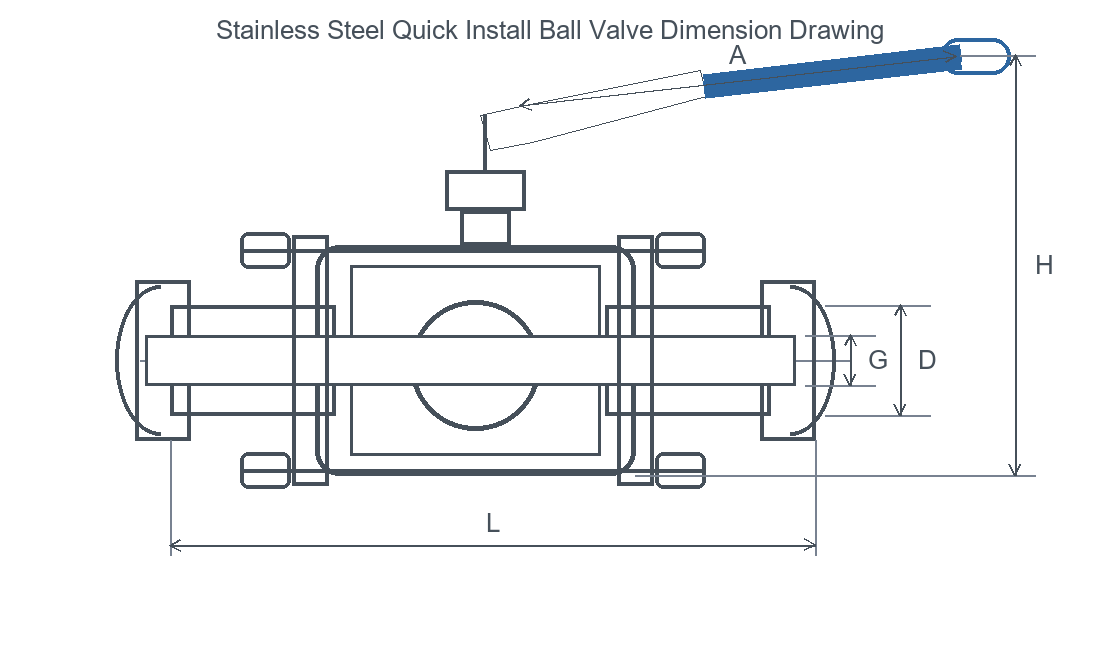

Main Dimensions and Weight
| DN | G | D | L | H | A | Weight (g) |
|---|---|---|---|---|---|---|
| 15 | 1/2" | 34 | 95 | 68 | 125 | 715 |
| 20 | 3/4" | 50.5 | 108 | 70 | 125 | 913 |
| 25 | 1" | 50.5 | 115 | 80 | 145 | 1109 |
| 32 | 1-1/4" | 50.5 | 125 | 84 | 145 | 1643 |
| 40 | 1-1/2" | 50.5 | 135 | 93 | 205 | 1907 |
| 50 | 2" | 64 | 150 | 100 | 205 | 2696 |
| 65 | 2-1/2" | 91 | 190 | 142 | 250 | 5000 |
| 80 | 3" | 106 | 220 | 155 | 250 |
