Specification
• Investment Casting Body, Stainless steel 304 or Stainless steel 316
• Thread standard: NPT, BSP, BSPT, DIN259/2999, Rc, Rp
• Working pressure: 200PSI
• Applicable temperature: -29°C~150°C(300°C)
• Applicable Medium: Water, oil, gas Etc

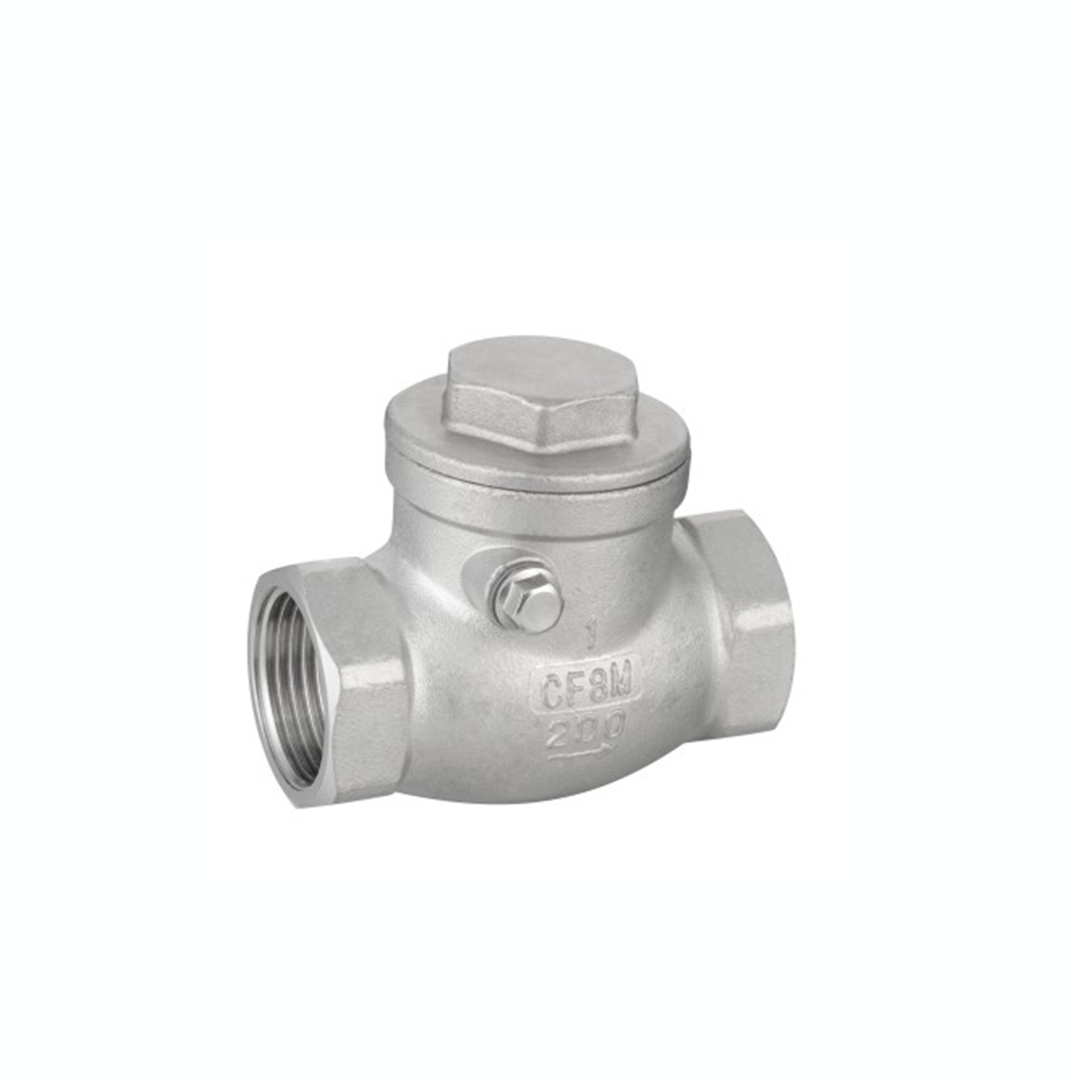

Swing Check Valve Dimension
| SIZE | d | L | H | |
| 1/2″ | DN15 | 15 | 59 | 42 |
| 3/4″ | DN20 | 20 | 75 | 48 |
| 1″ | DN25 | 25 | 85 | 52 |
| 1-1/4″ | DN32 | 32 | 102 | 60 |
| 1-1/2″ | DN40 | 40 | 115 | 64 |
| 2″ | DN50 | 50 | 138 | 72 |
| 2-1/2″ | DN65 | 63 | 165 | 95 |
