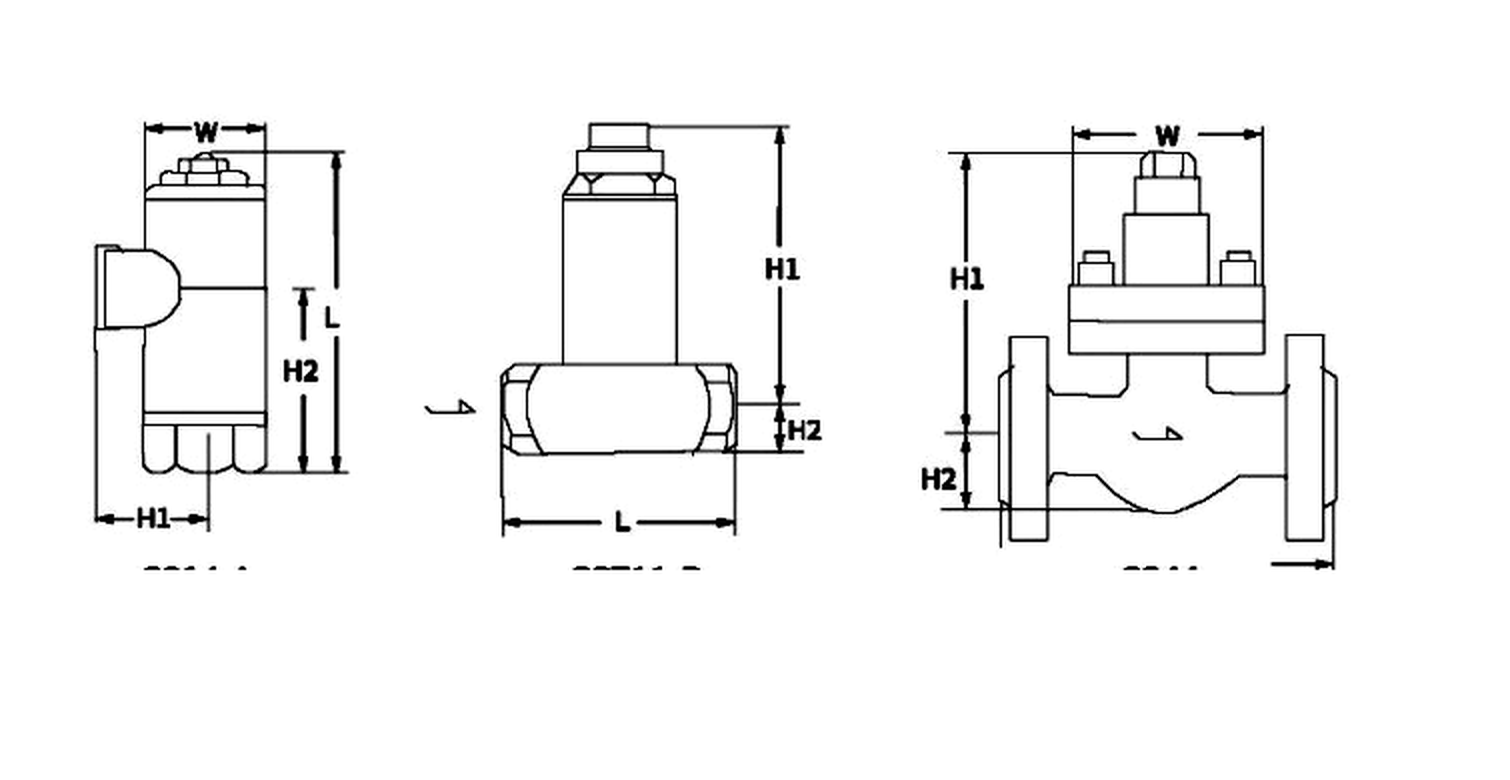

Thermostatic Bellows Steam Trap dimension drawing

Part Name	Body & Cover	Sensitive Element	Strainer
Material	WCB, Stainless Steel	Bellows	Stainless Steel

Type	Nominal Diameter DN	Connection	Working Pressure (MPa)	Max. Allowable Temperature (°C)	Overall Dimensions (mm)
Type	Nominal Diameter DN	Connection	Working Pressure (MPa)	Max. Allowable Temperature (°C)	L1	H1	H2	W
Type A	15~25	Threaded	0.01~1.6	220	145	40	85	40
Type A	32~50	Threaded	0.01~1.6	220	175	40	100	74
Type B	15~20, 25	Flanged	0.01~1.6	220	150, 160	150	53	55
Type B	32~50	Flanged	0.01~1.6	220	200, 220, 230	160	75	120
Type B	65~80, 100	Flanged	0.01~1.6	220	270, 280	180	100	150
Type B	125~150	Flanged	0.01~1.6	220	350	210	130	170
Type C	15~25	Threaded	0.01~1.6	220	150	40	75	45
Type C	32~50	Threaded	0.01~1.6	220	190	55	100	75
Type D	15~25, 32~50	Threaded	0.01~1.6	220	95, 120	110	35	53
Type E	15~20, 25, 32~50	Flanged	0.01~2.0	250	150, 160, 230	180	70	40, 75
Type F	65~80, 100, 125~150	Flanged	0.01~2.0	250	250, 310, 350	205	100	170

FLUID VALVE

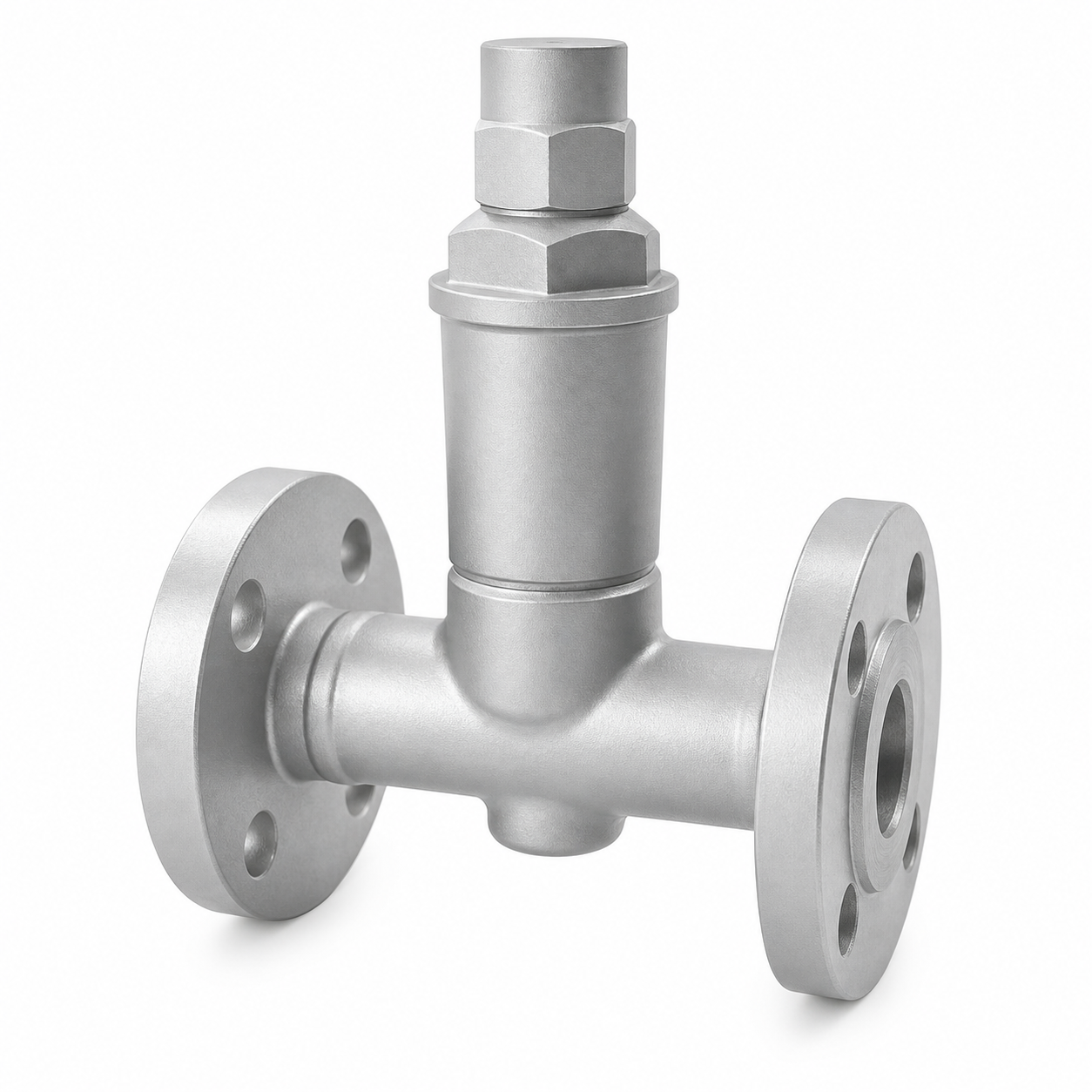

Thermostatic Bellows Steam Trap
