Product Details

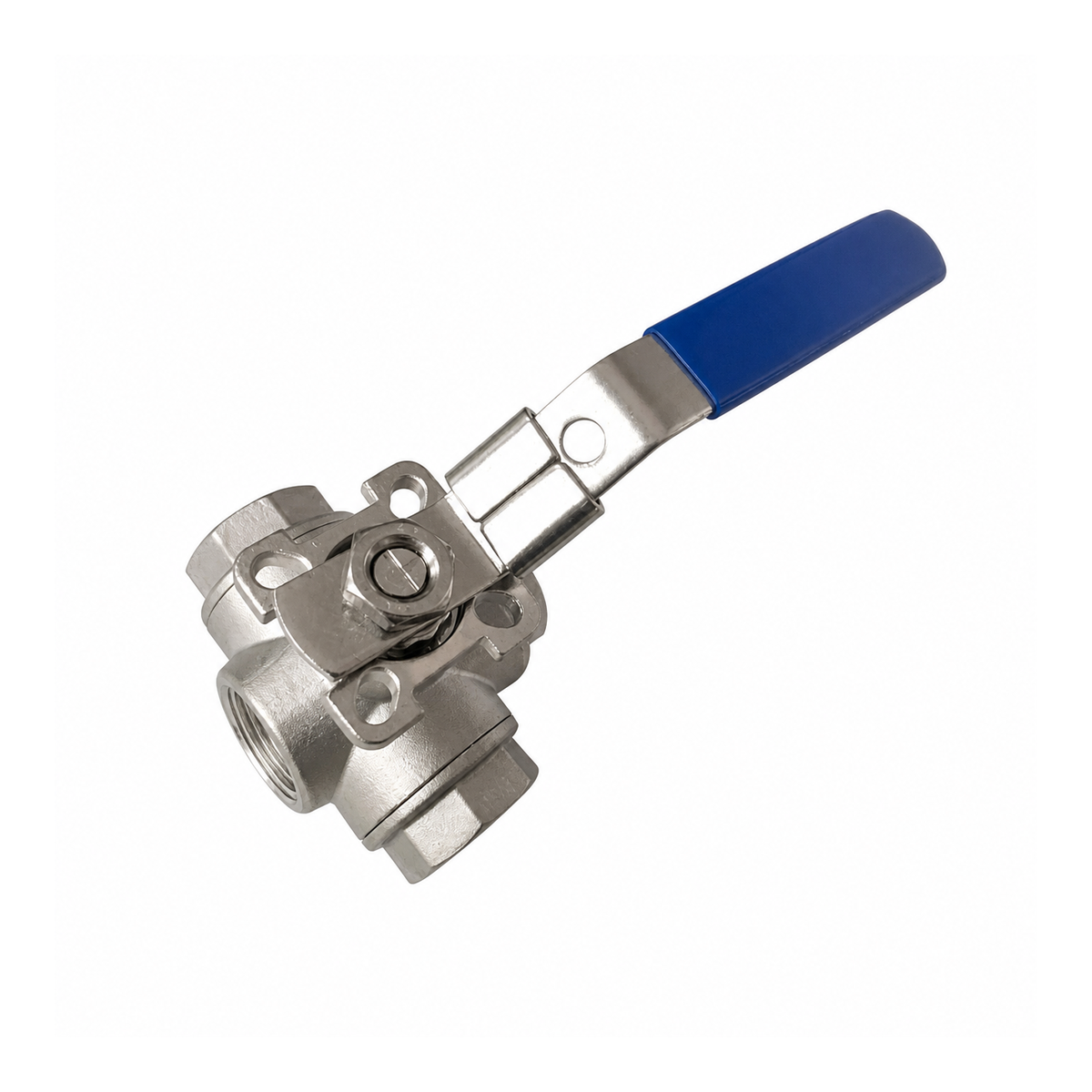

The Stainless Steel Three Way Ball Valve is a manual diverter valve for compact fluid-control pipelines. The stainless steel body and three-port design support flow switching or distribution in small industrial piping systems.
Main Parts Material
| Part | C | P | R |
|---|---|---|---|
| Body | WCB | ZG1Cr18Ni9Ti / CF8 | ZG1Cr18Ni12Mo2Ti / CF8M |
| Cap | WCB | ZG1Cr18Ni9Ti / CF8 | ZG1Cr18Ni12Mo2Ti / CF8M |
| Ball | 1Cr18Ni9Ti / 304 | 1Cr18Ni9Ti / 304 | 1Cr18Ni12Mo2Ti / 316 |
| Stem | 1Cr18Ni9Ti / 304 | 1Cr18Ni9Ti / 304 | 1Cr18Ni12Mo2Ti / 316 |
| Seal Ring | PTFE | PTFE | PTFE |
| Packing | PTFE | PTFE | PTFE |
Main Dimensions and Weight
| DN | G | L | d | H | W | Weight (g) |
|---|---|---|---|---|---|---|
| 6 | 1/4" | 70 | 12 | 58 | 110 | |
| 10 | 3/8" | 70 | 12 | 58 | 110 | |
| 15 | 1/2" | 73 | 12 | 58 | 110 | 496 |
| 20 | 3/4" | 80 | 14 | 60 | 120 | 639 |
| 25 | 1" | 87 | 18 | 70 | 140 | 860 |
| 32 | 1-1/4" | 113 | 25 | 82 | 140 | 1856 |
| 40 | 1-1/2" | 130 | 32 | 95 | 180 | 2954 |
| 50 | 2" | 144 | 38 | 100 | 200 | 3900 |
