Product Details

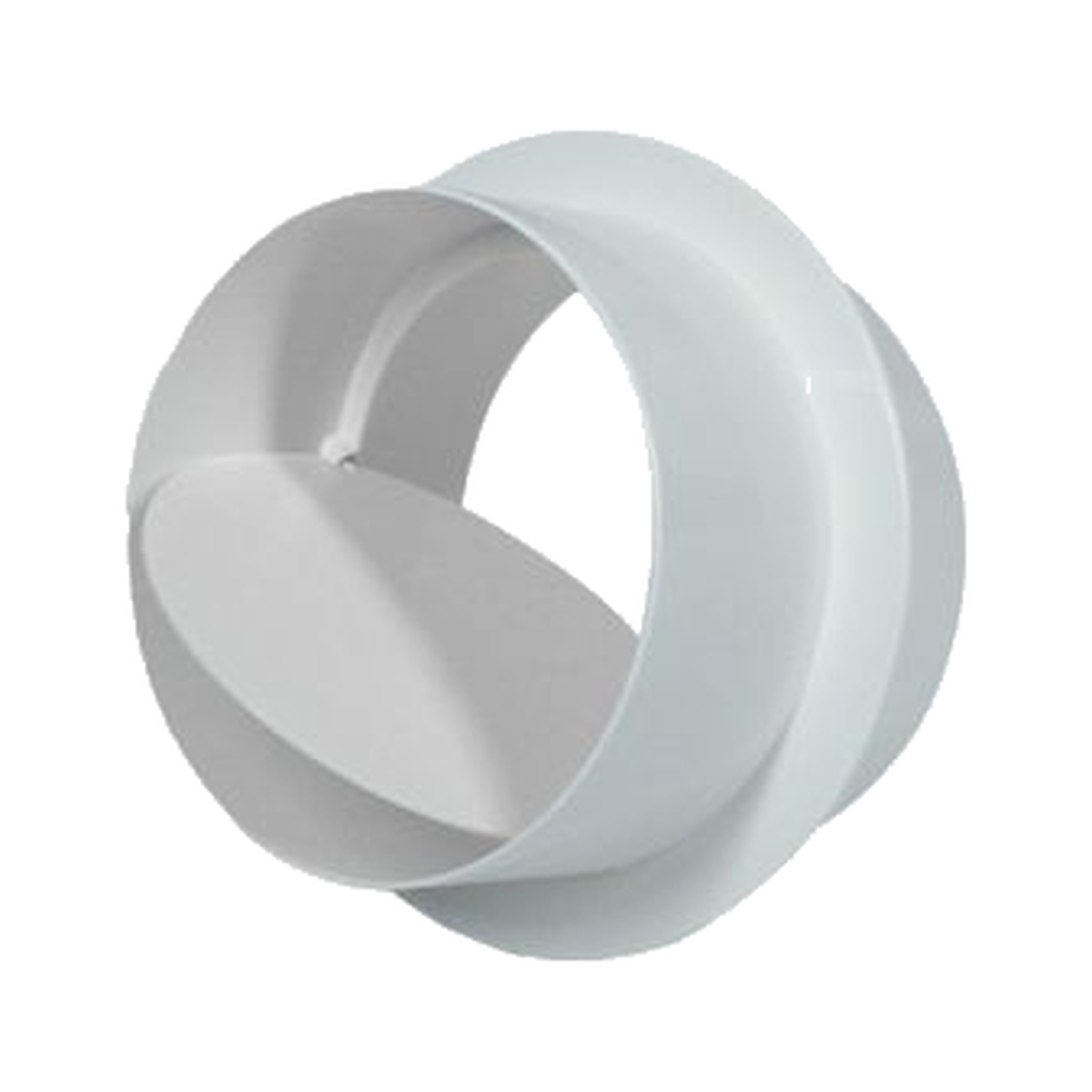

The UPVC Check Valve is a plastic non-return valve for ventilation and compatible fluid-control lines. Its flap-style internal structure helps reduce reverse flow while keeping the assembly lightweight, corrosion resistant, and suitable for PVC/UPVC piping systems.

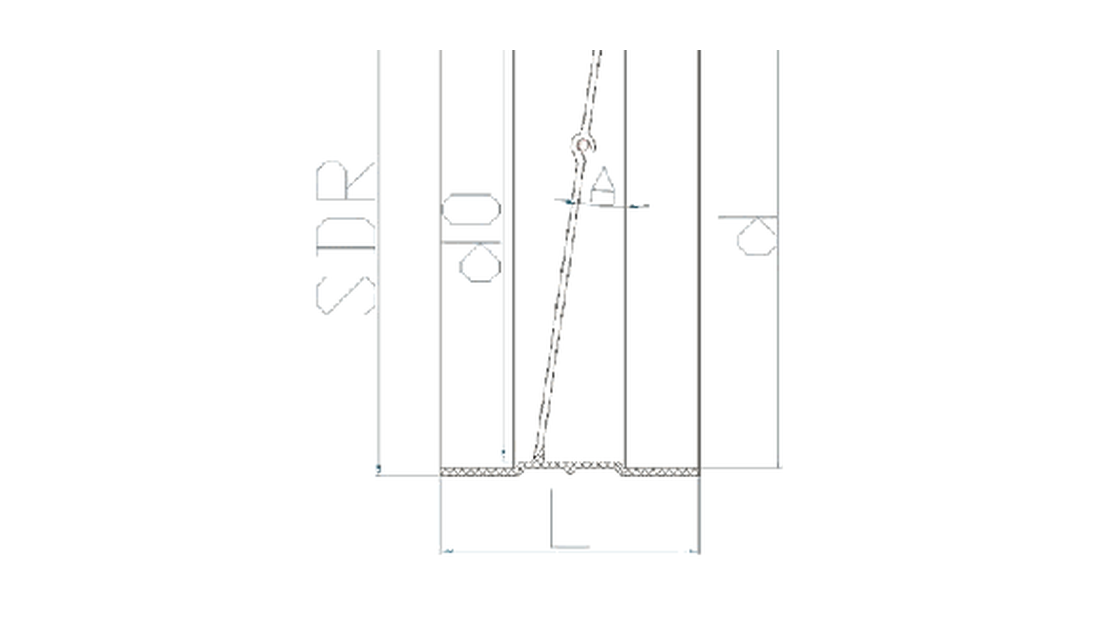

Dimensions (mm)
| Size(d) | d0 | I | L | SDR |
|---|---|---|---|---|
| 160 | 152 | 32 | 150 | 50 |
| 200 | 192 | 35 | 120 | 60 |
| 250 | 241 | 40 | 140 | 70 |
| 315 | 303 | 50 | 175 | 70 |
