Ordering code

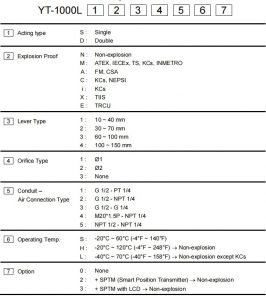

YT-1000-L Positioner

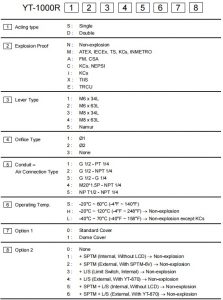

YT-1000-R Positioner

Specification

Model	YT-1000		YT-1050
Housing Material	Aluminum		Stainless steel 316
Motion Type	Linear	Rotary	Linear	Rotary
Acting Type	Single / Double
Input Signal	4~20mA DC
Supply Pressure	0.14~0.7 MPa (1.4~7 bar)
Stroke	10~150 mm	0~90°	10~150 mm	0~90°
Impedance	Max. 250 ± 15Ω
Air Connection	PT(G or NPT) 1/4		NPT 1/4
Gauge Connection	PT(or NPT) 1/8		NPT 1/8
Conduit Entry	G(PF) 1/2 or NPT 1/2 or M20*1.5P		G(PF) 1/2
Ingress Protection	IP66, Type 4X
Explosion Proof	1. Non-explosion
	2. Ex db mb IIB T5 Gb (ATEX, IECEx, TS) 3. Ex dmb IIC T5 (KCs) 4. Ex ia IIB T6 Gb (KCs) 5. Ex d mb IIC T6 Gb (NEPSI) 6. Ex dmb IIB T5/T4 (KCs) 7. Ex dmb IIB T5 (TIIS) 8. Ex d m IIB T5 (FM, CSA) 9. 1Ex d mb IIB T5 Gb X (TRCU) 10. Ex db mb IIB T5 Gb (INMETRO)		2. Ex db mb IIB T5 Gb (ATEX, IECEx, KCs) 3. 1Ex d mb IIB T5 Gb X (TRCU) 4. Ex db mb IIB T5 Gb (INMETRO)
