Ordering Code
Specification
| Model | 2000-S Series |
| Medium temperature | -20℃~+180℃ |
| Ambient temperature | -20℃~+60℃ |
| Nominal pressure | 16 Bar |
| Control gas | neutral gas or air |
| Air control pressure | 3 Bar~8 Bar |
| Seal material | NBR/PTFE |

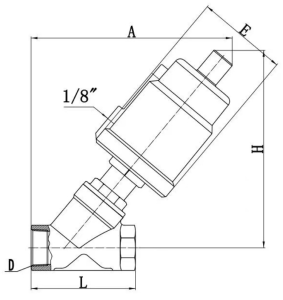

SS Head Angle Seat Valve Dimension
| MODEL | ACTUATOR | L | D | A | H | E |
| 2000-S-15 | Ø50 | 68 | 1/2″ | 133 | 126 | 62 |
| 2000-S-20 | Ø50 | 75 | 3/4″ | 137 | 131 | 62 |
| 2000-S-25 | Ø50 | 90 | 1″ | 155 | 148 | 62 |
| 2000-S-25B | Ø63 | 90 | 1″ | 170 | 165 | 62 |
| 2000-S-32 | Ø63 | 110 | 1 1/4″ | 180 | 175 | 78 |
| 2000-S-40 | Ø63 | 115 | 1 1/2″ | 190 | 178 | 78 |
| 2000-S-50 | Ø63 | 135 | 2″ | 205 | 190 | 78 |
| 2000-S-50B | Ø80 | 135 | 2″ | 235 | 210 | 96 |
| 2000-S-65 | Ø80 | 185 | 2 1/2″ | 252 | 280 | 96 |
| 2000-S-80 | Ø100 | 210 | 3″ | 320 | 295 | 117 |
