Ordering Code
Specification
| Model | 2P025-06 | 2P025-08 |
| Working Medium | Air, Water, Oil, Gas | |
| Operation | Direct Acting | |
| Type | Normally closed | |
| Orifice | 2.5 mm | |
| CV Value | 0.23 | |
| Port Size | 1/8″ | 1/4″ |
| Operation Fluid Viscosity | Below 20 CST | |
| Working-pressure | 0~0.7 MPa | |
| Max. Test Pressure | 1.0 MPa | |
| Max. Ambient Temperature | (-10-80℃） | |
| Operating Voltage Tolerance | ±10% | |
| Material of Body | Engineering Plastic | |
| Material of Oil seal | NBR or VITON | |

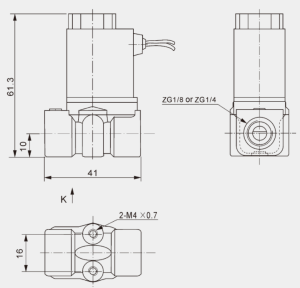

Dimension
