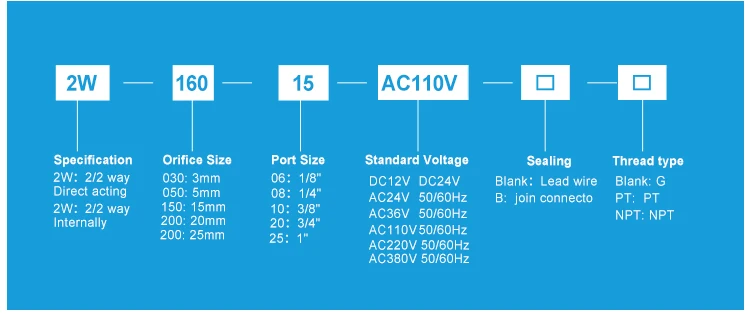

Ordering Code
Product Specification
|
Model
|
2W025-06(08)
|
2W040-10
|
2W160-15
|
2W200-20
|
2W350-35
|
2W500-50
|
||
|
Working Medium
|
Air,water,Oil,Gas
|
|||||||
|
motion pattern
|
direct drive type
|
|||||||
|
Type
|
Nomal close type
|
|||||||
|
Aperture Of flow Rate
|
2.5
|
4
|
16
|
20
|
35
|
50
|
||
|
CV value
|
0.23
|
0.6
|
4.8
|
7.6
|
24
|
48
|
||
|
Joint pipe Bore
|
1/8″ /1/4″
|
3/8″
|
1/2″
|
3/4″
|
1¼”
|
2″
|
||
|
Operation Fluid Viscosity
|
20 CST(below)
|
|||||||
|
Working-Preussure
|
0~7
|
0~10
|
water：0~5 Air：0~7 oil：0~5 Gas：0~7
|
|||||
|
Max.pressure Resistance
|
10
|
15
|
10.5
|
|||||
|
Operating Temperature Range
|
-5~80
|
|||||||
|
Voltage Range
|
±10%
|
|||||||
|
Material Of Body
|
Brass
|
|||||||
|
Material Of Oil seal
|
NBR、EPDM、VITON
|
|||||||
