Ordering code
Specification
| Model | 3L110-06 | 3L210-06 | 3L210-08 | 3L310-08 | 3L310-10 |
| Fluid | Air(to be filtered by 40μm filter element) | ||||
| Operating | Manual control direct acting type | ||||
| Port size[Note1] | 1/8“ | 1/4“ | 3/8“ | ||
| Orifice size(Cv) [Note3] |
10.2mm² (Cv=0.6) |
3L210-08：17.0mm² (Cv=1.0) |
3L310-10：28.0mm² (Cv=1.65) |
||
| Valve type | 3/2 Way | ||||
| Lubrication[Note2] | Not required | ||||
| Pressure range | 0~1.0 MPa(0~145psi) | ||||
| Proof pressure | 1.5 MPa(215psi) | ||||
| Temperature | -20~70℃ | ||||
| Material body | Aluminium alloy | ||||

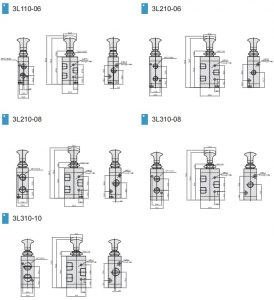

3L Dimension
