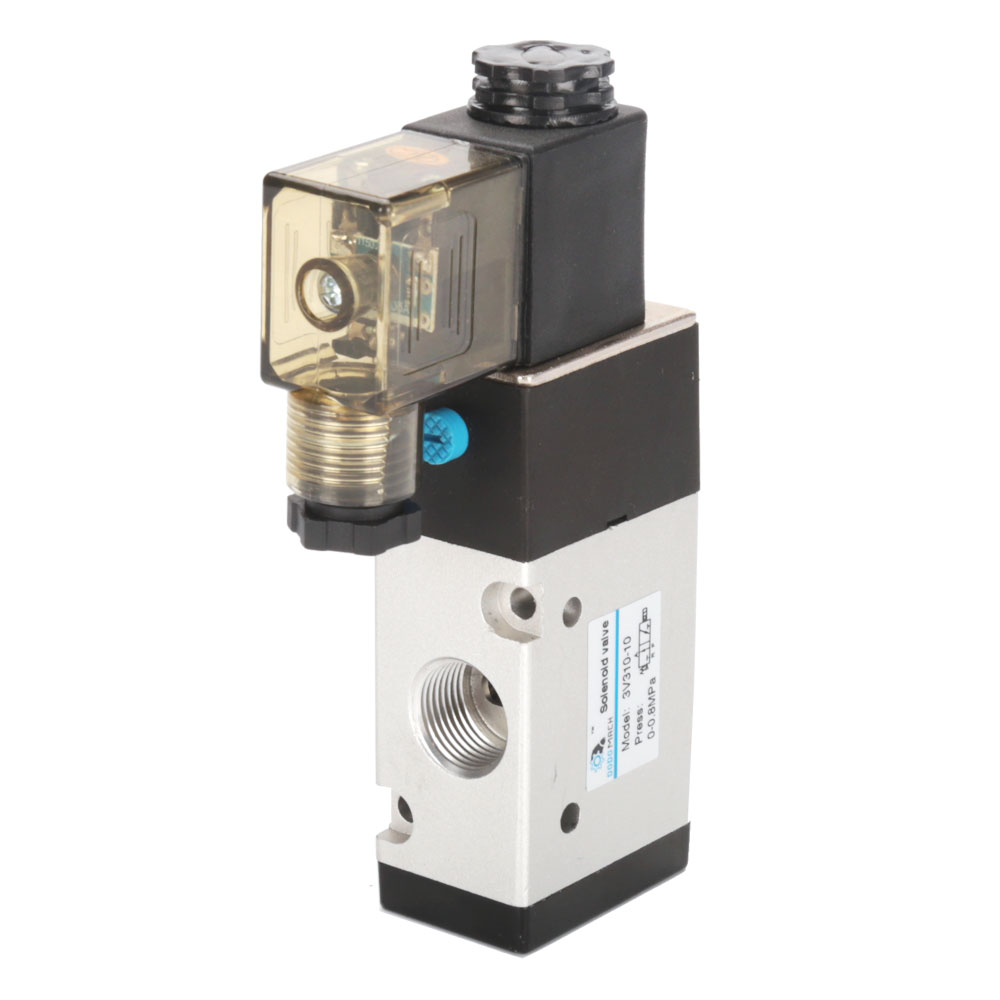

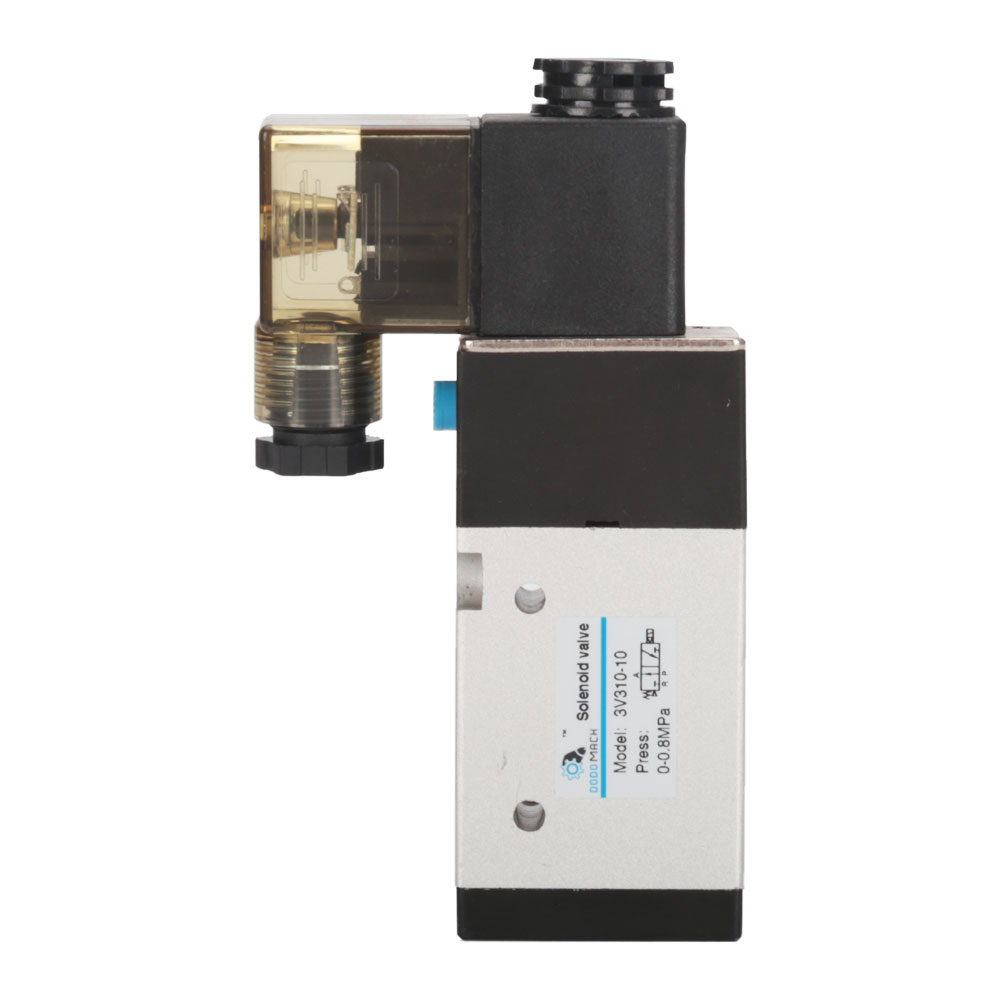

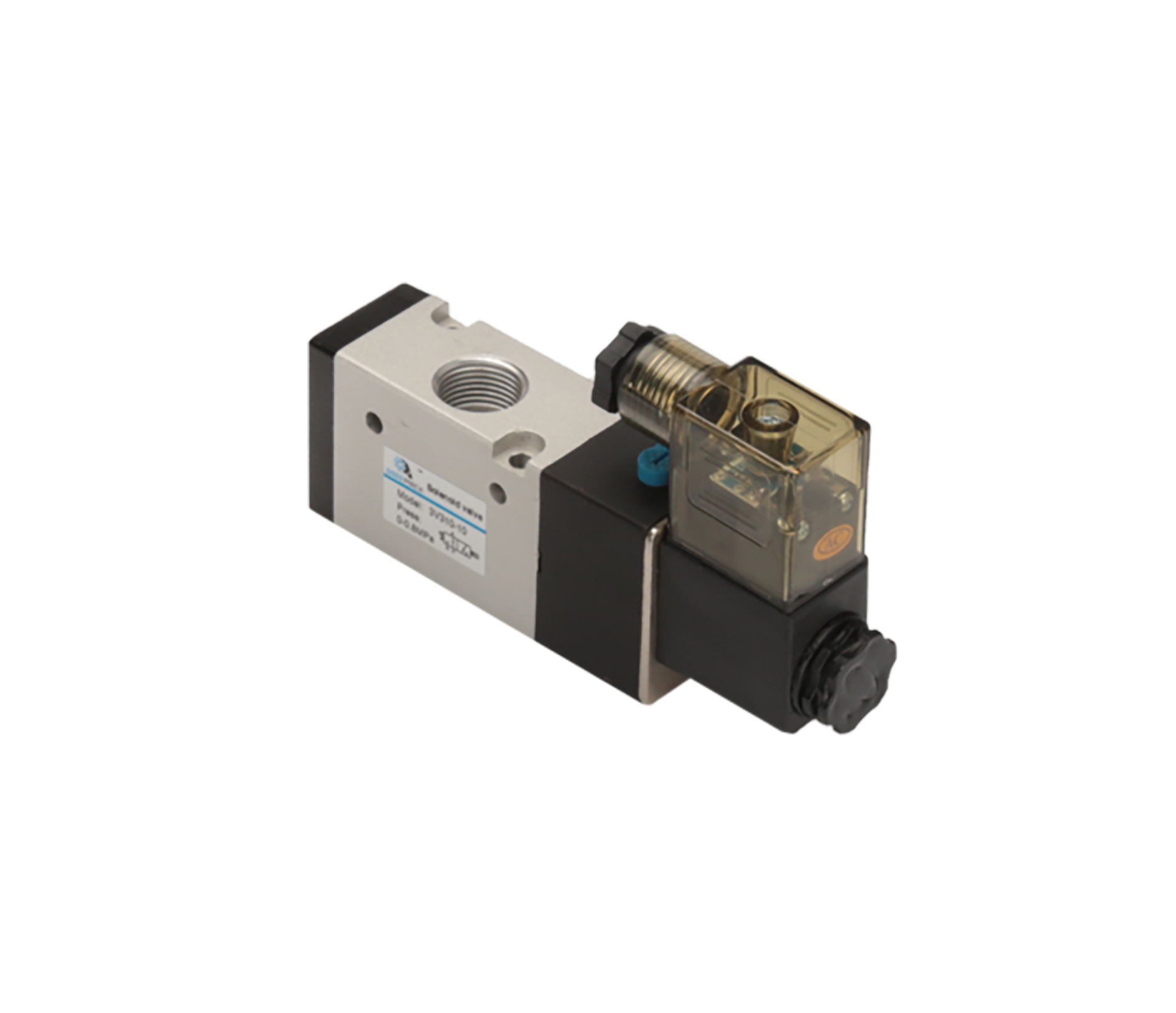

3V300 Series is a pneumatic directional solenoid valve with 3 ports & 2 positions. 1/4″ and 3/8″ port sizes are available. G, PT and NPT threads all can be customized.
Product feature:
1. Structure in sliding column mode: good tightness and sensitive reaction.
2. Double control solenoid valves have memory function.
3. Internal hole adopts special processing technology which has lttle attrition friction, low start pressure and long service life.
4. No need to add oil for lubrication.
5. Affiliated manual devices are equipped to facilitate installation and debugging.
6. Several standard voltage grades are optional.
7. Integrate with the manifold to save installation space.
Ordering Code
Specification
| Model | 3V310-08 | 3V320-08 | 3V310-10 | 3V320-10 |
| Fluid | Air(to be filtered by 40μm filter element) | |||
| Acting | Internal pilot | |||
| Port size | In=Out=1/4″ | In=Out=3/8″ | ||
| Orifice size | 3V310-10,3V320-10:28.0mm²(Cv=1.65) | |||
| Valve type | 3 port 2 position | |||
| Lubrication | Not required | |||
| Operating pressure | 0.15～0.8MPa(21～114psi) | |||
| Proof pressure | 1.2MPa(175psi) | |||
| Temperature | -20～70℃ | |||
| Material of body | Aluminum alloy | |||

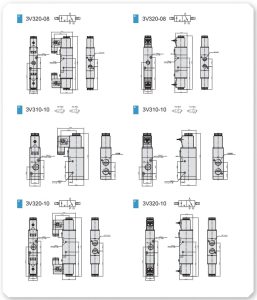

3V300 Dimension
