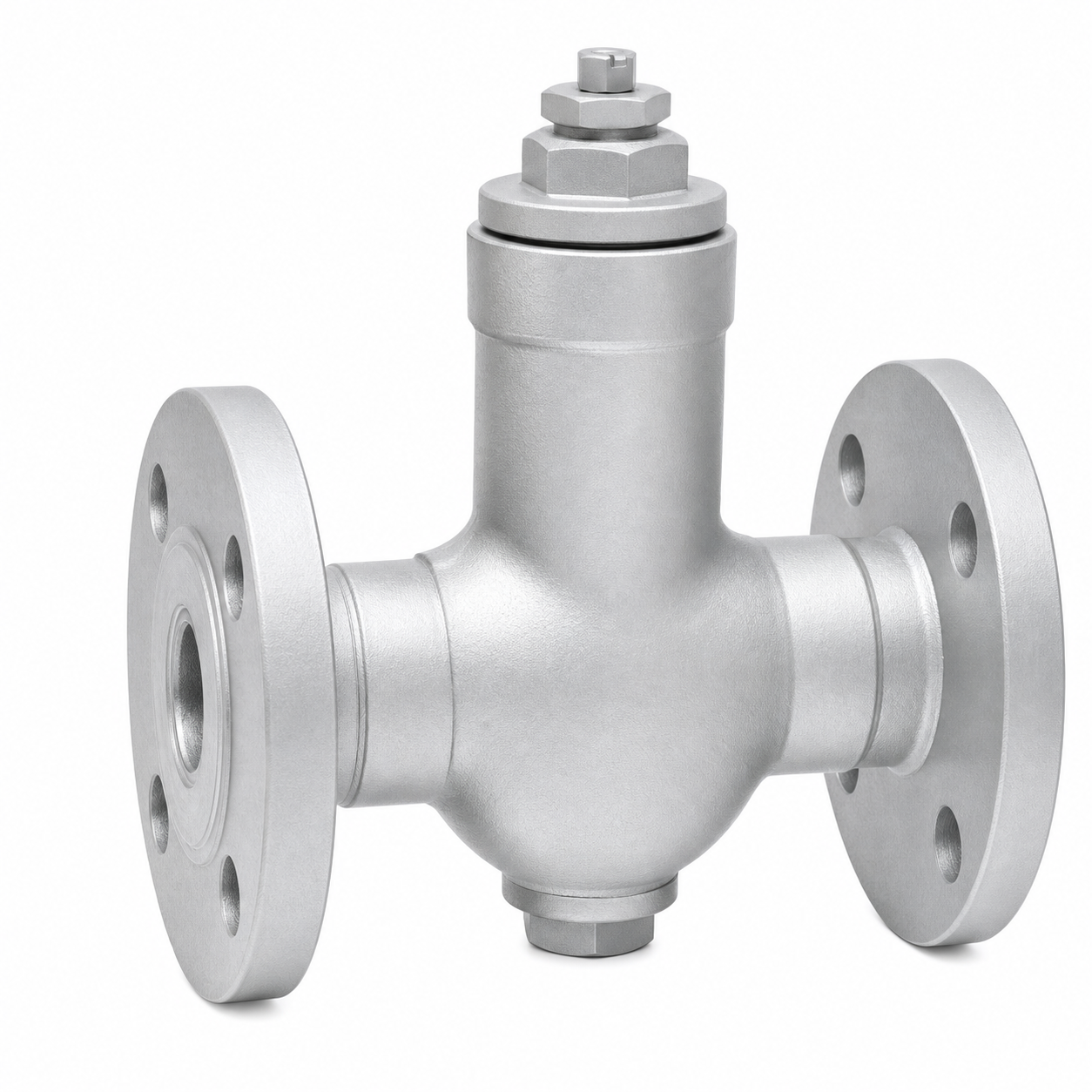

Adjustable Thermostatic Steam Trap
Main Parts Material
| Part Name |
Body & Cover |
Thermostatic Element |
Strainer |
| Material |
Carbon Steel |
Thermosensitive Element |
Stainless Steel |
Technical Parameters
| Type |
Nominal Diameter DN |
Connection |
Max. Allowable Temperature (°C) |
Body Material |

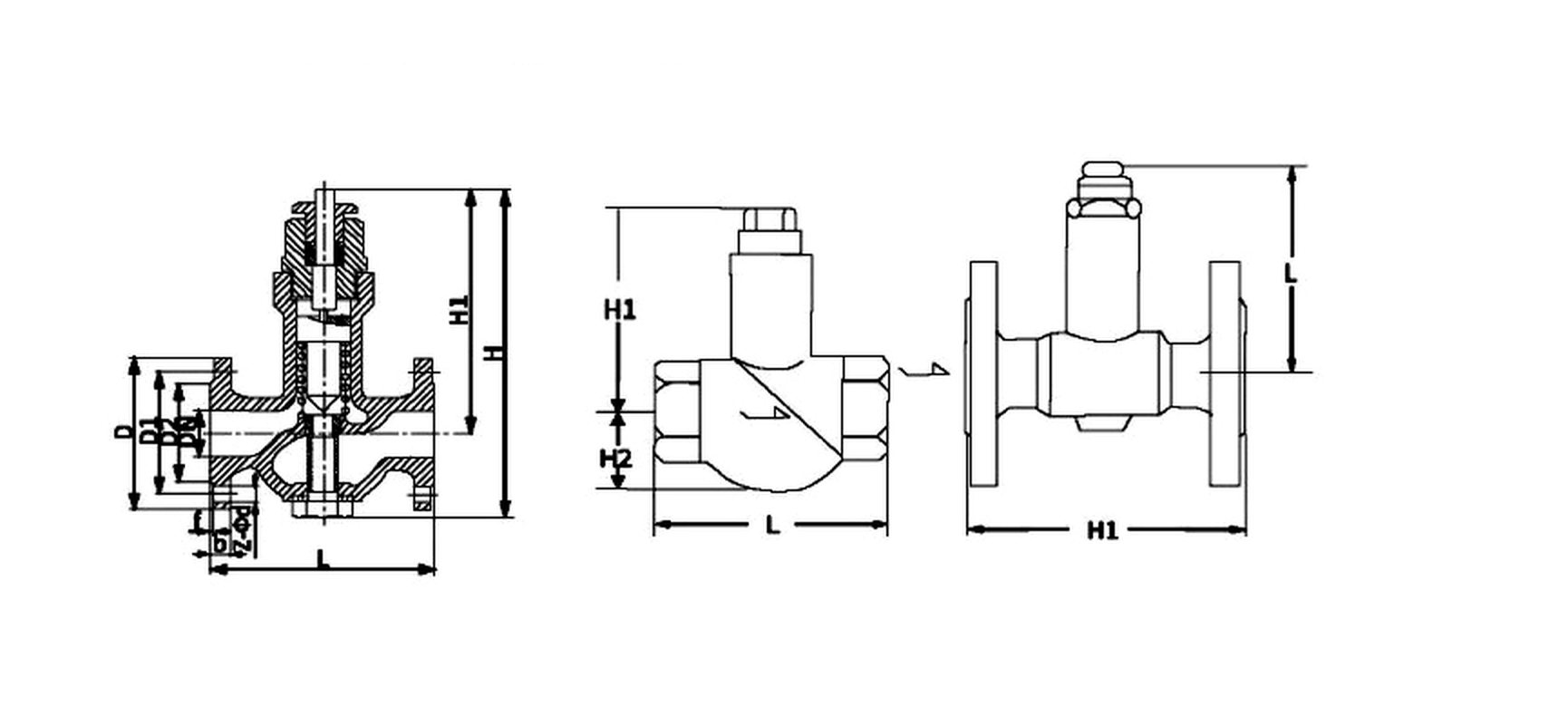

Overall Dimensions (mm) |
| L |
H1 |
H2 |
W |
| Type A |
15 |
Threaded 1/2" |
220 |
WCB |
95 |
61.5 |
79 |
– |
| Type A |
20 |
Threaded 3/4" |
220 |
WCB |
95 |
61.5 |
79 |
– |
| Type A |
25 |
Threaded 1" |
220 |
WCB |
100 |
61.5 |
79 |
– |
| Type B |
15~20 |
Threaded 1/2"~3/4" |
220 |
WCB |
95 |
110 |
30 |
42 |
| Type B |
25 |
Threaded 1" |
220 |
WCB |
100 |
110 |
33 |
46 |
| Type C |
15 |
Flanged |
220 |
WCB |
150 |
24.5 |
165 |
42 |
| Type C |
20 |
Flanged |
220 |
WCB |
150 |
24.5 |
165 |
42 |
| Type C |
25 |
Flanged |
220 |
WCB |
160 |
24.5 |
165 |
46 |
| Type C |
32 |
Flanged |
220 |
WCB |
200 |
143 |
31 |
61 |
| Type C |
40 |
Flanged |
220 |
WCB |
220 |
147 |
35 |
61 |
| Type C |
50 |
Flanged |
220 |
WCB |
230 |
151 |
39 |
61 |
