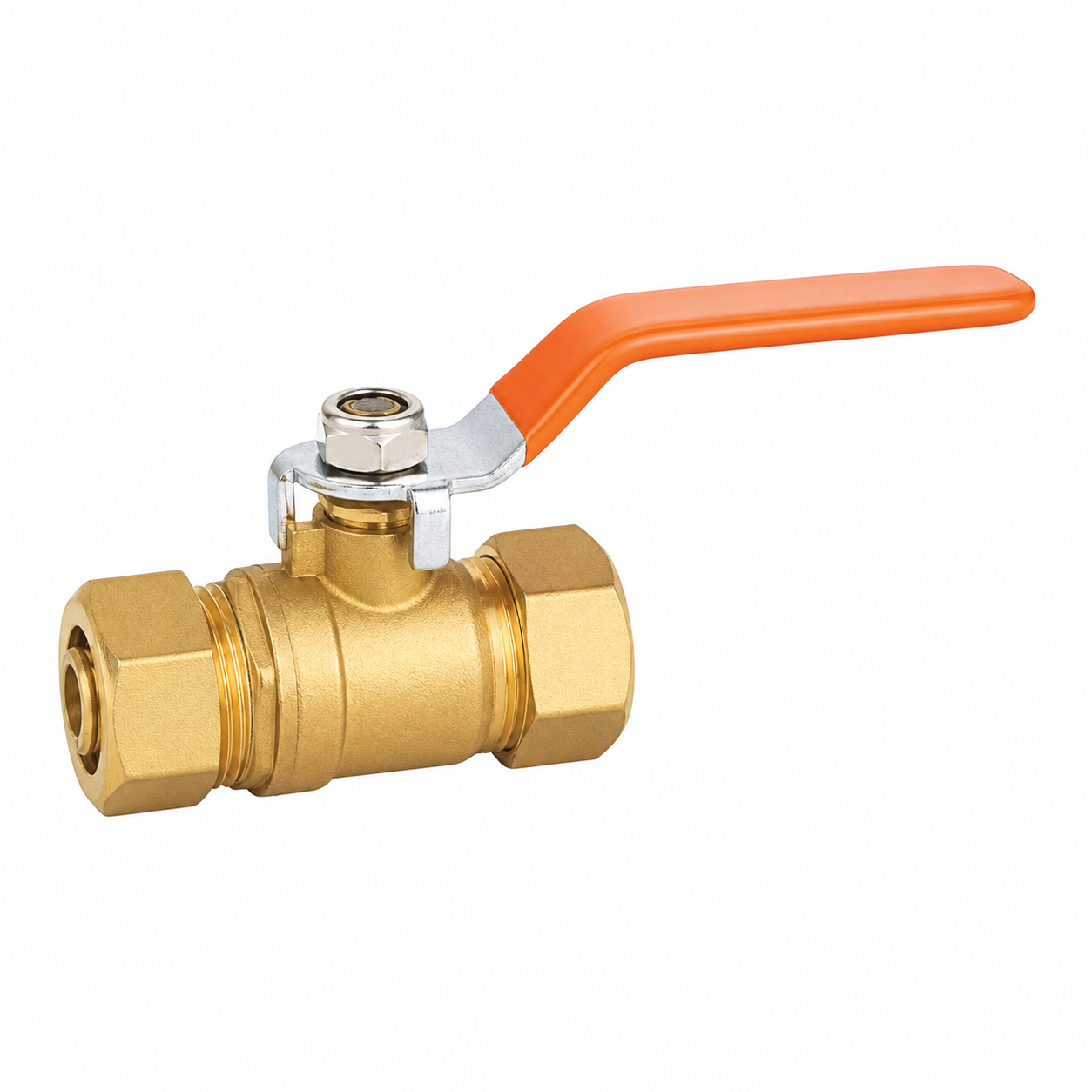

Product Details
| Product Type | Aluminum plastic pipe brass ball valve |
|---|---|
| Connection | Double cassette connection |
| Handle Type | Long handle |
| Application | Water, gas, and oil service |
Technical Data
| Normal Pressure | 1.6 MPa |
|---|---|
| Working Medium | Water, gas, oil |
| Working Temperature | -20°C ≤ T ≤ 110°C |
| Thread Standard | ISO 228 |

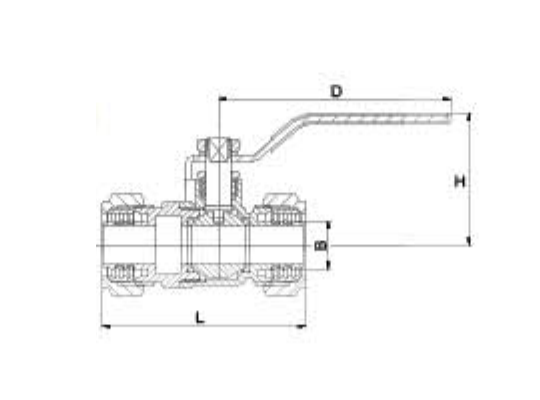

Dimensions
| DN | L | B | H | D |
|---|---|---|---|---|
| 16 | 60 | 8 | 40 | 75 |
| 18 | 63 | 10 | 43 | 75 |
| 20 | 65 | 12 | 43 | 75 |
| 25 | 74 | 15 | 48 | 92 |
| 32 | 81 | 20 | 56 | 118 |
| 40 | 119 | 30 | 68 | 120 |
| 50 | 119 | 38 | 82 | 135 |
| 63 | 139 | 45 | 100 | 143 |
